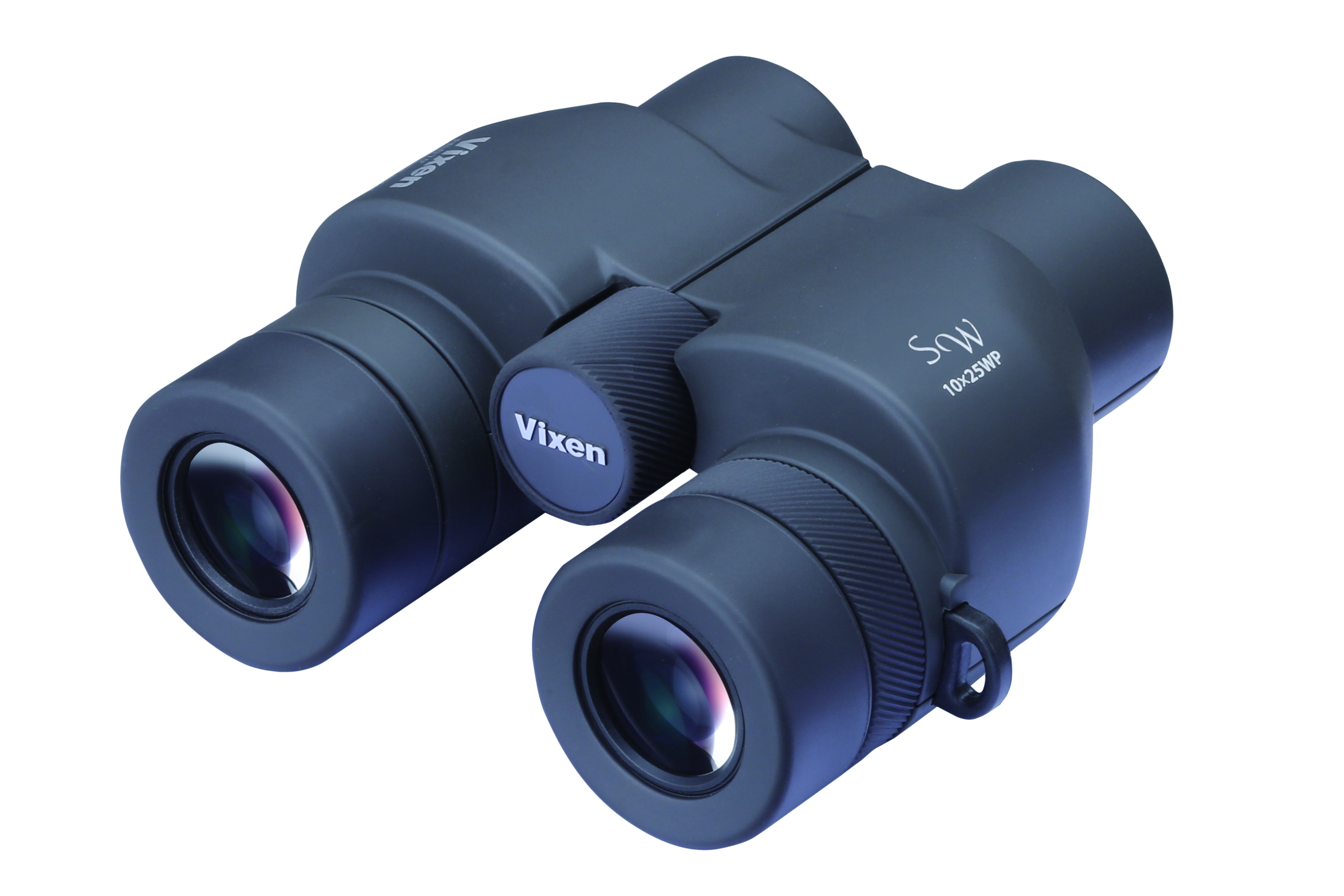

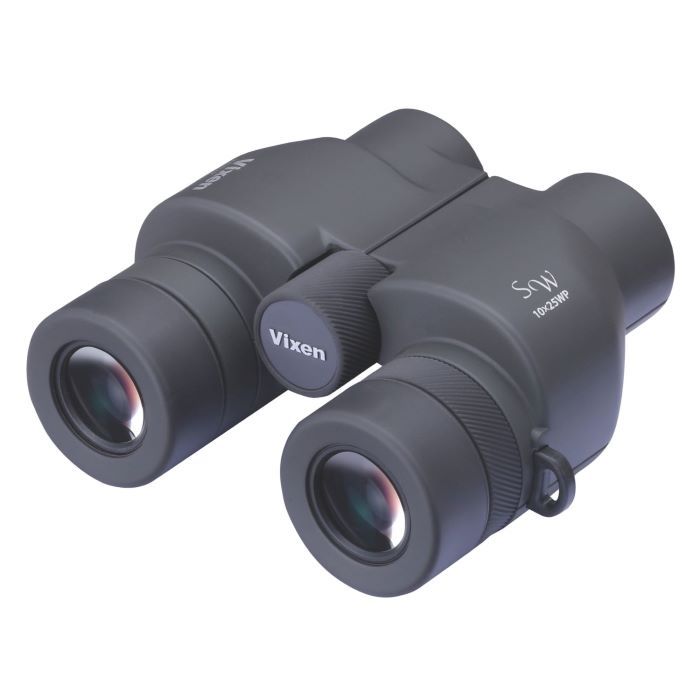

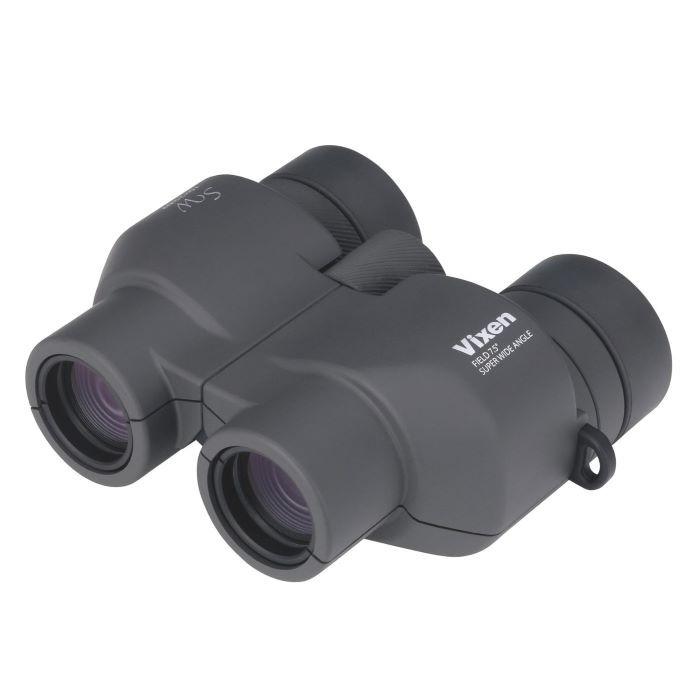

Vixen Binoculars SW10×25WP
loading
Suggested retail price: Contact local dealer
- JAN
- 4955295135486
A one-of-a-kind, experience impression with super-wide-angle and long eye relief!
Previously, super-wide-angle binoculars had short eye relief (the distance between the eye and the lens), which made them less comfortable to use compared to standard binoculars. To make super-wide-angle viewing further comfortable, the SW 10×25 has been optically engineered to combine a super-wide field of view with long eye relief. When you look through the SW 10×25, you’ll be immersed in a lifelike experience, as if the stage or performance is happening right before your eyes at a theater or concert. Viewing at the ultra-wide angle makes it ideal for concerts, operas, musicals, and many occasions. Its waterproof design also ensures reliable use outdoors, whether at festivals or other events. Experience a truly unique and emotional view that’s your own with the SW10x25 super-wide-angle binoculars.
Vixen Binoculars SW10×25WP Description
-
Long Eye-relief for Comfortable Super-wide Field of View
Conventional Super-wide-angle binoculars have disadvantages as *1) Short eye relief *2) difficult to look through, especially for glass-wearers. The SW 10×25 has a 17.3mm long eye relief while maintaining a super-wide-angle view at 75 degrees by shortening the optical distance between the eyepiece and the prism. The distinctive wide field of view enables you to see not only your target but also its surroundings at a glance, making it ideal for concerts, operas, musicals, and other events.

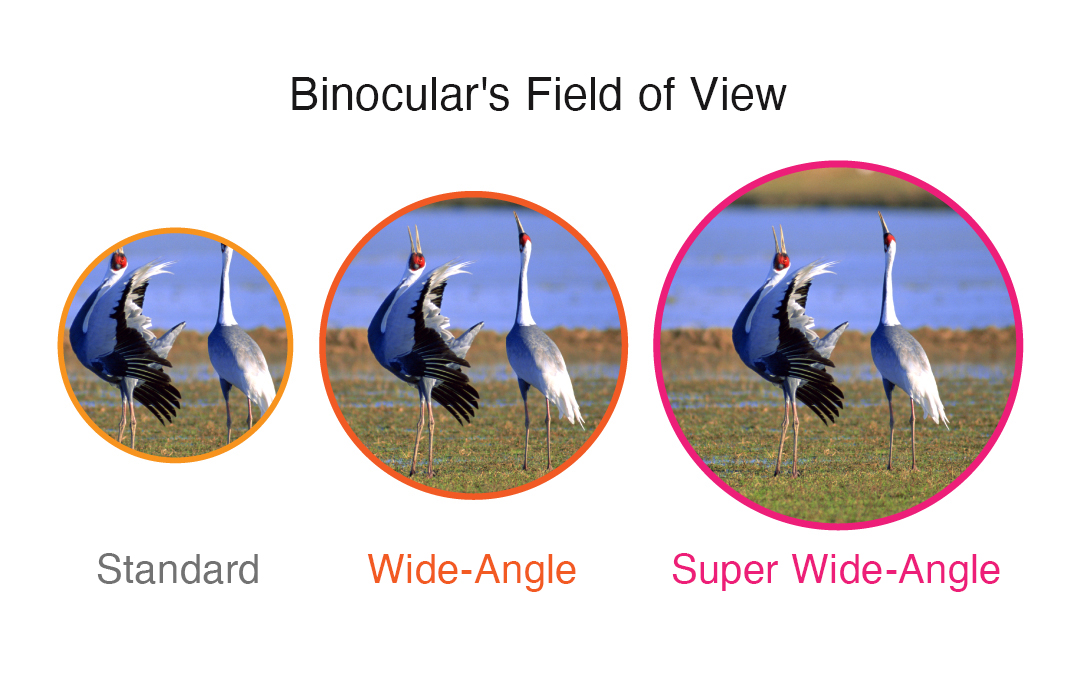

*1) The apparent field of view is the width of the field of view when looking through binoculars, expressed as an angle (number). A field of view at 65 degrees or more is defined as a wide angle, and 75°or more is defined as a super-wide-angle (in the old JIS standard: B7121:1993). *2) The distance from the eyepiece surface to the eye is called the "eye relief". A long eye relief of 15mm or more makes it easier to see the field of view of the binoculars even when you move your eye away from the lens. -

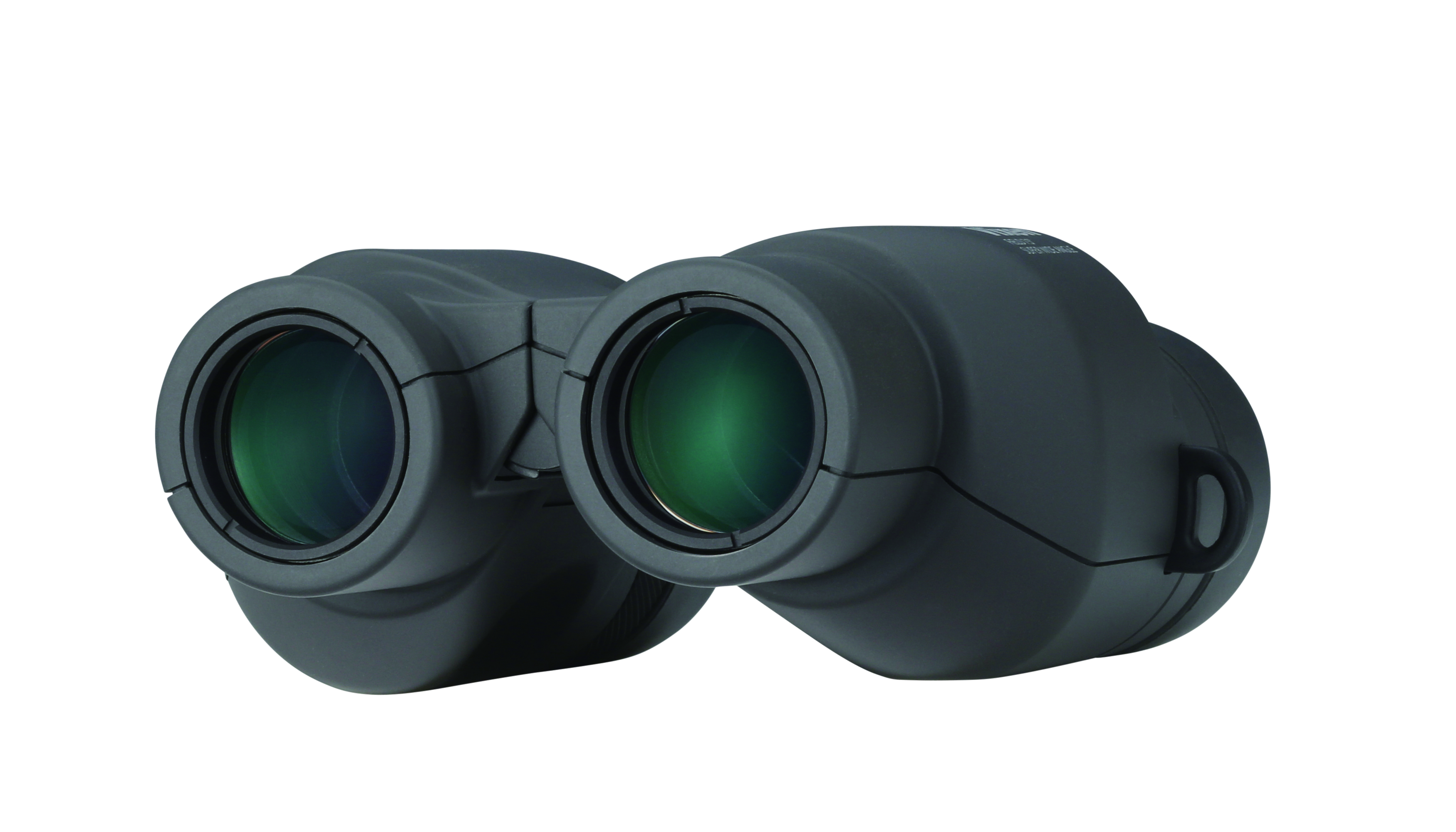

Perfect Full Multi-Coated (PFM) for Bright, Clear Field of View
The SW series binoculars are fully multi-coated (PFM), with three or more layers of special anti-reflection coatings applied to all optical surfaces, including the objective lenses, eyepiece lenses, and prisms.
This reduces contrast and light loss, delivering an exceptionally bright and crystal-clear field of view by effectively suppressing reflections on the lens surfaces. -
Thorough Measures against Stray Light
The SW series has aperture stops to block stray light, even in areas where they are not typically considered necessary. Additionally, the interior is matte-finished to thoroughly eliminate internal reflections, delivering a clear field of view with ghosting minimized to a high degree, even with an Super-wide-angle.
* Ghosting: Light that is reflected in a complex manner and appears in the field of view. -

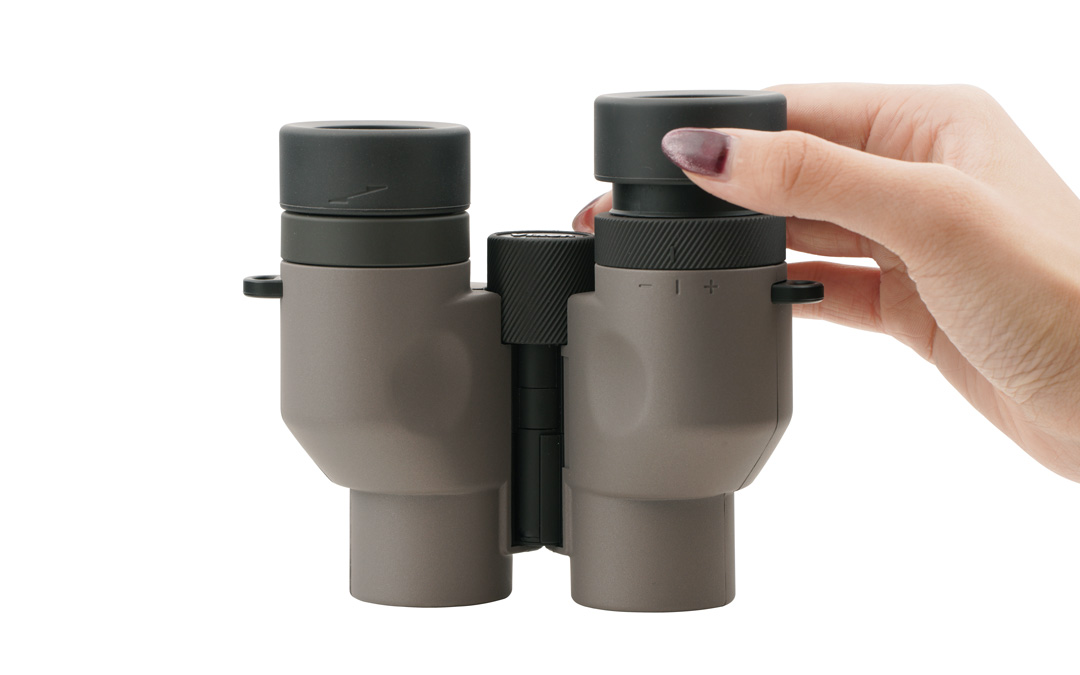

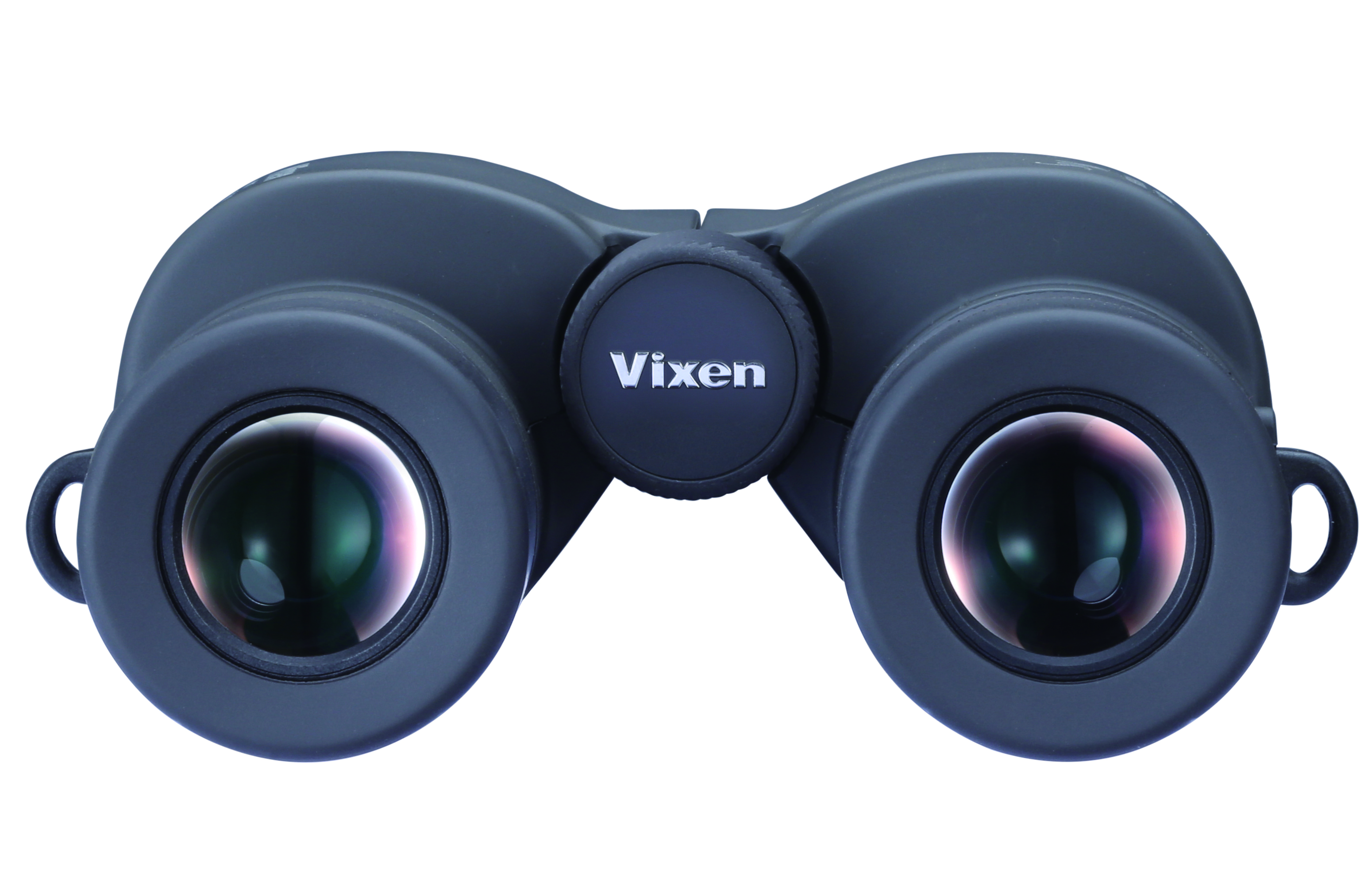

Large Aperture Eyepieces and Twist-up Eyecups for Viewing Comfort

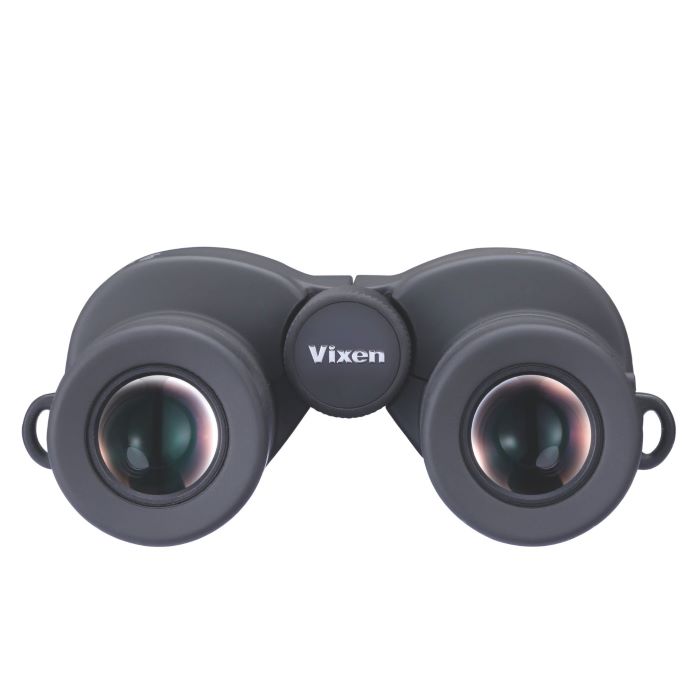

With its large 24 mm aperture eyepiece lens, the SW10×25 is easy and comfortable to look through. The rubber eyecup features a twist-up mechanism to adjust its height with a simple turn of your fingers. Extend the eyecup when viewing with the naked eye or contact lenses, and keep it retracted when wearing glasses to achieve the proper field of view.
-

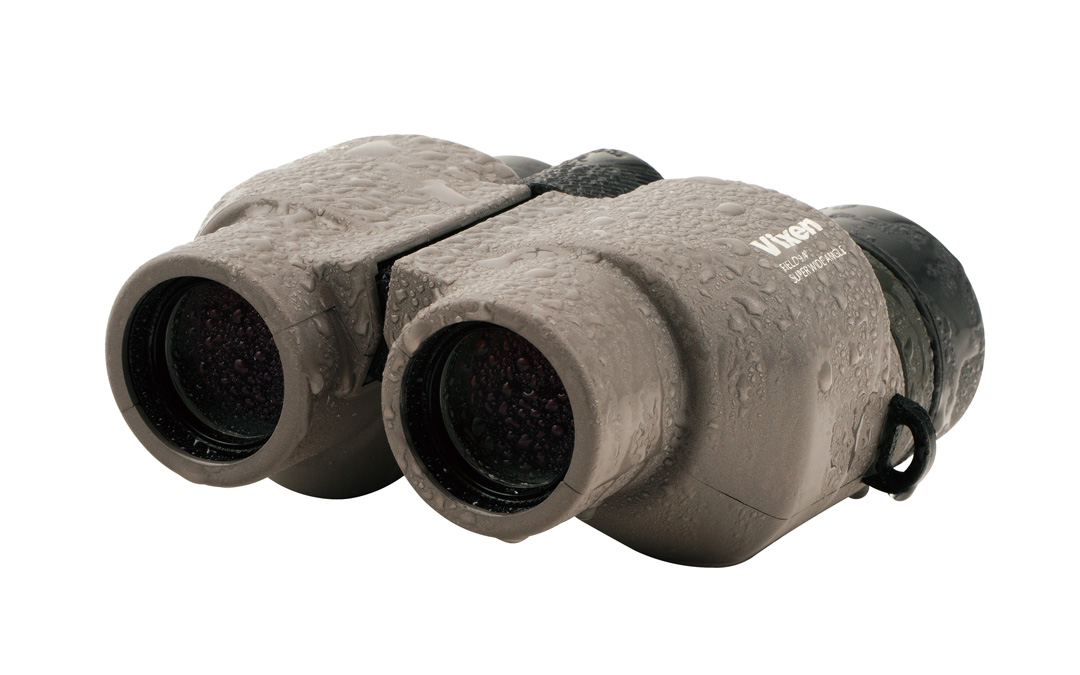

Waterproof Construction for Safe Use in Outdoor Environments
It is designed to be waterproof and filled with inert nitrogen gas, allowing you to use it safely outdoors or at festivals.
-
Excellent Operability and Grip Performance

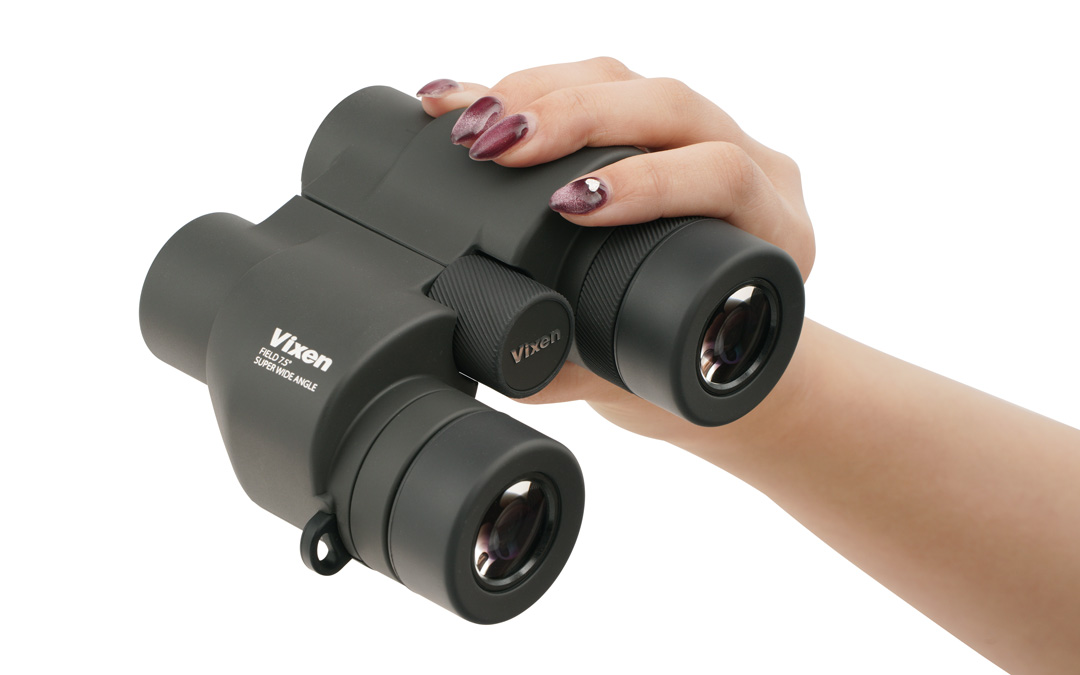

The binoculars are designed so that when you hold them in your hand, the entire inside of your fingers, from your pinky to your index finger, will fit snugly against the body. There is also a recess where your thumb will rest, making it easier to hold. Large parts are used for the operating parts, such as the focusing wheel and diopter adjustment ring, making them easy to operate not only with bare hands but also when wearing gloves.
-

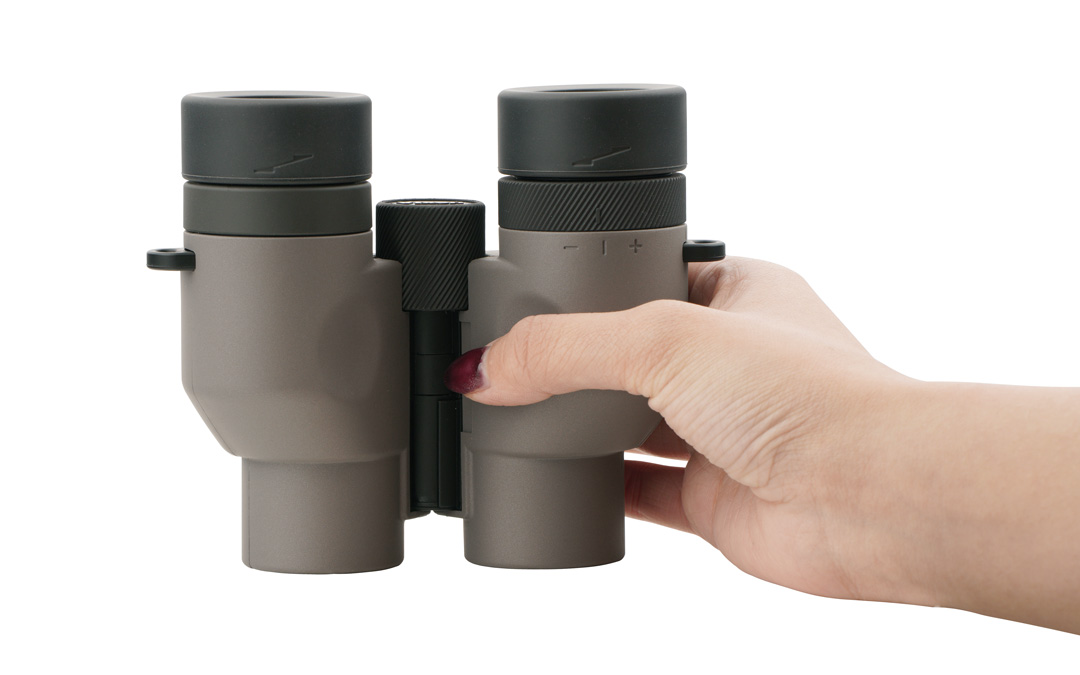

Calm Earth Colors and Clean Design

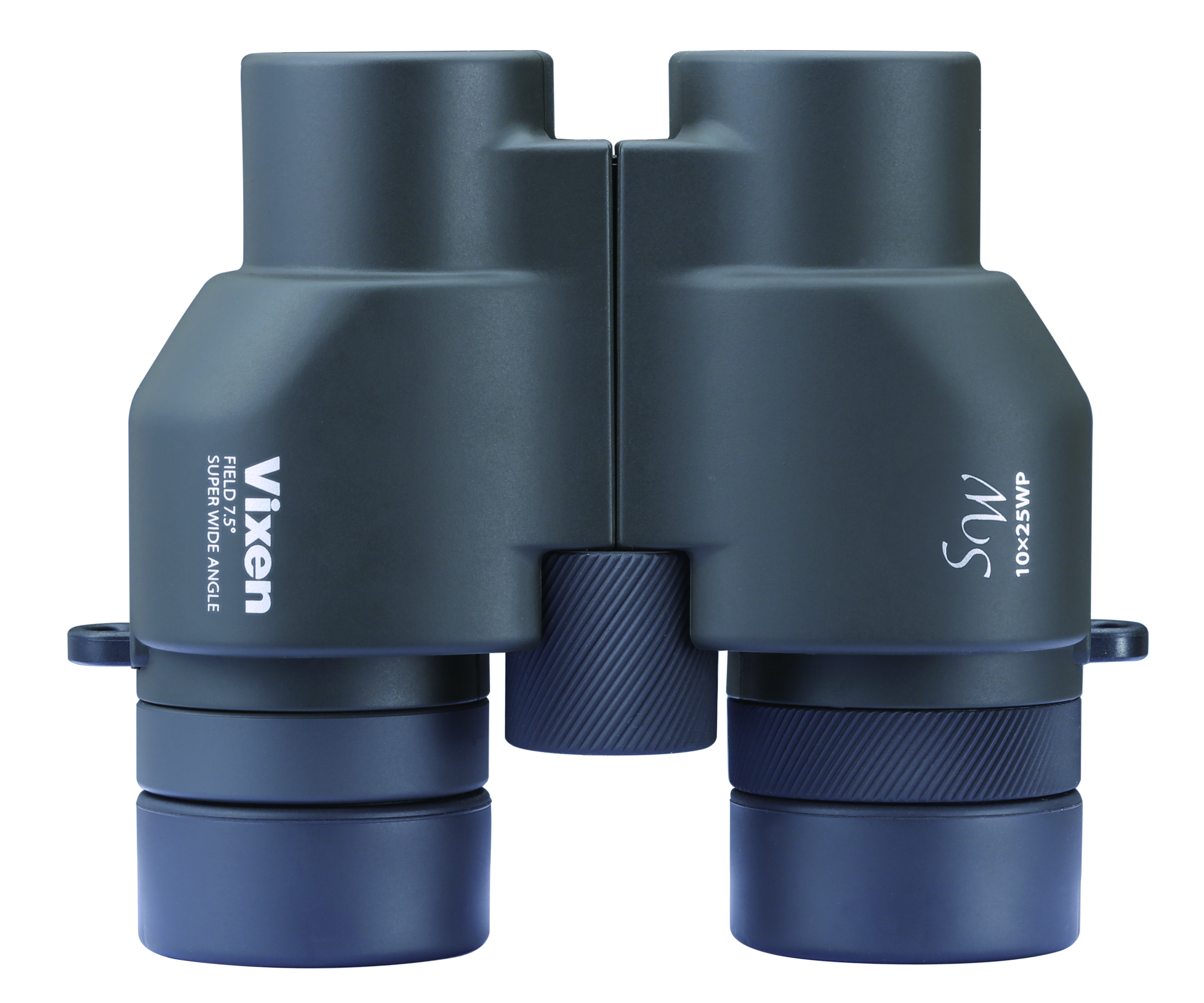

The exterior design is streamlined with no protruding parts. It comes in a calming matte earth color that matches easily with any outfit.
-

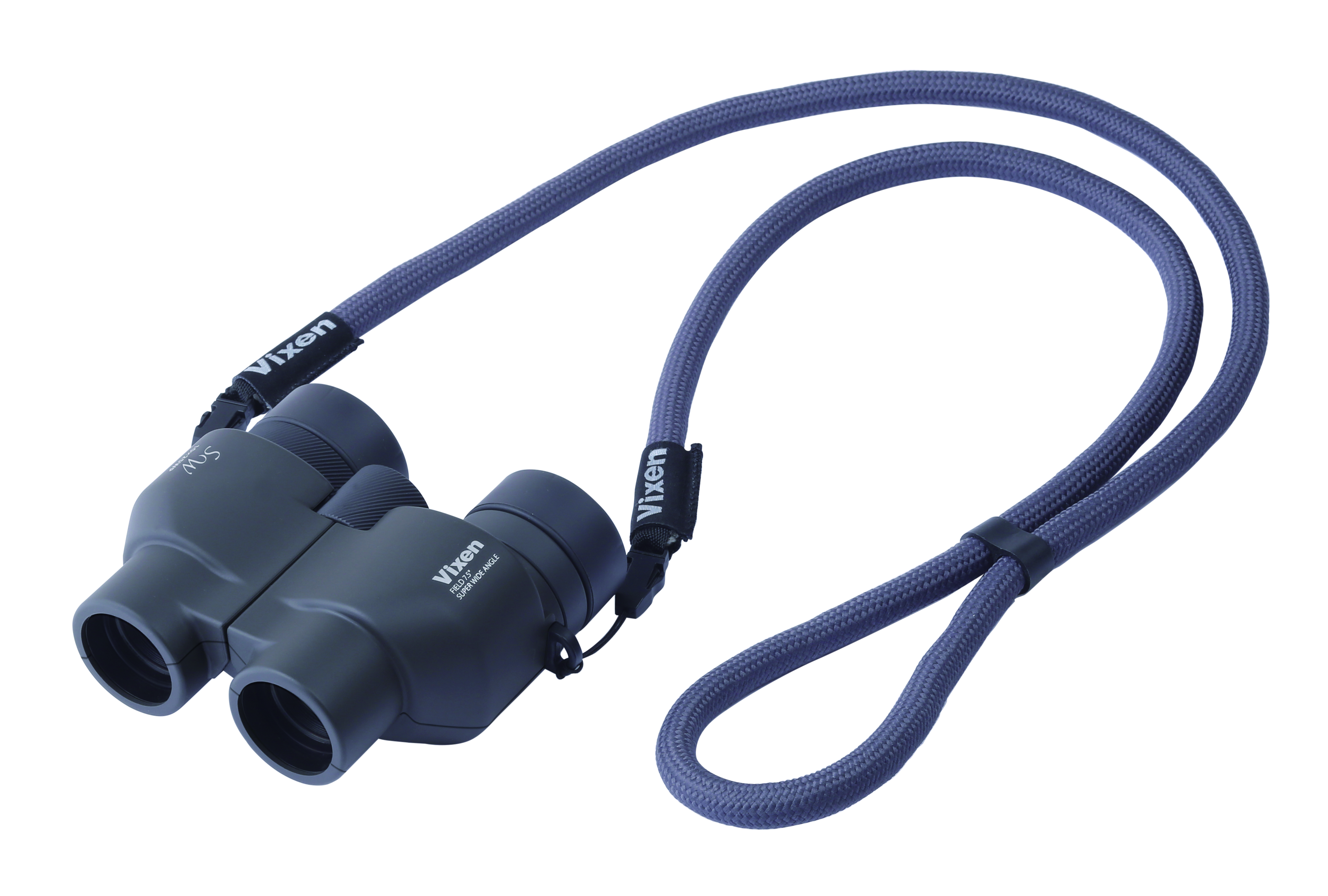

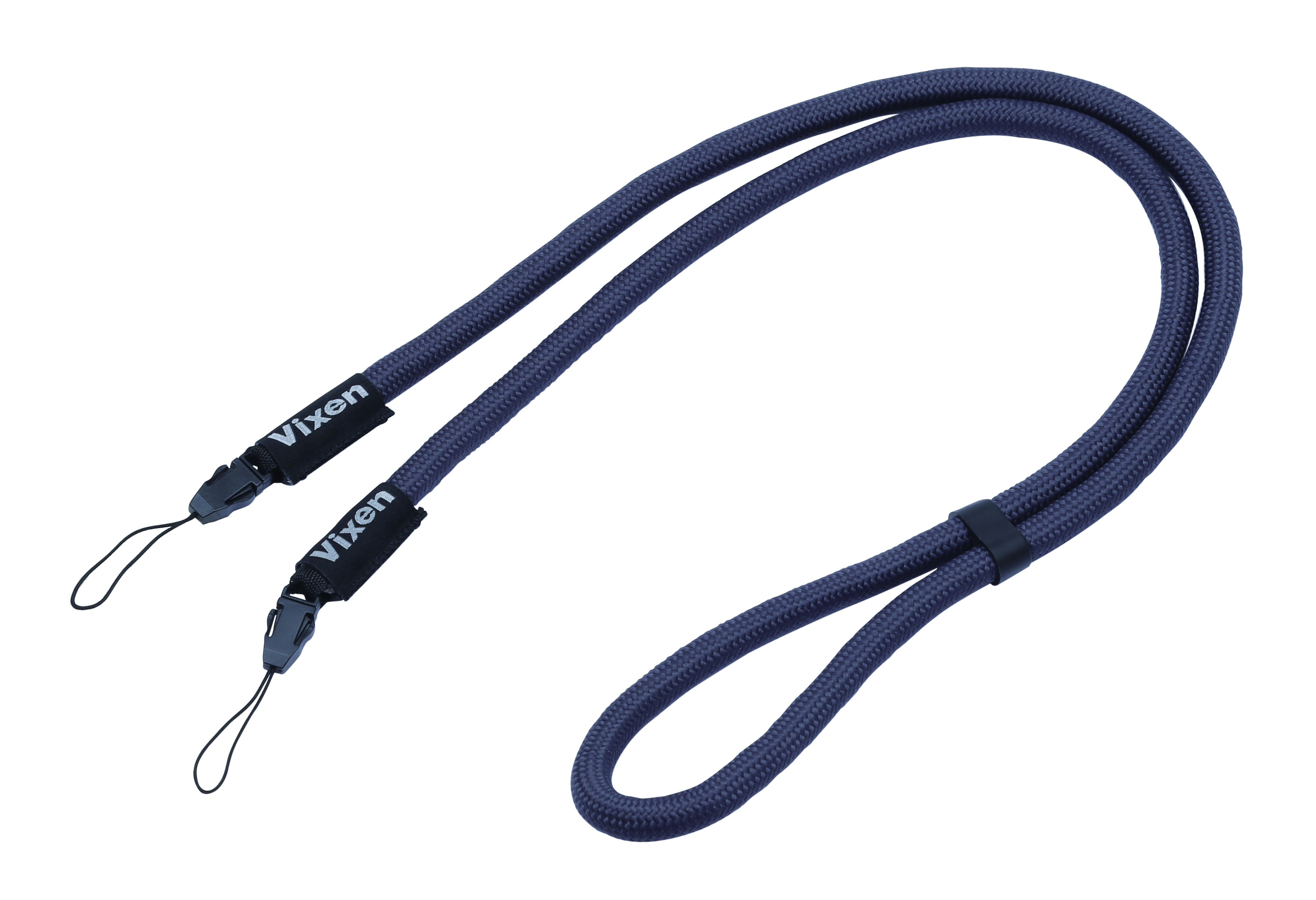

Rope Strap Supplied
A simple and easy-to-use rope strap is included (detachable coupler). The rope strap is durable, has less twisting, and is intuitively easy to use. The strap length can be adjusted by simply moving the slider. You can fit the length to suit your preference, such as using it as a shoulder strap or as a neck strap. The strap is soft and moderate for cushioning, you can wear it comfortably for hours without feeling strain on the neck and shoulders.
-

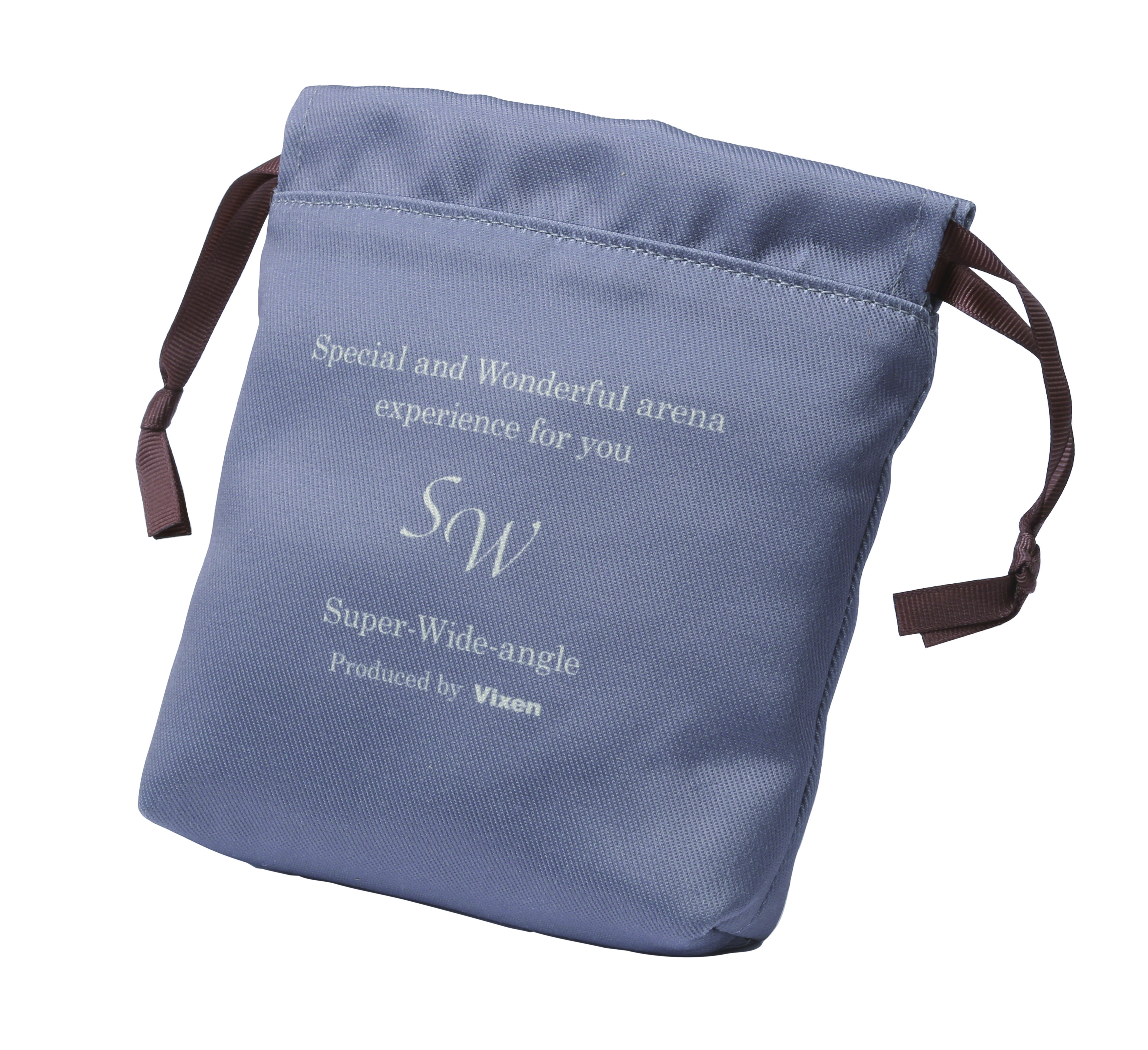

Drawstring Pouch that holds the Binoculars along with the Strap
The case comes with a drawstring that allows you to store the binoculars with the strap. Its soft fabric protects the binoculars during transport, while the earthy color matches the main body, making it easy to coordinate with any outfit.
Specifications
SW10×25WP
-
Magnification10x
-
Objective Lens Effective Aperture25mm
-
Prism MaterialBaK4
-
Prism TypePorro prisms + Mirror
-
Optical CoatingsPerfect fully multi coated
-
Actual Field of View7.5°
-
Apparent Field of View*66.5°
-
Apparent FoV（Former JIS Standard）75.0°
-
Field at 1000m131m
-
Exit Pupil2.5mm
-
Brightness6.3
-
Eye-relief17.3mm
-
Near Focus3m
-
Inter-pupillary Distance45mm to 70mm
-
WaterproofYes
-
Tripod AdapterNo
-
Main AccessoriesSoft case, rope strap, eyepiece cap (pair type), instruction manual
-
Dimensions WxDxH114×107×53.5mm
-
Weight333g
