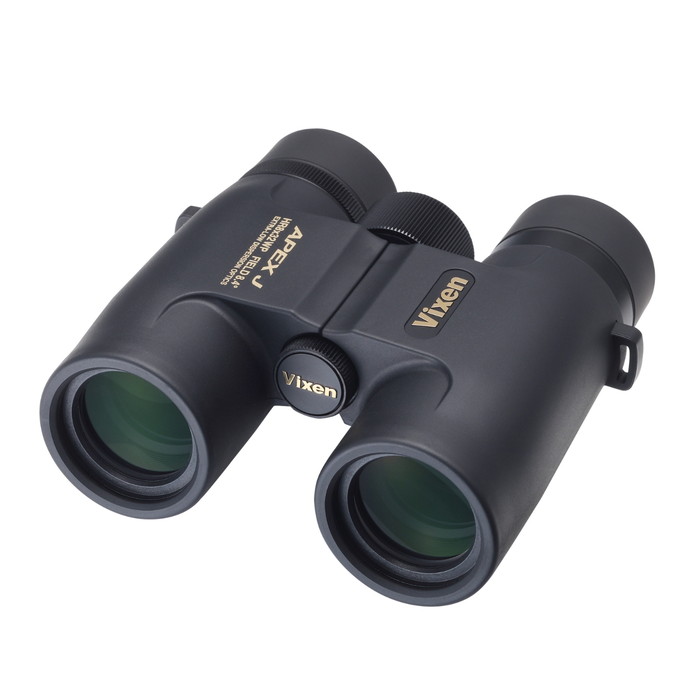

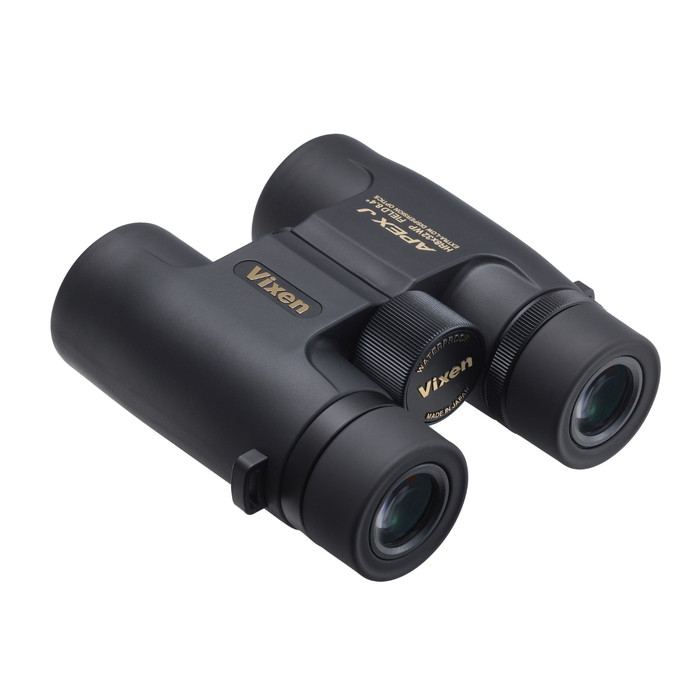

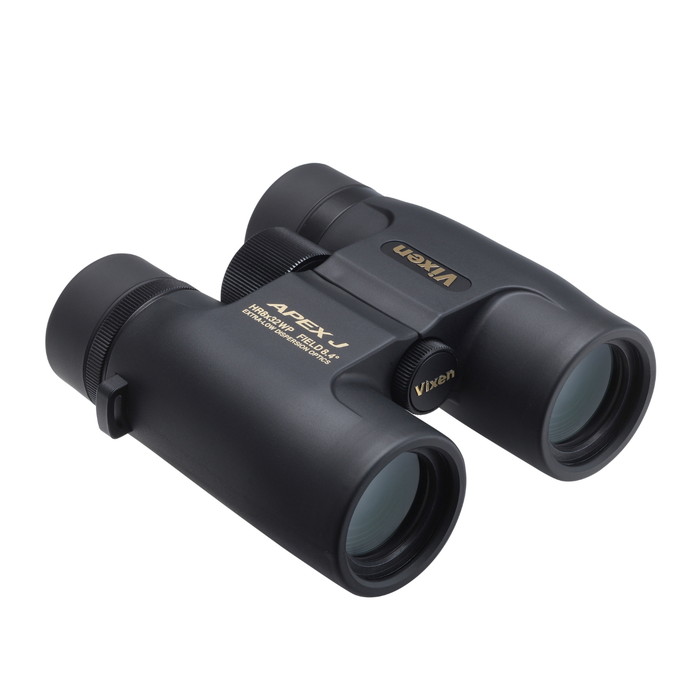

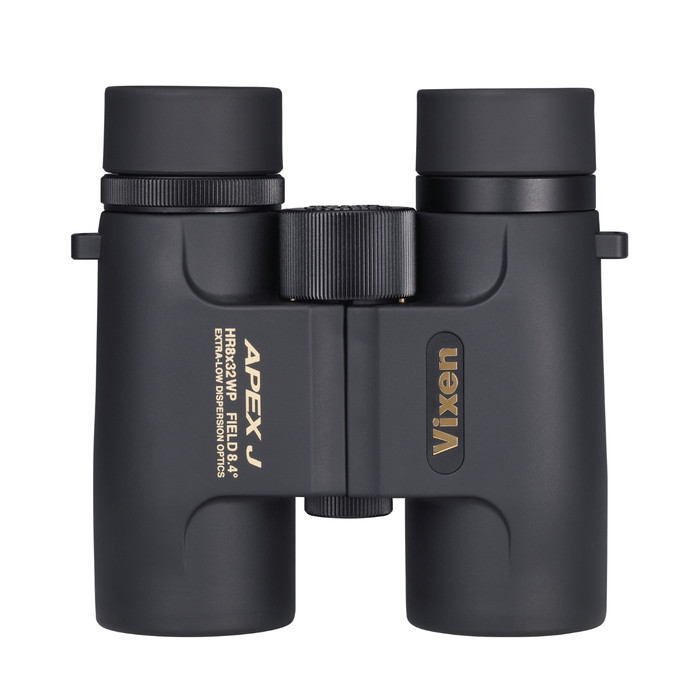

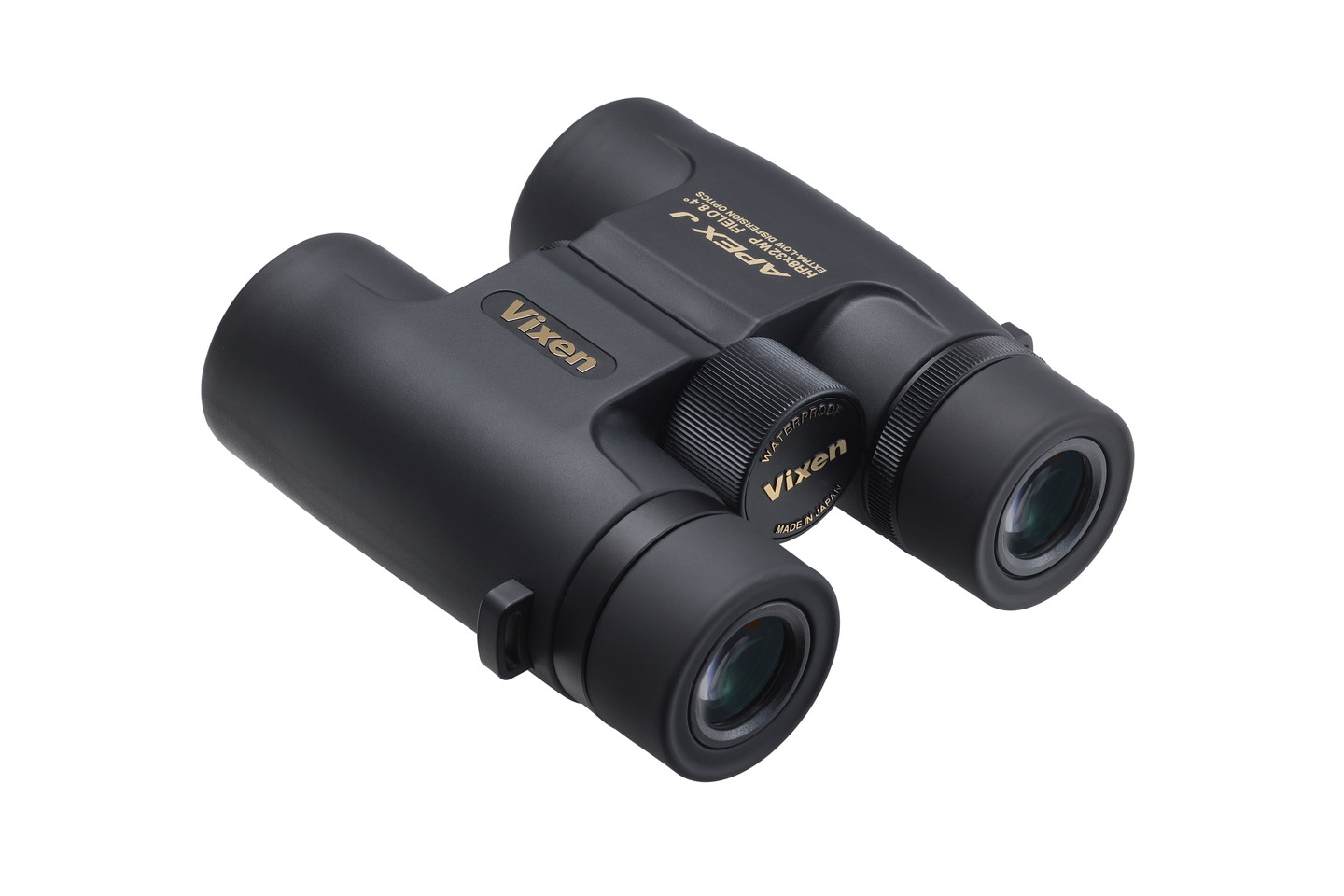

Vixen Binoculars APEX J HR8×32WP(W)
loading
Suggested retail price: 36,000円 (without tax)
- JAN
- 4955295145423
APEX J: Delivering pinpoint clarity for every gaze and expression. Reliable, Made-in-Japan binoculars for live events.
The 8x32 waterproof binoculars featuring ED (Extra-low Dispersion) glass lenses, which reduce color fringing and deliver sharp, clear images. The waterproof design makes them perfect for outdoor live shows and concerts.
Vixen Binoculars APEX J HR8×32WP(W) Description
-

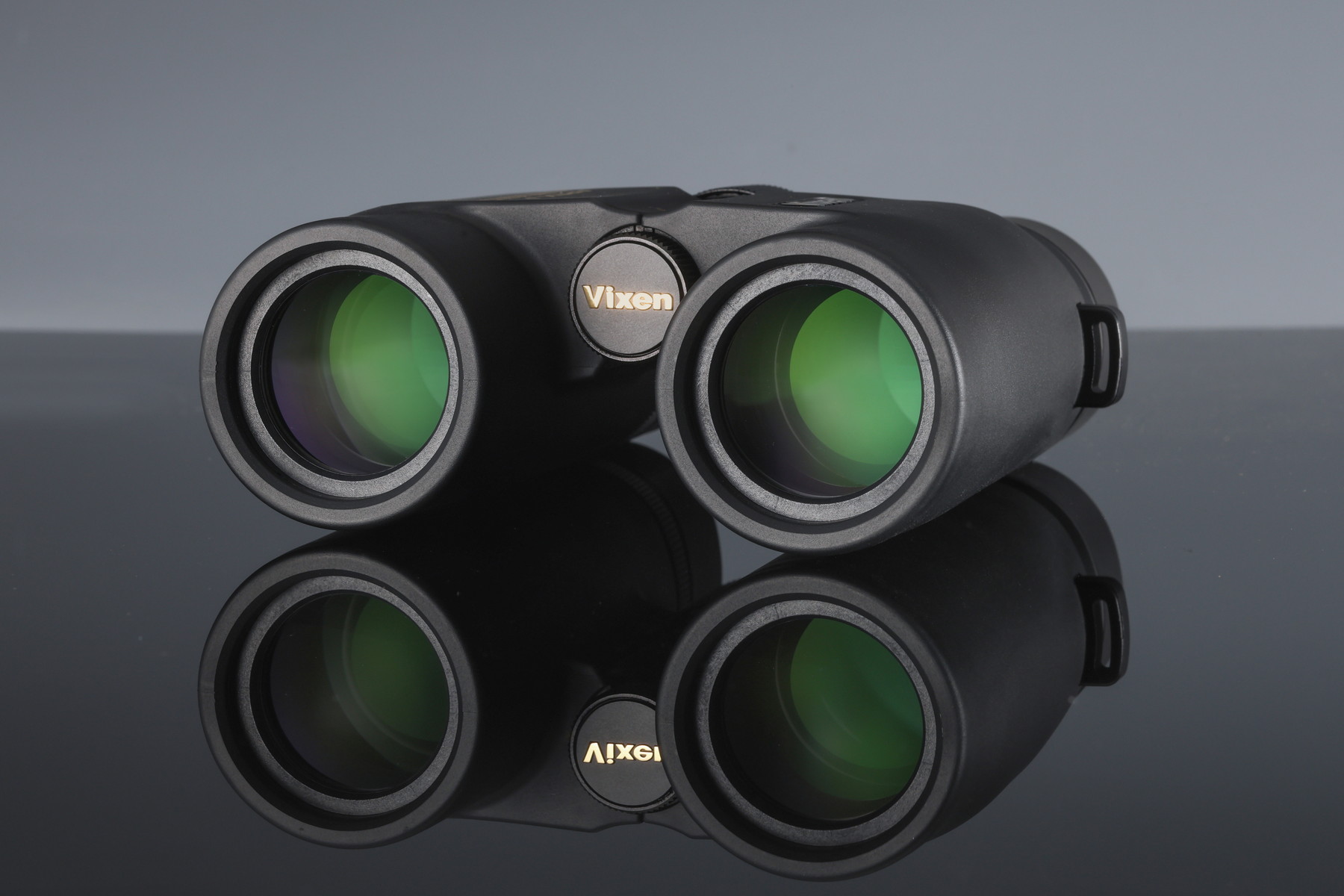

High-performance ED glass lens adopted

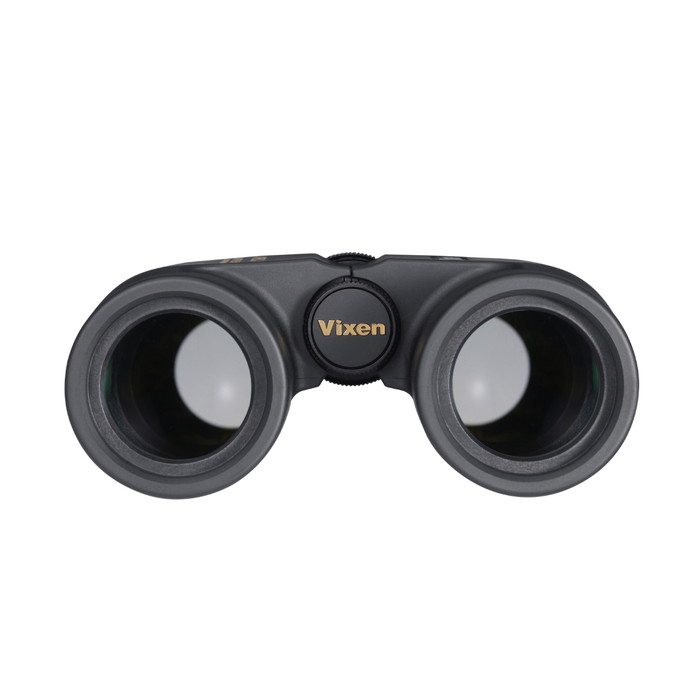

The objective lens, which is key to optical performance, features ED (Extra-low Dispersion) glass for superior results. This minimizes chromatic aberration, providing a sharp and exceptionally clear view.
-
Three special coatings for clarity and high resolution.
To achieve a high level of reduction in light reflection and scattering, all surfaces of the objective and eyepiece lenses are fully multi-coated.
The prisms are treated with two distinct coatings to suppress light dispersion: a phase-correction coating and a highly reflective coating.
By minimizing internal light loss and reflections, these coatings work in concert to deliver an exceptionally clear, high-resolution field of view. -
Designed for brightness and viewing comfort
The objective lens diameter and magnification are critical specifications that significantly impact the viewing quality of binoculars. A larger objective lens diameter results in a brighter, clearer image.
Conversely, a moderately lower magnification level reduces the effect of hand-shake, ensuring a stable and bright field of view.
The APEX J HR8x32WP(W) features a well-balanced optical design with an 8x magnification and a 32mm effective objective lens diameter, making it the ideal specification for users who want a sharp, steady view at live shows and concerts.Furthermore, it incorporates large 22mm eyepiece to ensure a bright and comfortable viewing experience.

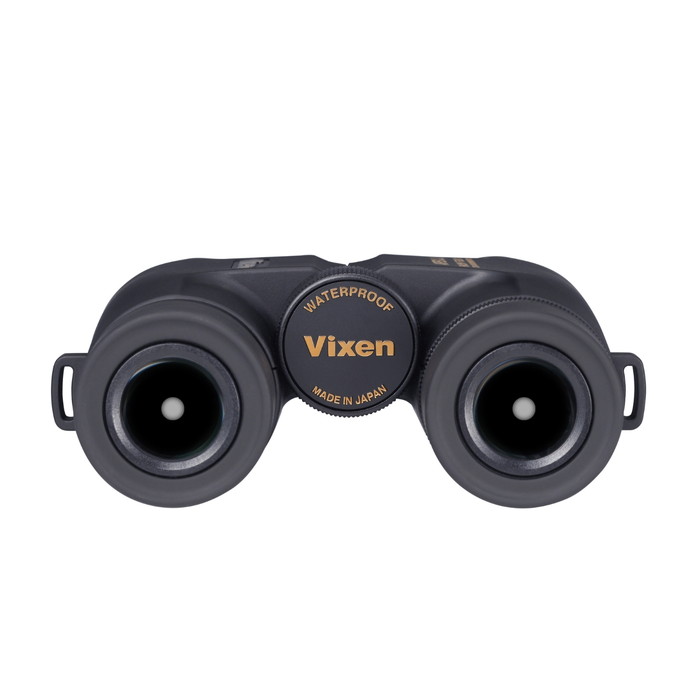

The eyepieces are equipped with adjustable eyecups, allowing users to customize the height for optimal viewing comfort, whether with eyeglasses, contact lenses, or the naked eye. -
Wide-Angle View
Features a wide-angle design with a 60.9° apparent field of view (67.2° by former JIS standards). The wide perspective makes it easy to track subjects with a lot of movement, making it ideal not only for live concerts but also for watching stage plays.
-

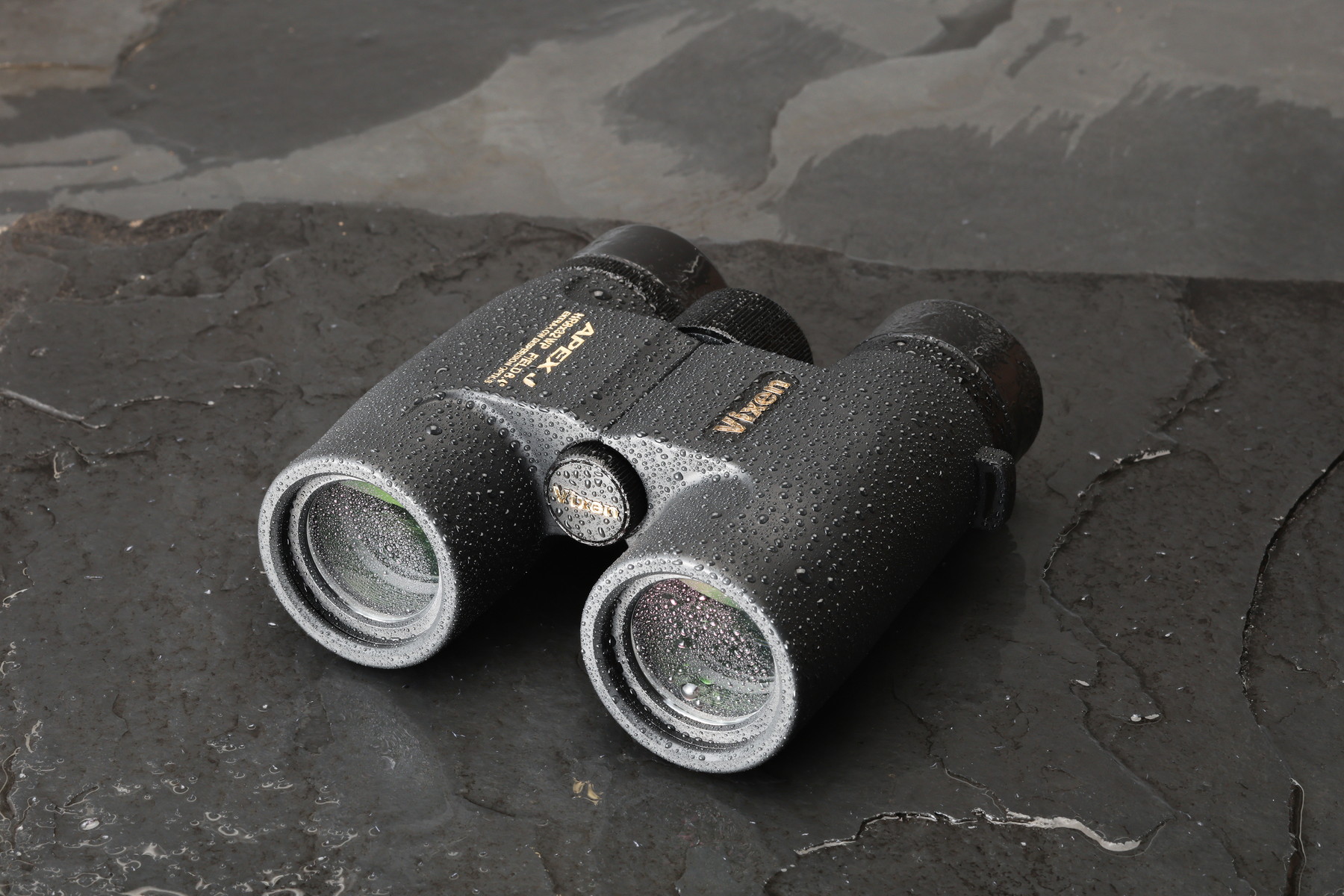

Waterproof Design
Featuring a waterproof design, these binoculars are nitrogen-filled and sealed with rubber gaskets.
You can use them with confidence in any outdoor setting, such as an open-air concert. -
Tripod Adaptable.
You can mount the binoculars on a commercially available camera tripod by using an optional accessory (Bino Holder H or Bino Holder MH, sold separately).
Mounting them on a tripod stabilizes the image, allowing for detailed observation.
Specifications
APEX J HR8×32WP(W)
-
Magnification8x
-
Effective Objective Lens Diameter32mm (ED lens)
-
Prism MaterialRoof prism
-
Lens CoatingsFully multi-coated, phase-coated, highly reflective
-
Angular Field of View8.4°
-
Apparent Field of View*160.9° (wide angle)
-
Apparent FoV（Former JIS Standard）67.2° (wide angle)
-
Field of View at 1000m147m
-
Exit Pupil4mm
-
Brightness16
-
Eye Relief15.7mm (Long eye relief)
-
Close Focusing DistanceApproximately 3.5m
-
Interpupillary Distance55 to 74 mm
-
WaterproofYes, Nitrogen filled
-
Tripod AdapterPossible (With optional accessories*2)
-

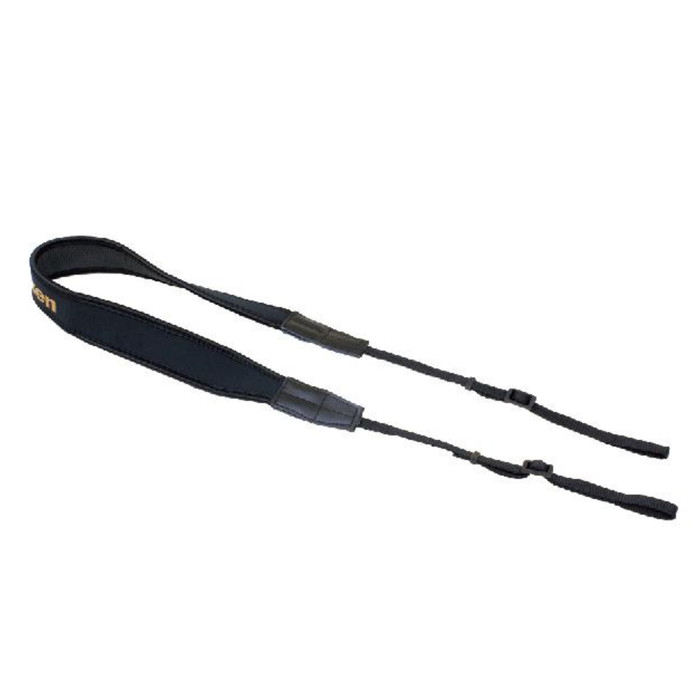

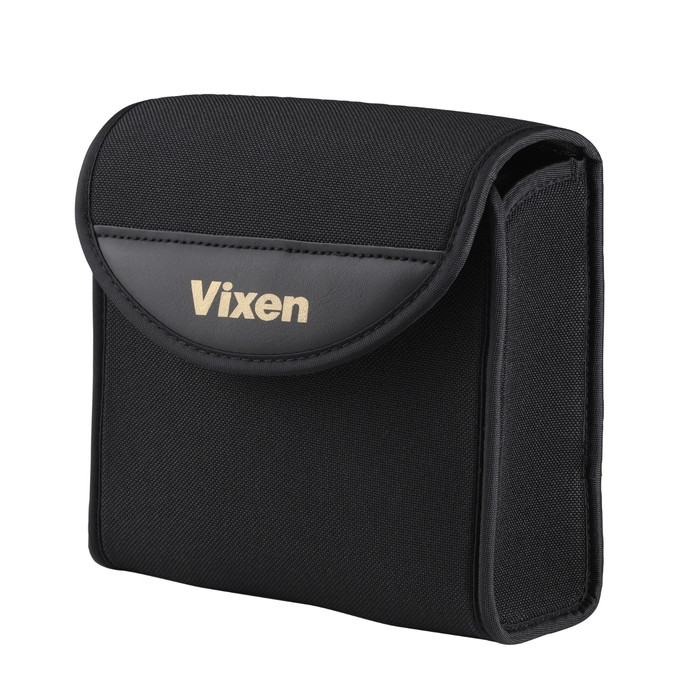

Main AccessoriesSoft case and neck strap (narrow) included
-
Dimensions WxDxH123×128×51mm
-
Weight549g
-
*1:JIS B7157 : 2003
*2:For use with the Bino Holder H or Bino Holder MH.
