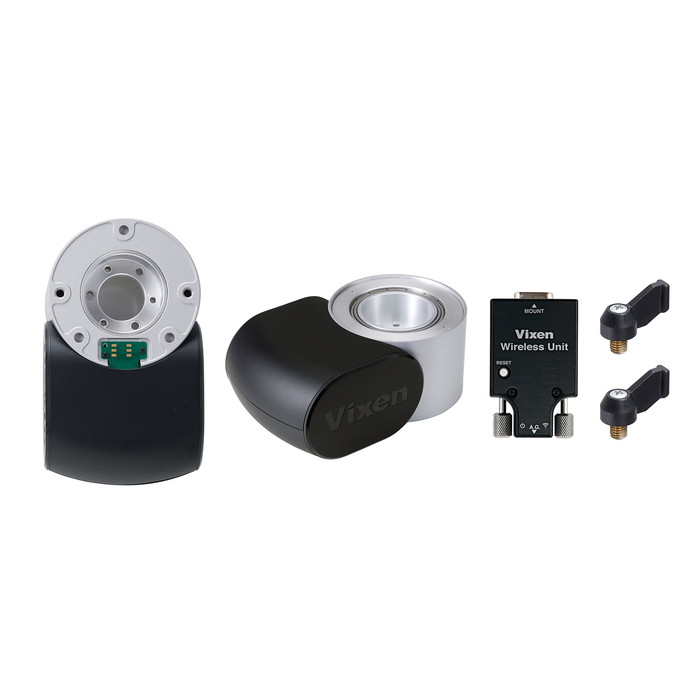

Vixen Telescope R.A. / DEC. Motors WL Set

Vixen Telescope R.A. / DEC. Motors WL Set —
Vixen Telescope R.A. / DEC. Motors WL Set —

loading

  • —

Suggested retail price: Contact local dealer

JAN
4955295258291

Operate your AP Mount wirelessly! A set of R.A./DEC. Motors + Wireless Unit.

This module kit upgrades your manually operated AP Mount to the advanced AP-WL Mount. With the addition of the kit, you can easily enjoy celestial navigation, such as automatic Go-To slewing and tracking, all operated with just a tap on your smartphone screen (A dedicated app is required).

Vixen Telescope R.A. / DEC. Motors WL Set Description

  • Motor Modules (R.A./DEC.)

    The motor module has a built-in bearing, ensuring stable operation. It is equipped with a USB Micro-B 2.0 port and can be powered by any external USB power source (such as a mobile battery).

  • "Wireless Unit" lets you control your Telescope with a Smartphone

    By installing the free dedicated smartphone app "STAR BOOK Wireless" on your smartphone, you can use it as a telescope controller. You can enjoy functions like automatic Go-To slewing* to celestial objects just by tapping the star chart displayed on the screen.

    *During Go-To slewing, the mount travels at approximately 100x the sidereal rate at maximum.

  • AP Clamp Lever

    The AP clamp levers are required when using the automatic Go-To function with the Wireless Unit. When operating the AP-WL with the friction-stop function, properly adjust the clamp’s tightening torque to set the desired stiffness or looseness.

Specifications

R.A. DEC. Motor WL Set

  • Set contents
    R.A. motor module
    DEC. motor module
    Wireless Unit
    AP Clamp Lever (2 pieces)
  • slight tremor
    Electrically operated worm and wheel gears with full circle micromotion
  • Worm Wheel
    φ73.5mm, 144 teeth
  • Worm shaft material
    φ11mm Material: Brass
  • Number of bearings
    Ball bearings x 2
  • Rotating shaft and material
    φ45mm・Material: Aluminum alloy
  • motor
    Pulse motor
  • Controller connection terminal
    D-SUB 9PIN male (R.A. motor module only)
  • power supply
    External power supply with USB output (power supply sold separately)
  • power terminal
    USB Micro-B 2.0 (DC4.4-5.26V) (R.A. motor module only)
  • Current consumption (power consumption)
    DC5V 0.2-0.5A (1.0-2.5W)
  • CPU
    32bit CISC Processor 120MHz
  • Mounting terminal
    D-SUB 9PIN female
  • Autoguider terminal
    6-pole, 6-core modular jack (for external autoguider)
  • Wi-Fi function
    With the dedicated app "STAR BOOK Wireless"Uses smartphone as user interface
  • Dedicated app operating environment*
    Supported OS: Android 6 or later, iOS 9.0 or later
  • ・Wi-Fi standard*
    IEEE802.11b/g/n
  • ・Data encryption method*
    WPA2-PSK
  • power supply
    Supplied from the mount body
  • Size and weight
    56×36×19.5mm ・40g
  • others
    Updatings are possible via Wi-Fi connection
  • Weight
    1,310g
*The app may not be usable even if your device meets the system requirements. Please be sure to check the app's functionality on your device beforehand.

Set Contents

  • R.A. Motor Module
  • DEC. Motor Module
  • Wireless Unit
  • AP Clamp Lever (2 pieces)
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
