Vixen Telescope Quick Release Holder
loading
Suggested retail price: Contact local dealer
- JAN
- 4955295354191

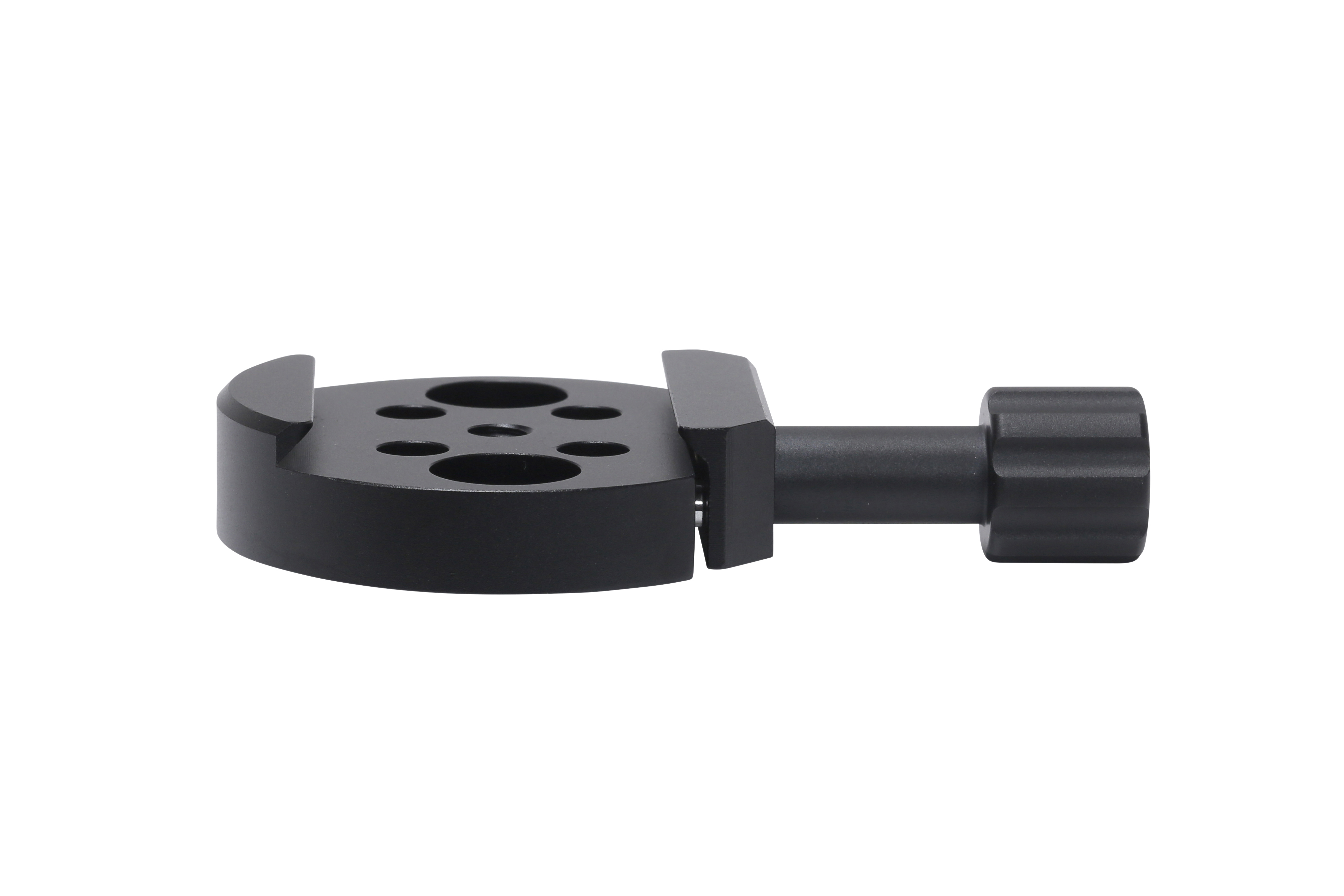

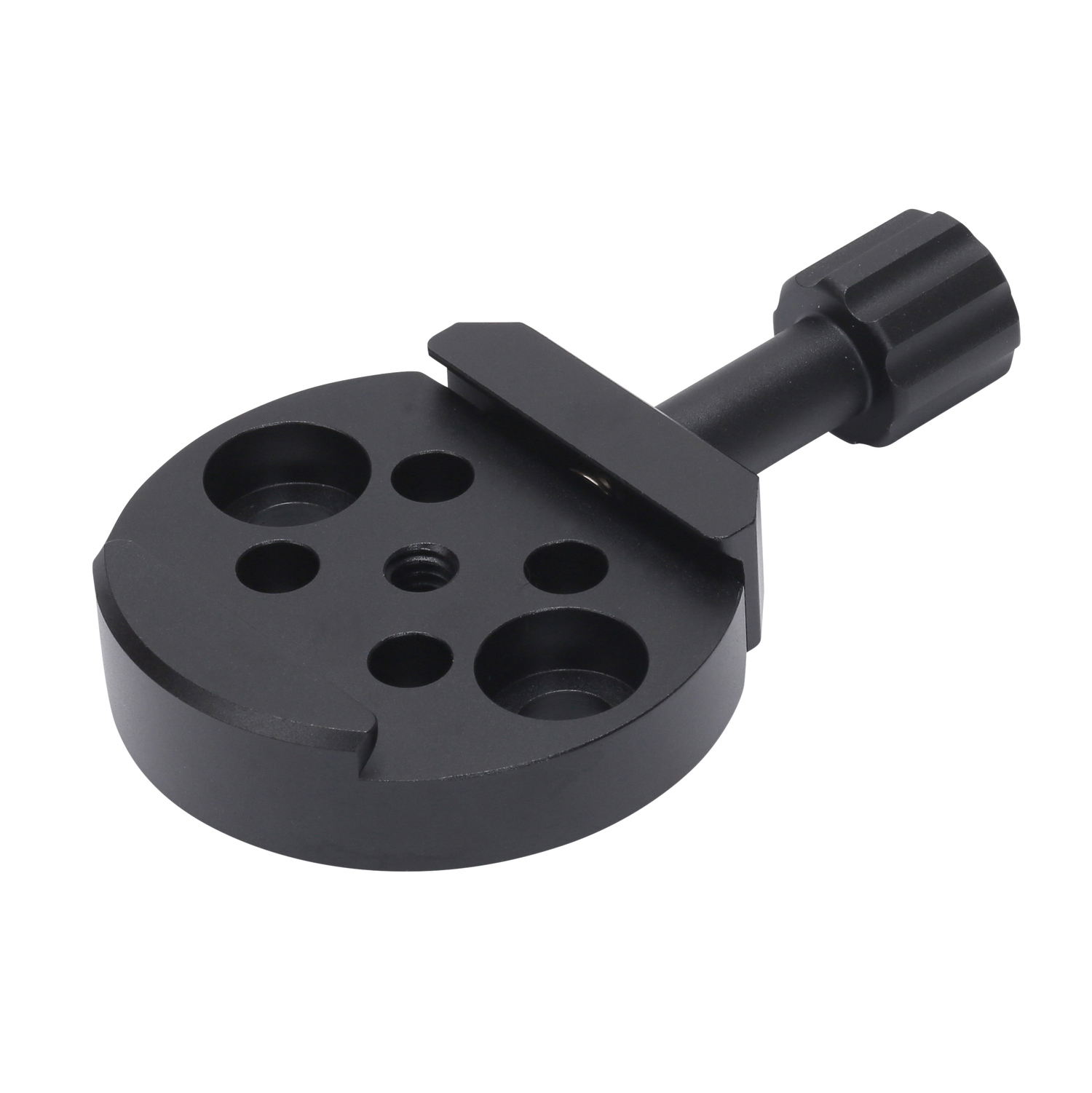

Dovetail plate quick-release holder for Vixen's thin dovetail attachment standard.
This component allows you to attach and detach dovetail plates that match Vixen's thin dovetail attachment standard. It enables you to mount an optical tube or a camera on a Vixen equatorial mount effortlessly without replacing the attachment plate.
Vixen Telescope Quick Release Holder Description
-
Quick and Easy Attachment
This holder features a quick-release design that clamps a dovetail plate from the side, allowing small telescopes and camera equipment to be attached and removed instantly.
-
Compatible with a Wide Range of Astro-imaging Gear

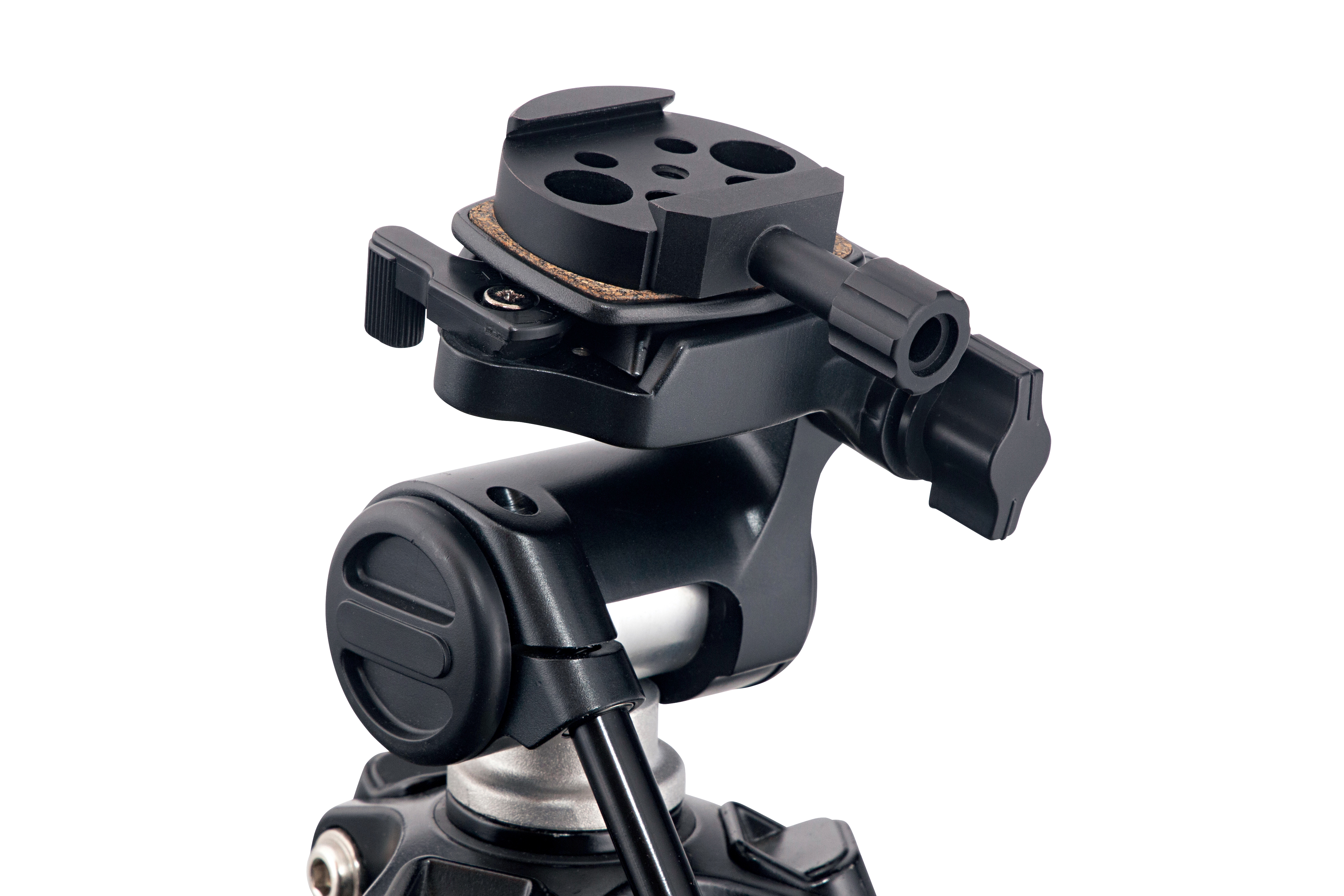

With mounting holes for two M8 screws spaced 35 mm apart, this holder is compatible with a wide range of imaging equipment, not only Vixen products. The standard 1/4"-20 threaded hole on the underside also allows direct attachment to camera tripods.
-

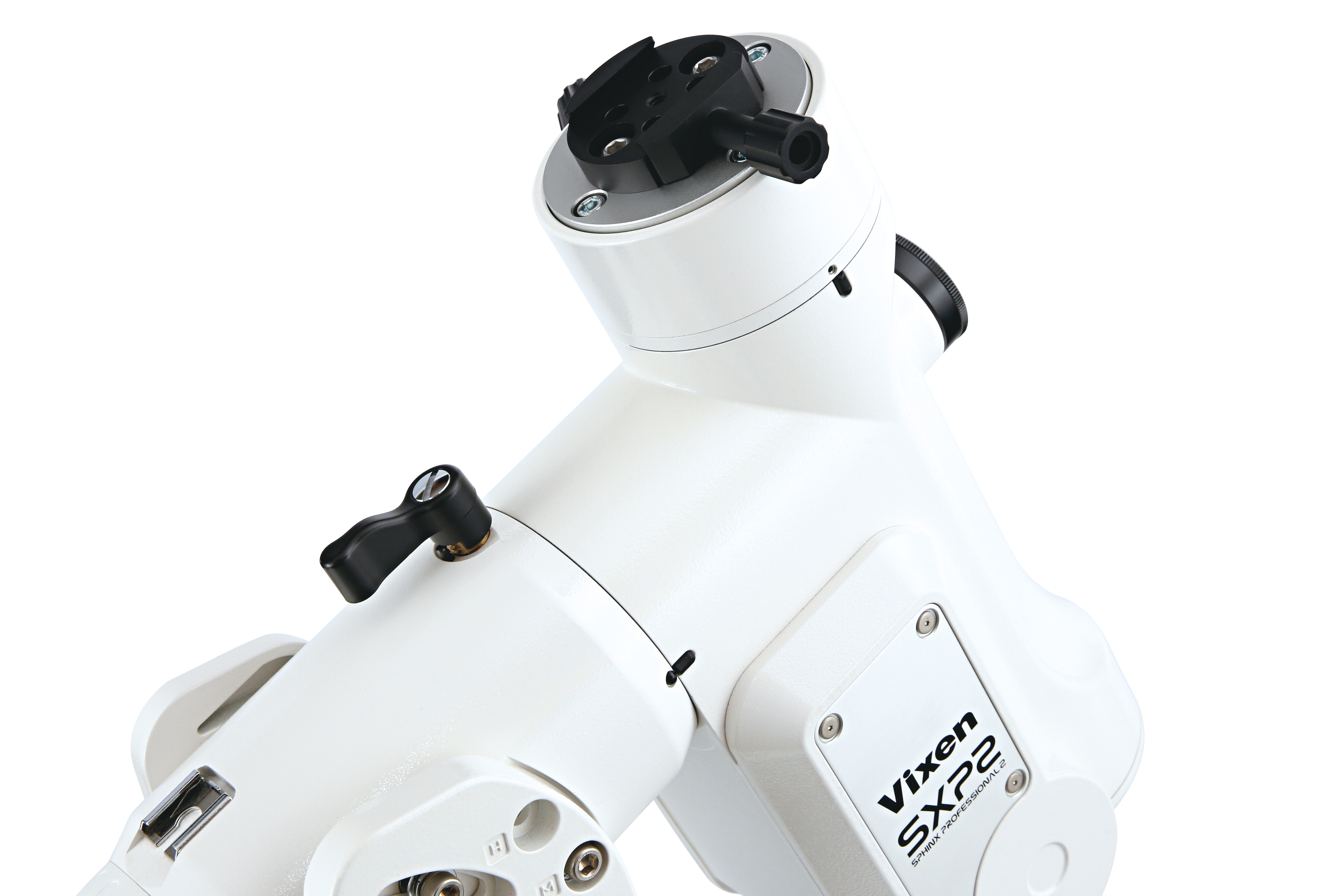

Compatible with SXP Series Mounts
It features a long locking handle that provides easy operation and is compatible with the wider mounting platforms of the SXP Series equatorial mounts (SXP and SXP2).
Specifications
Quick Release Holder
-
Cylinder specificationsThin attachment plate standard
-
Equipment mounting screws1/4 inch (female) x 1
-
othersM8 through holes x 2 (35mm intervals)
-
Compatible modelsSXP equatorial mount series, VSD90SS telescope, guide mount XY
-
Weight67g
Accessories
- Screws (M8, length 10 mm) x 2
- Hexagonal wrench 5mm
