Suggested retail price: Contact local dealer

JAN
4955295372546

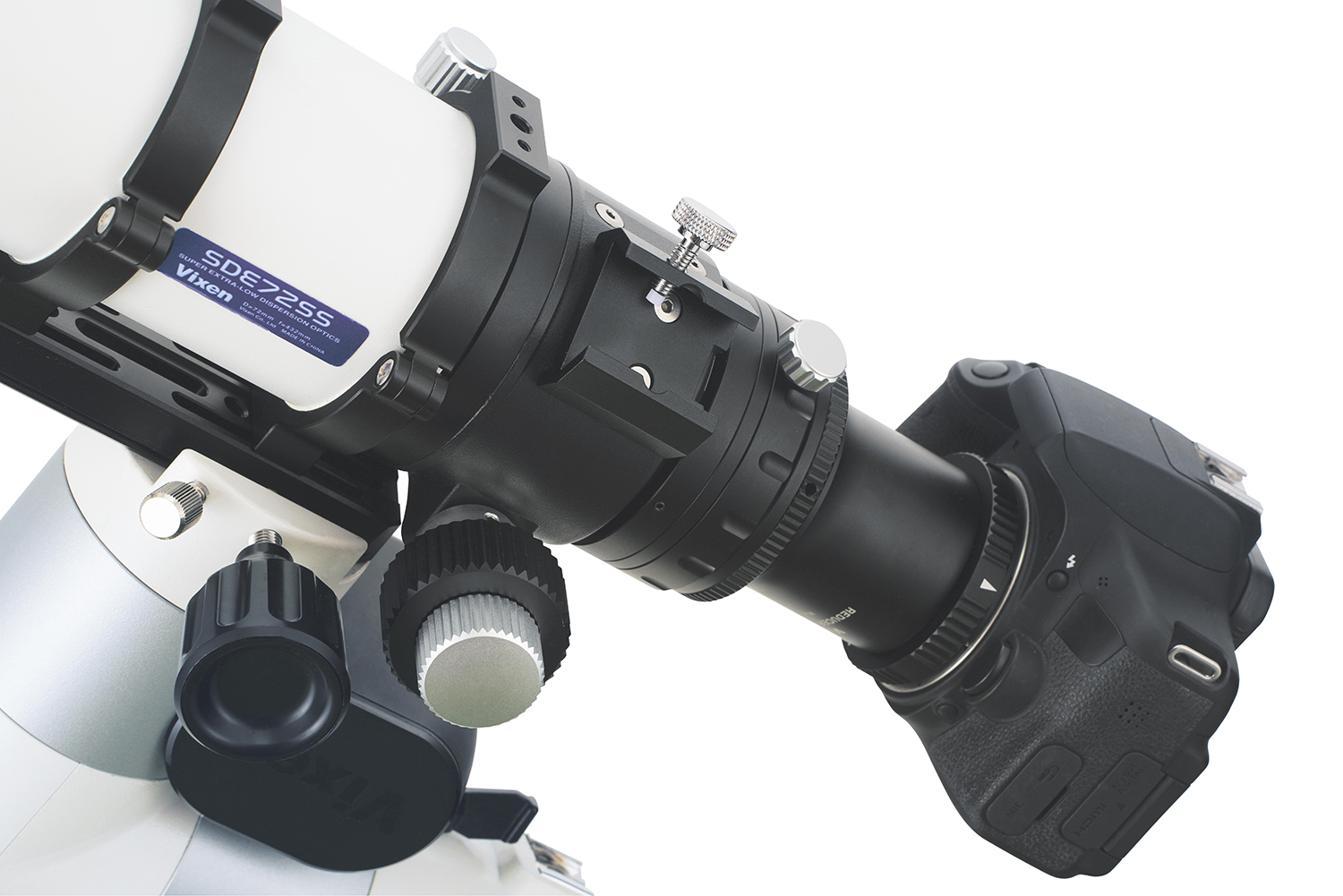

An ideal set for anyone looking to enjoy serious astrophotography with the SDE72SS telescope.

This set includes a reducer lens and a camera adapter (with a camera rotation ring) for an SDE72SS optical tube. It reduces the focal length by 0.8x and produces a flattened image plane, enhancing photographic performance.

Vixen Telescope Reducer SDE for Nikon F Description

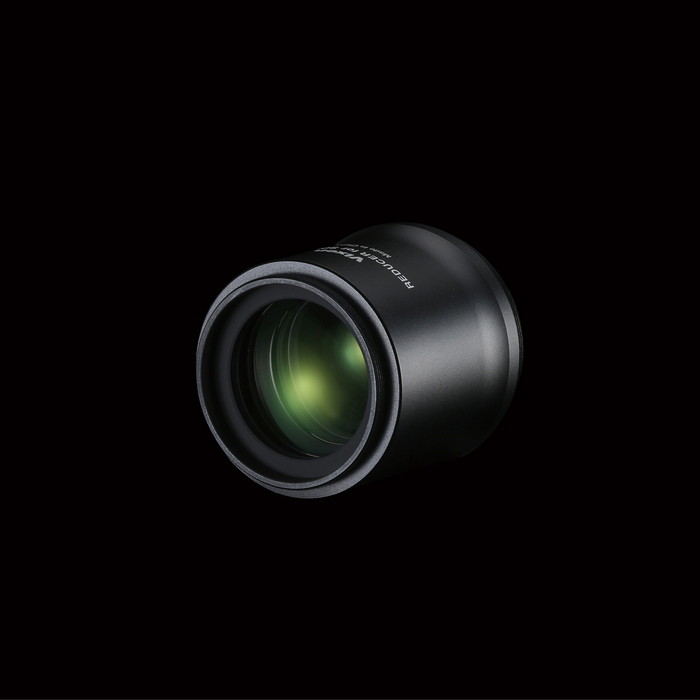

  • Focal Reducer Lens dedicated to the SDE72SS

    With this optional accessory, the SDE72SS optical tube transforms into a 346 mm (f/4.8) telephoto lens. By shortening the focal length to 0.8× and flattening the full image plane, its photographic performance is enhanced. It provides a 30 mm image circle, covering sensors up to APS-C size.

    M31 (Andromeda Galaxy)

    Optical System: SDE72SS + SDE Reducer
    Camera: DSLR Camera (APS-C)
    Exposure Time: 20 minutes (30 seconds x 40)

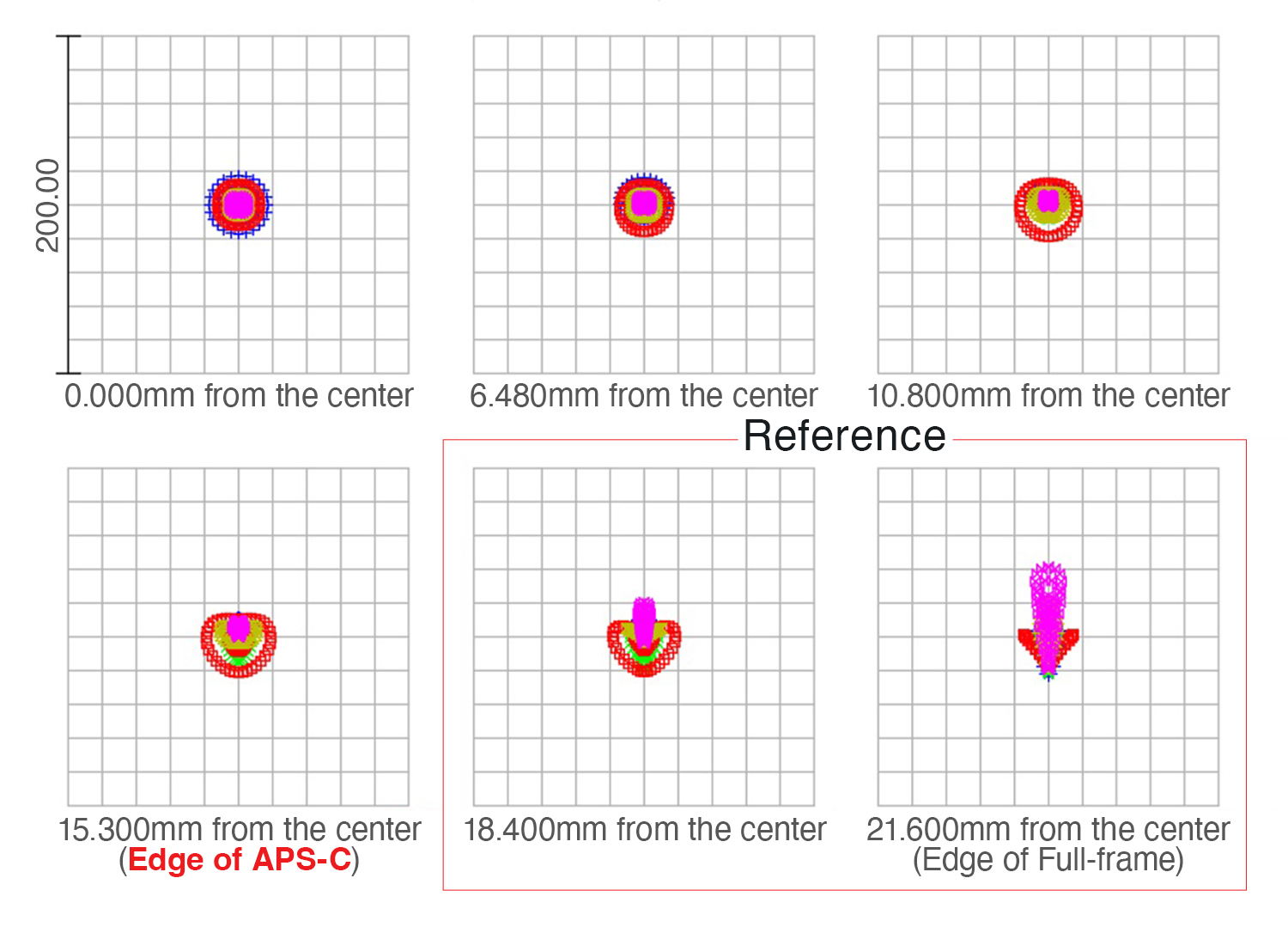

  • Spot Diagrams

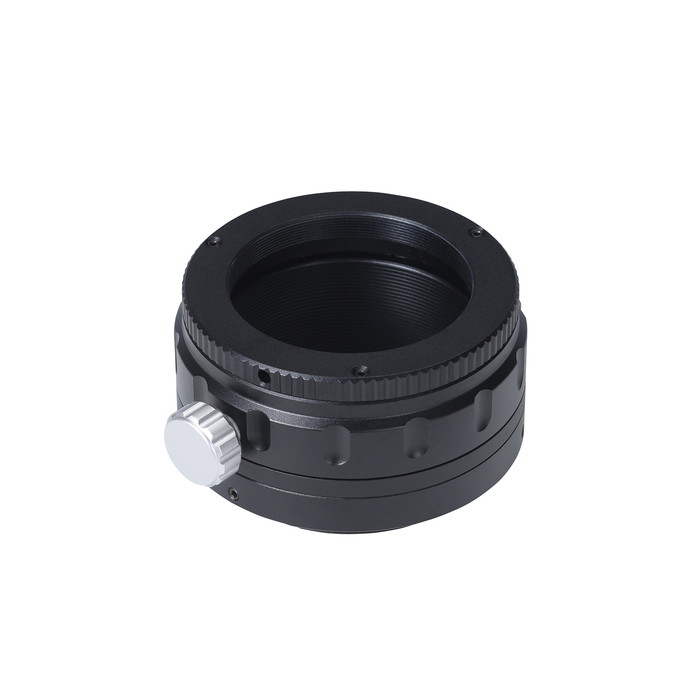

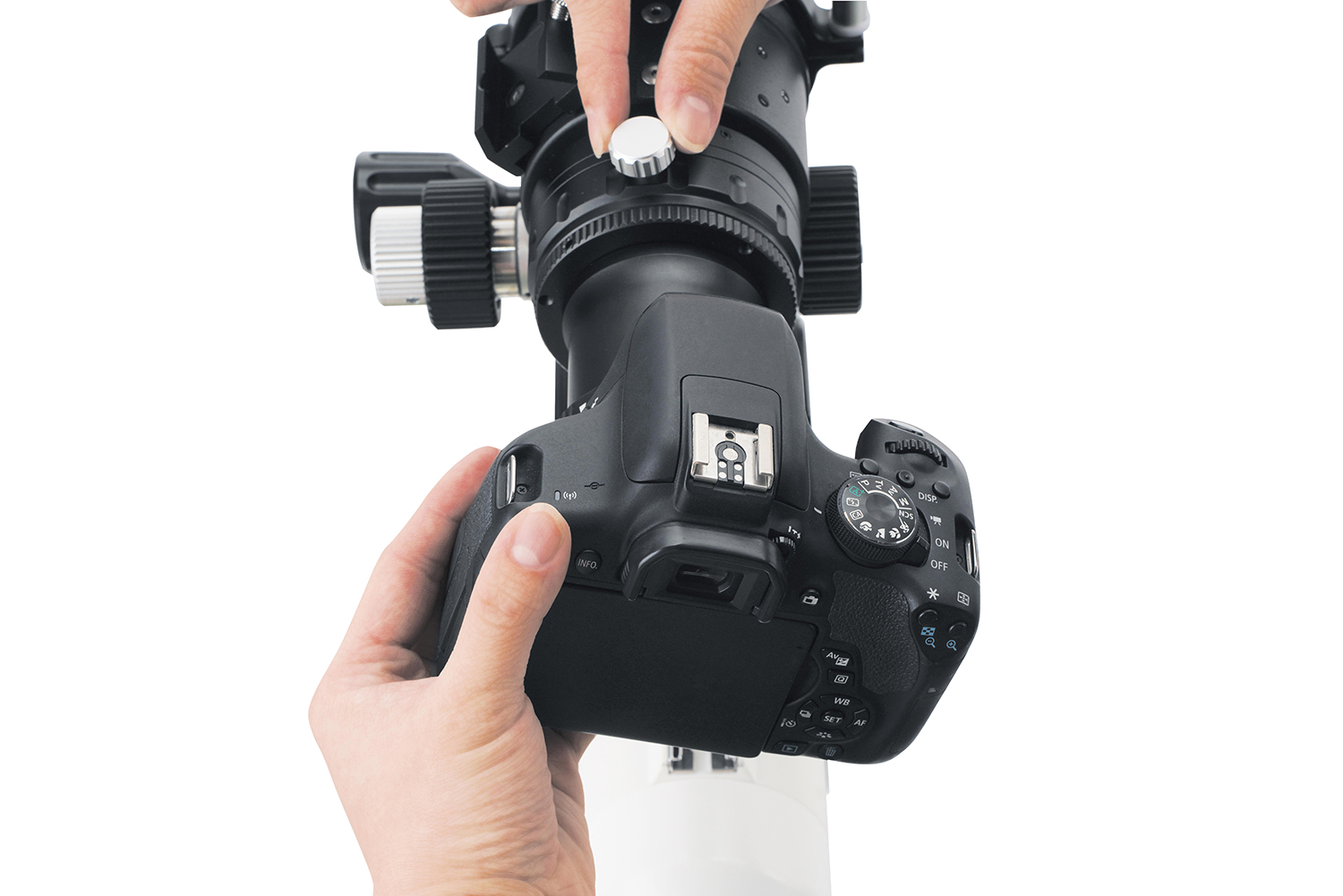

  • Camera Rotation Ring

    The attached camera body can be rotated with a single touch, which is extremely useful for adjusting the framing when photographing astronomical objects.

  • Example

    M42 (Orion Nebula)

    Optical System: SDE72SS + SDE Reducer
    Camera: ASI585MC Pro (1/1.2-inch)
    Exposure Time: 87 minutes (1 minute x 87)

    M51 (Whirlpool Galaxy)

    Optical System: SDE72SS + SDE Reducer
    Camera: ASI585MC Pro (1/1.2-inch)
    Exposure Time: 74 minutes (2 minutes x 37)

Specifications

Reducer SDE for Nikon F

  • Compatible telescopes
    SDE72SS
  • Magnification
    0.8x
  • Focal length (F-ratio)
    432mm(F6)→346mm(F4.8)
  • Image Circle
    φ30mm
  • Optical coatings
    Multi-coated
  • Thread
    Optical tube side mounting thread: 54mm P=0.75mmCamera side mounting thread: 48mm P=0.75mm
  • Size
    Φ58×61mm
  • Weight
    272g
  • Thread
    Optical tube side mounting thread: 63mm P=1mmCamera side mounting thread: 54mm P=0.75mm
  • Size
    Φ78×46mm
  • Weight
    208g
  • Thread
    Optical tube side mounting thread: 48mm P=0.75mm
  • Camera installation
    Can be attached directly to Nikon F mount(A conversion adapter (commercially available) is required for Z mount.)
  • Size
    Φ64×16mm
  • Weight
    46g

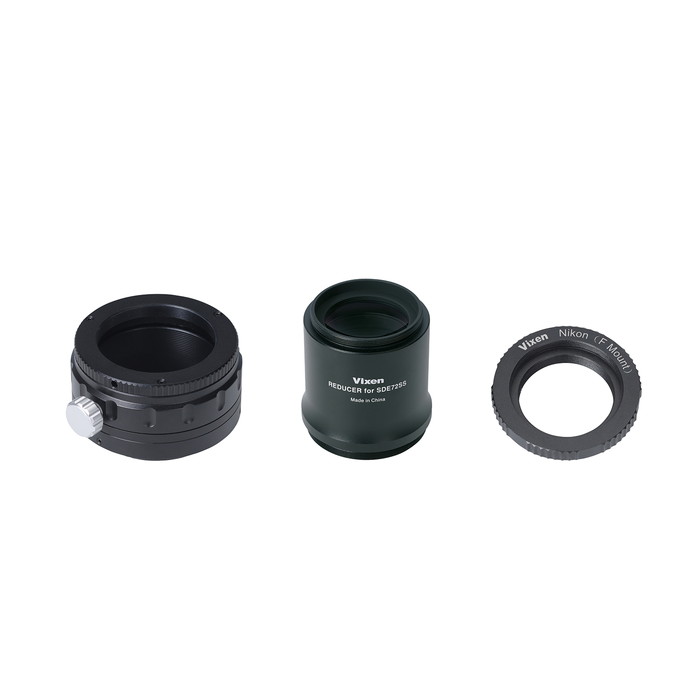

Set Contents

  • Reducer for SDE72SS
  • Camera Rotater

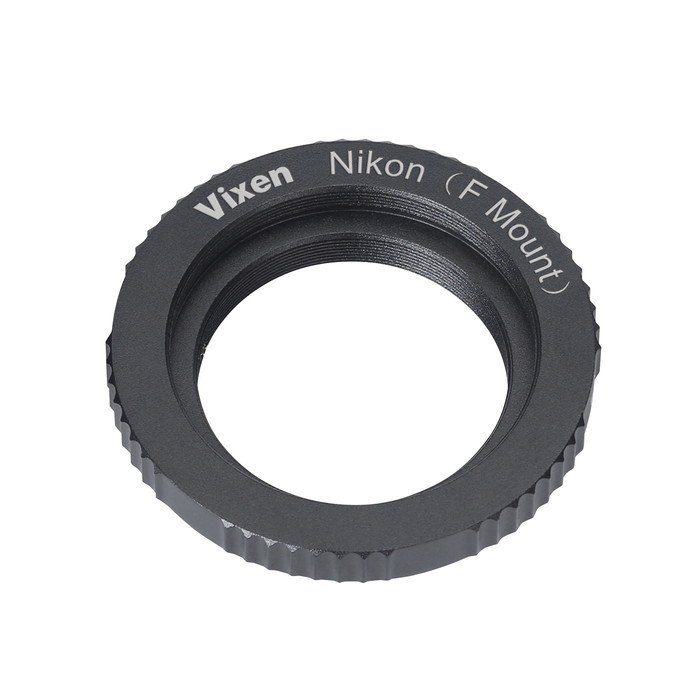

  • Camera mount 48mm for Nikon F
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
