Vixen Telescope M54 Ring
loading
Suggested retail price: Contact local dealer
- JAN
- 4955295387557

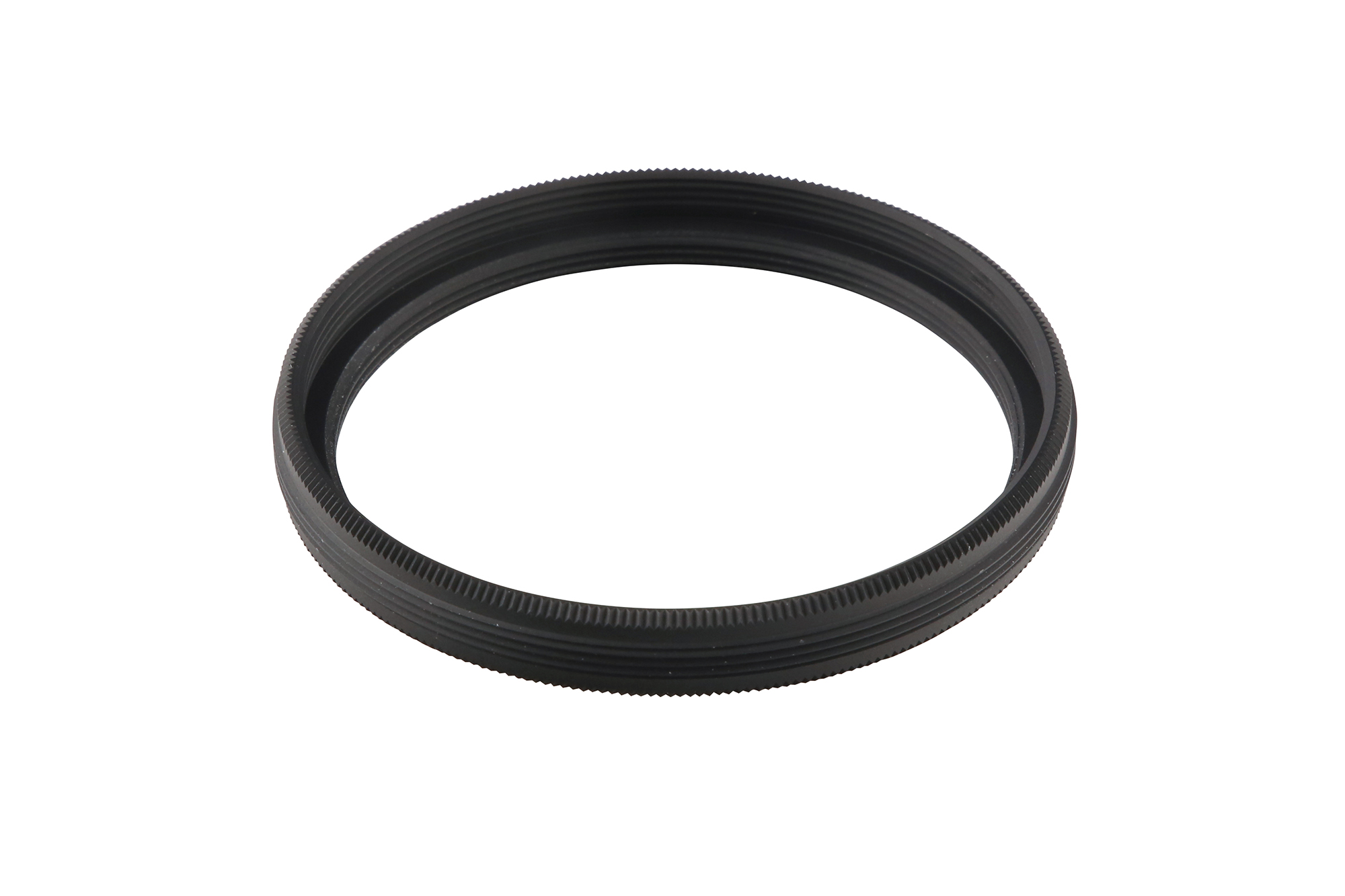

M54mm conversion ring for camera adapter 60 for M48
It allows you to attach a CMOS imaging camera equipped with M52 threads by replacing the inner 48mm thread ring supplied with a Camera Adapter 60 for M48 with this.
Vixen Telescope M54 Ring Description
-
Suited for CMOS Cameras featuring Full-frame Sensors

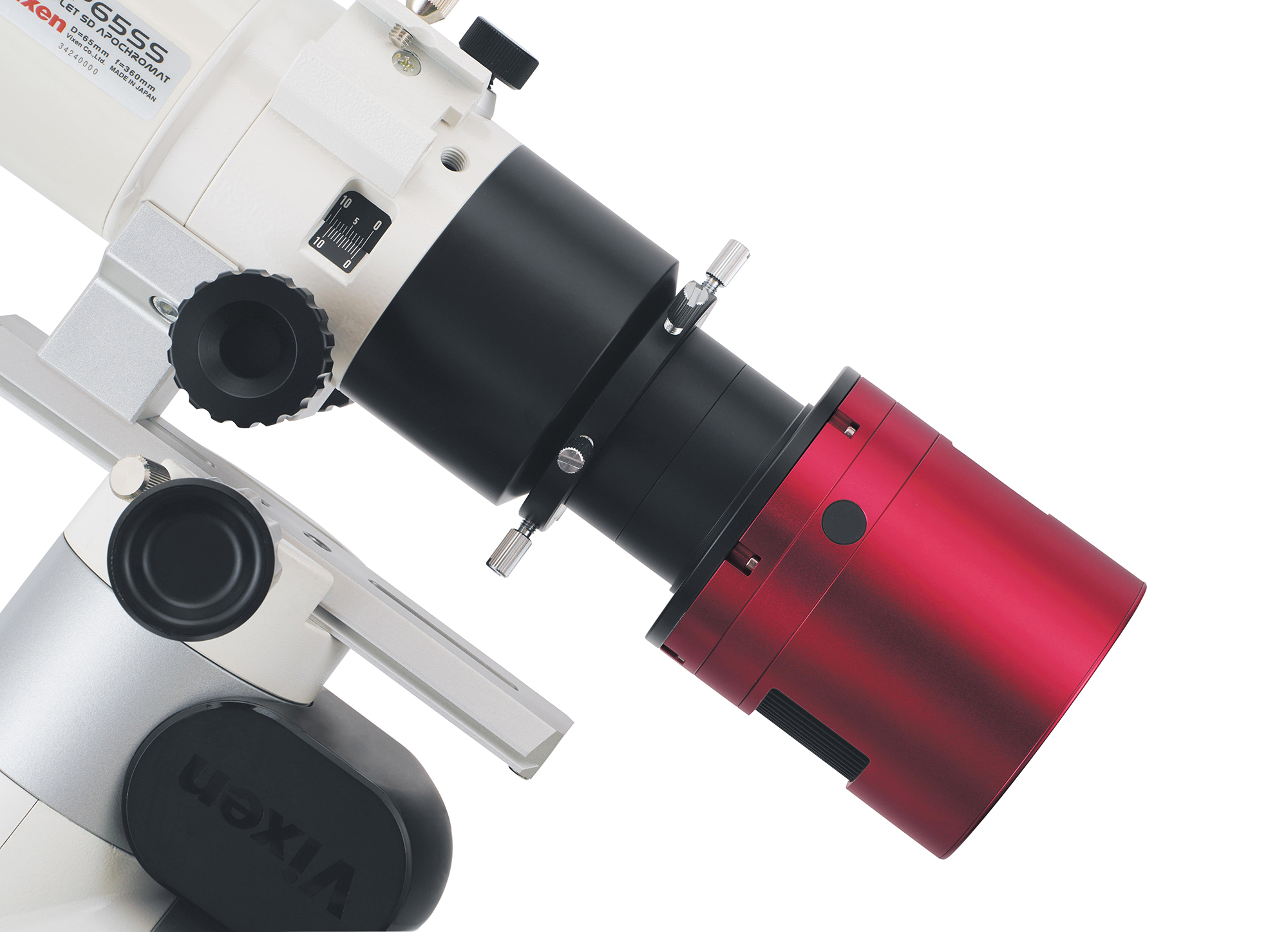

In combination with the Camera Adapter 60 for M48 (sold separately), you can attach an instrument or accessory with 54 mm (pitch 0.75mm) threads to the focusers of Vixen optical tubes. This setup helps minimize vignetting caused by camera accessories when imaging with a full-frame sensor or dual-chip CMOS camera.
-
Compatible with Commercially Available Filters
When used in conjunction with an M56 Filter Conversion Adapter 48/52 (sold separately), commercially available 48 mm or 52 mm camera lens filters can be attached.
Cannot be used in combination with the Collector PH, Extender PH, Coma Collector 3, or SDP Reducer. -

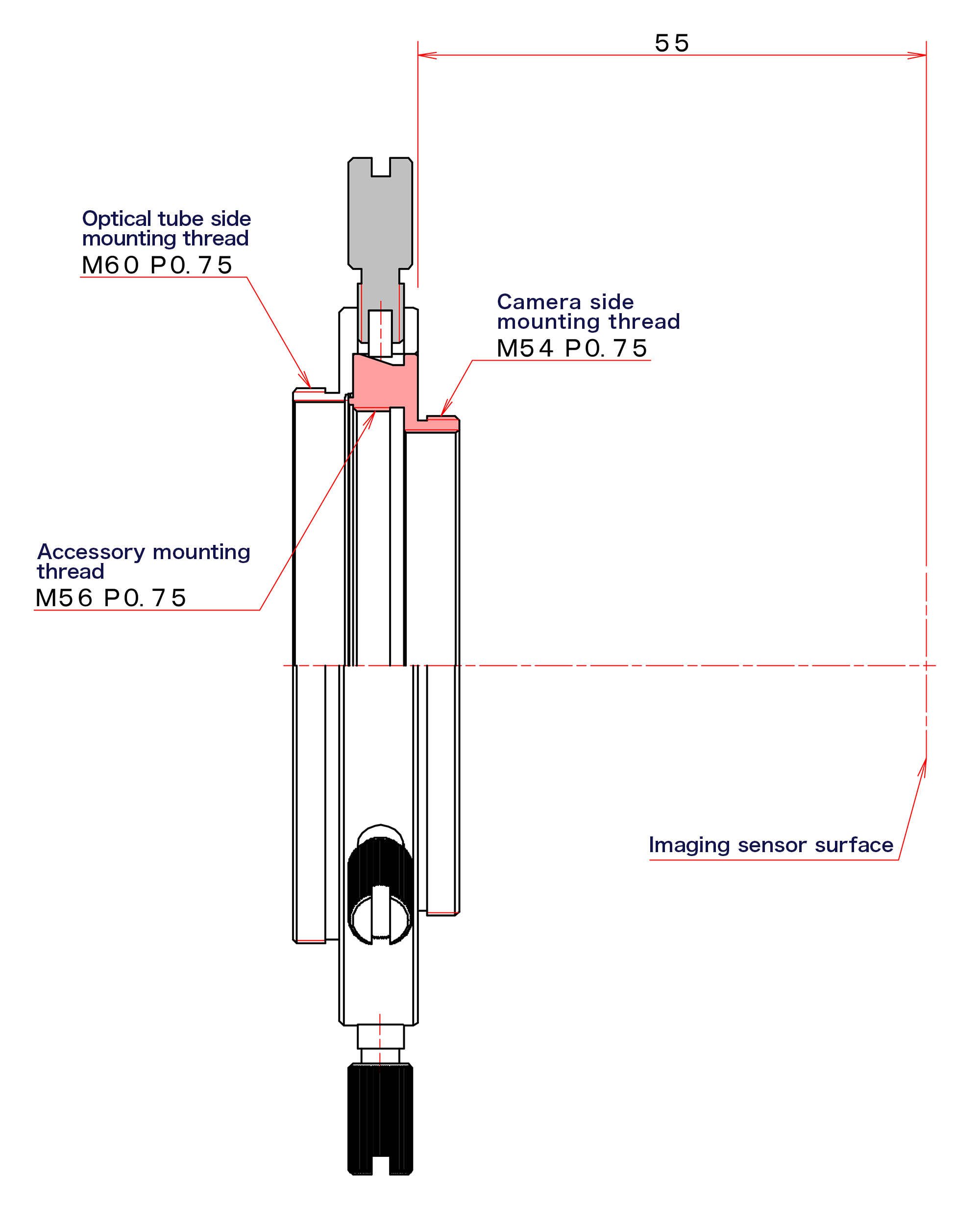

Dimensions (when used with Camera Adapter 60 for M48)
Specifications
M54 Ring
-
ThreadAccessory mounting thread (inside): 56mm P=0.75mmCamera side mounting thread: 54mm P=0.75mm
-
Compatible partsCamera Adapter 60 for M48*
-
Sizeφ68×12mm
-
Weight23g
