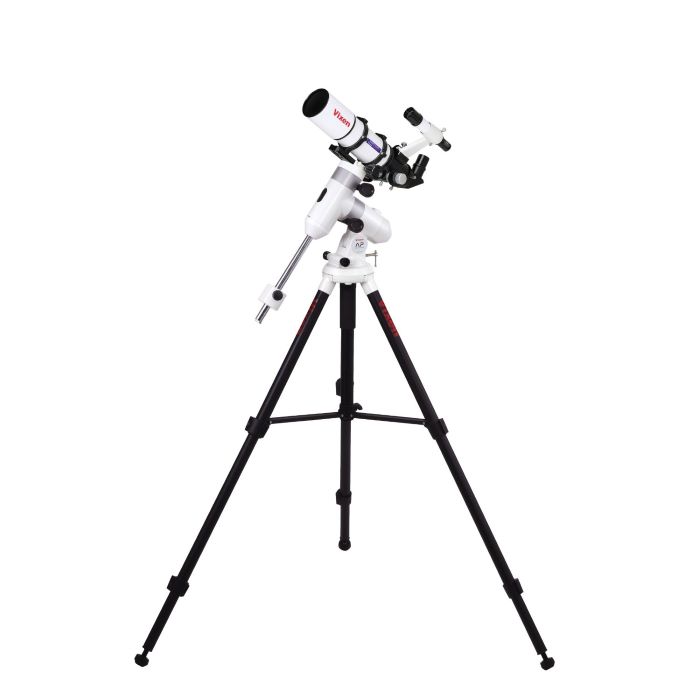

Vixen Telescope AP-SDE72SS

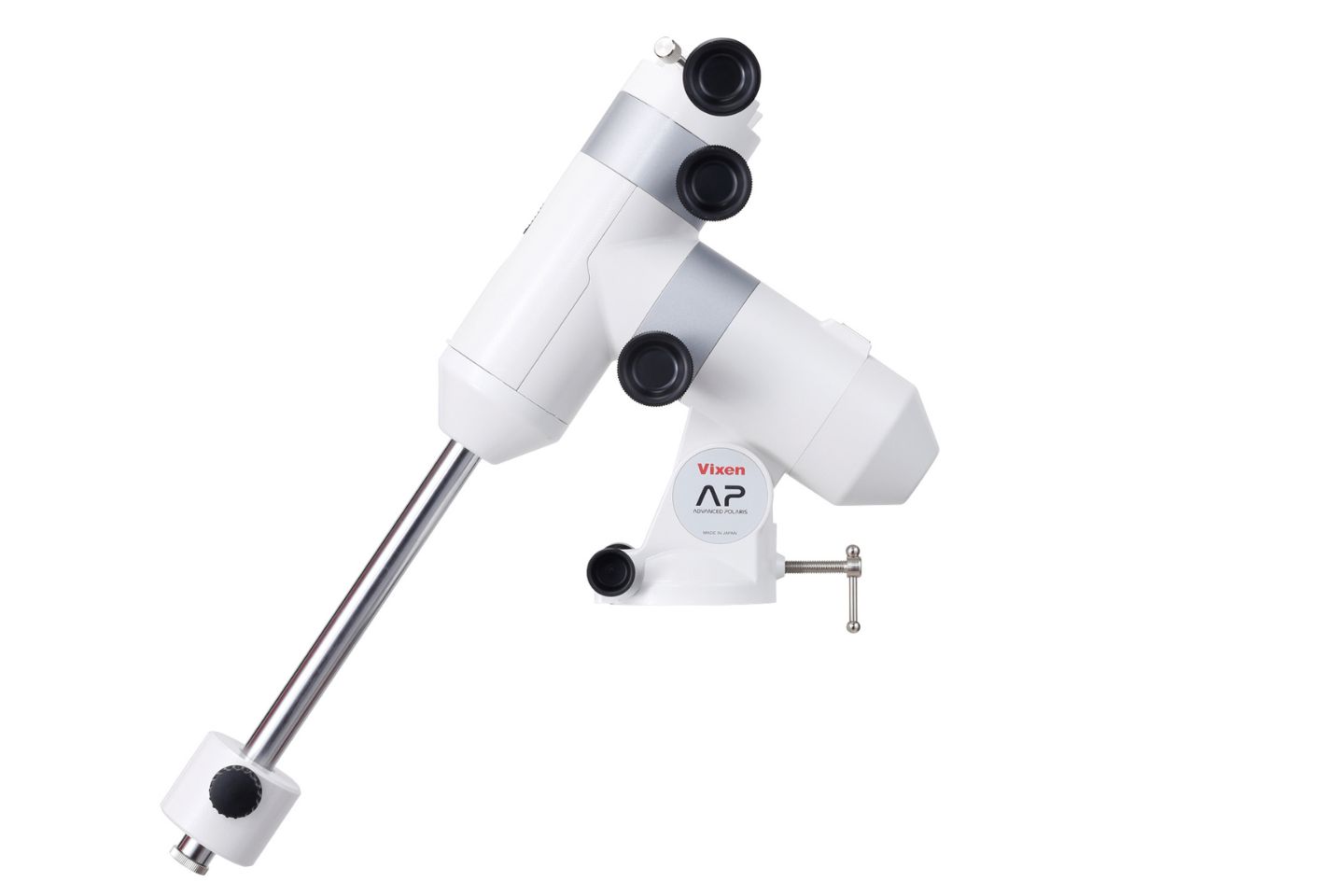

AP Equatorial Mount

A lightweight, easy-to-operate equatorial mount designed to satisfy both beginners and experienced amateurs. Its friction-stop mechanism allows the telescope tube to be moved freely by hand to point at any celestial object. This feature makes operation extremely simple, despite the unique tracking motions required for equatorial mounts. Once a celestial object is acquired using the friction control, you can track it manually with a fine adjustment knob on the right ascension. The polar axis can be easily aligned by attaching an optional Polar Meter to the mount, enabling even first-time users to engage in serious astronomical observation.

Sleek and Modern Appearance

Featuring a smooth, streamlined design with no protrusions, it dispels the difficult-to-handle image often associated with telescopes. Combined with its lightweight body of just 3.6 kg (counterweight not included), it allows a full-fledged astronomical telescope to be handled with ease.

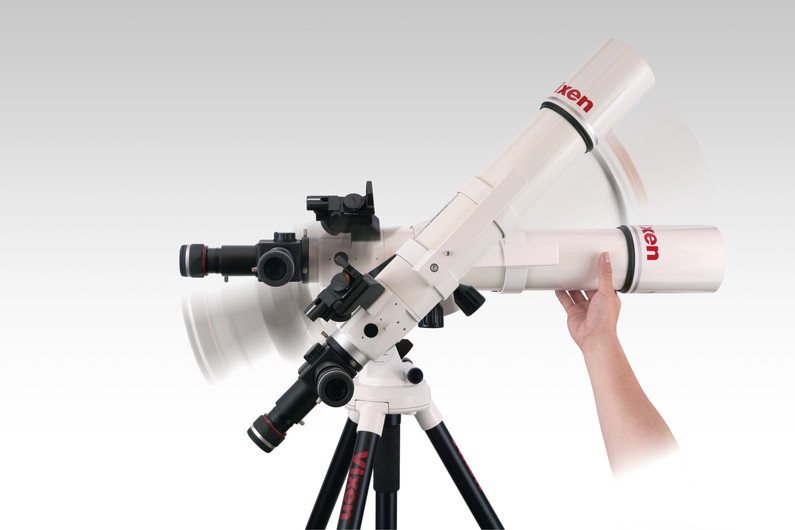

Intuitive Friction-stop Control

Thanks to the friction stop mechanism, you can intuitively point the telescope at a target object by moving the optical tube by hand.

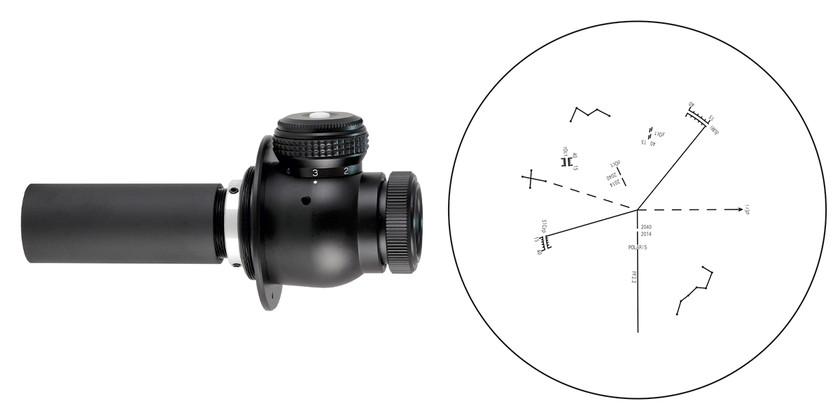

Easy and Accurate Polar Alignment

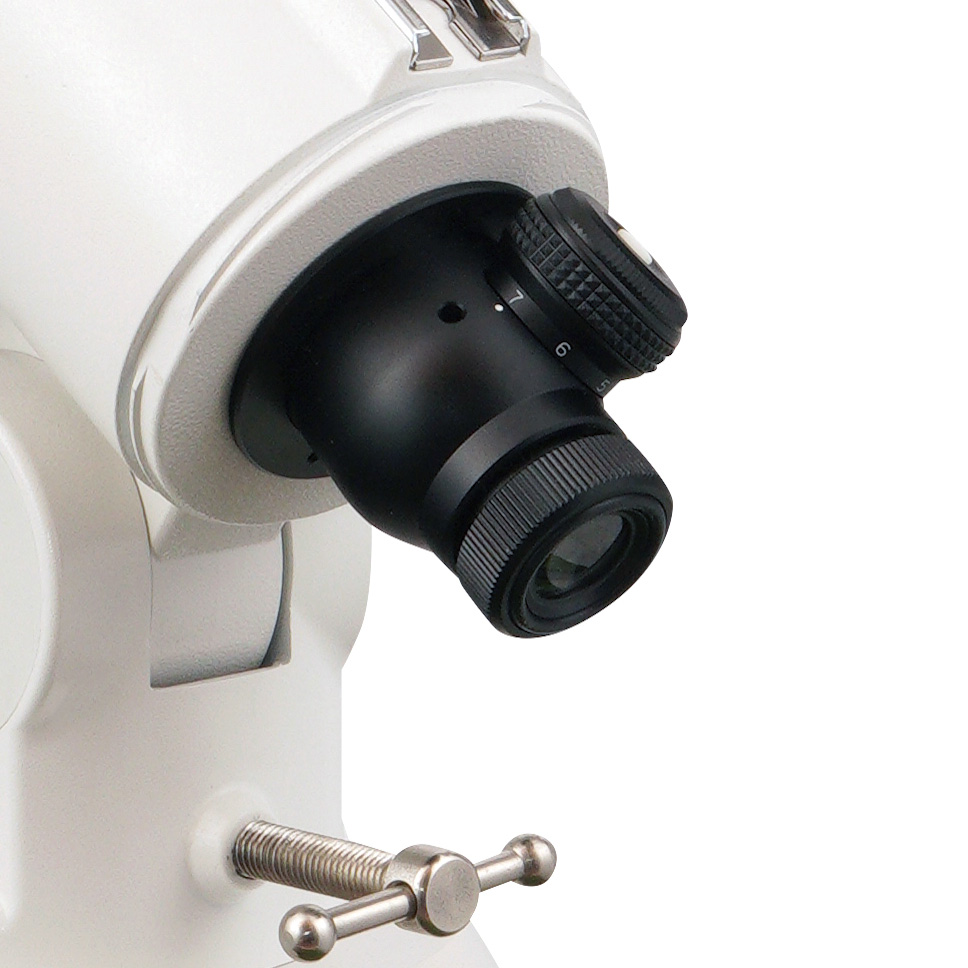

The AP mount is compatible with the polar alignment scope PF-LII (sold separately), allowing you to set the mount’s polar axis accurately and easily.

It offers a method in which three reference stars are aligned with designated positions on the scale inside the polar scope to determine the direction to the polar axis (compatible with both Northern and Southern Hemispheres).

The polar scope features built-in dark-field illumination, which makes the scale appear red against the night sky. You can adjust the brightness in 8 steps to your preferred level. It also has an automatic shut-off function to prevent battery drain from accidentally leaving the switch on.

Vixen offers a free "PFL Assist" app for smartphones and tablets, designed for use with the polar alignment scope PF-L II. The app assists with polar alignment by displaying the polar scope’s reticle on your device screen and showing its correct orientation. This allows you to align the reticle pattern of your polar scope with the alignment stars visible through it.

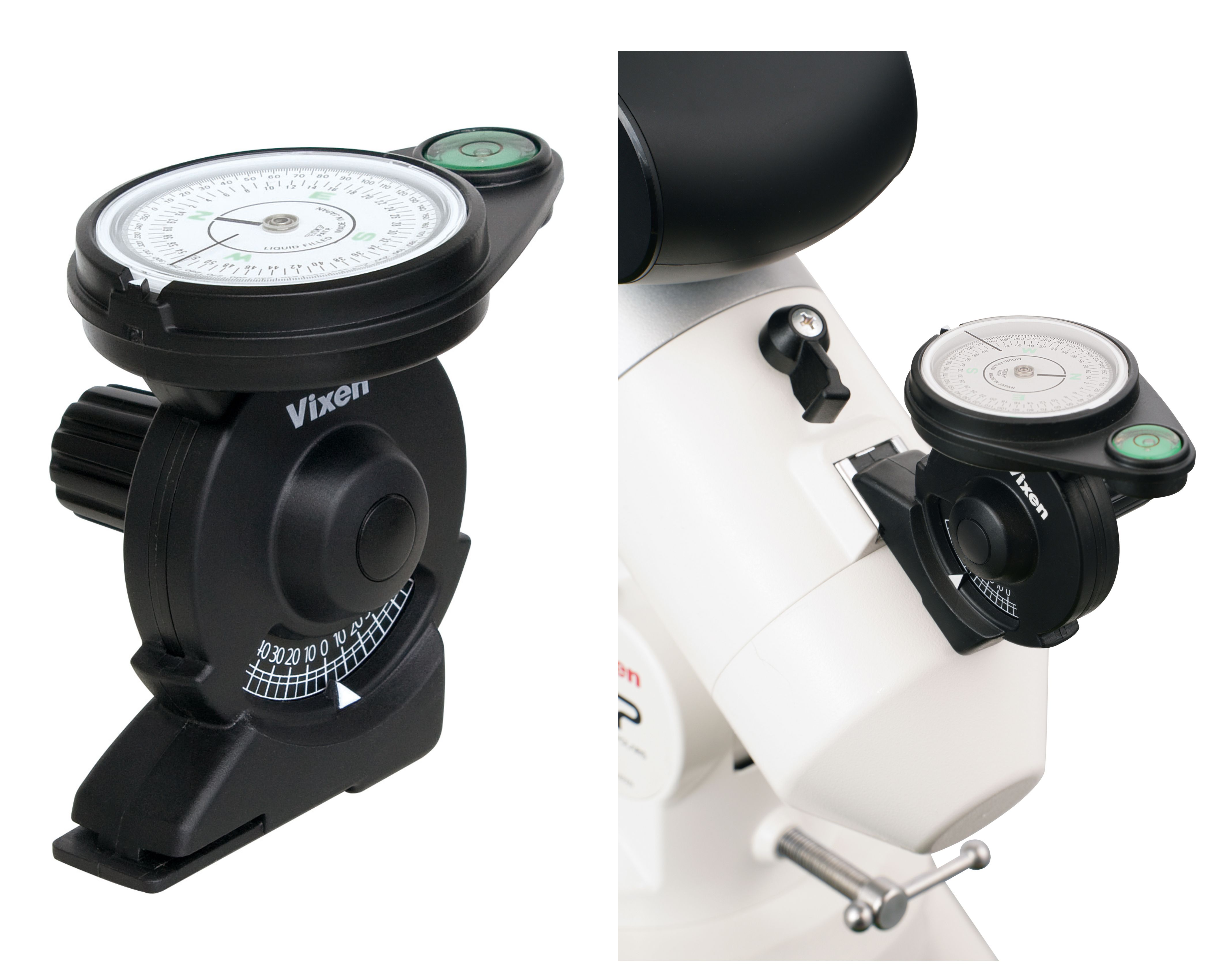

Quick, Rough Polar Alignment

The mount is compatible with a Polar Meter (sold separately), which provides easy and rough polar alignment. With its altitude scale and magnetic compass, even beginners can quickly turn the AP mount to the celestial pole.

For more precise polar alignment, an optional polar alignment scope PF-L II, can be used by referencing Polaris. However, the Polar Meter is particularly effective in locations where Polaris is behind obstructions and not visible.

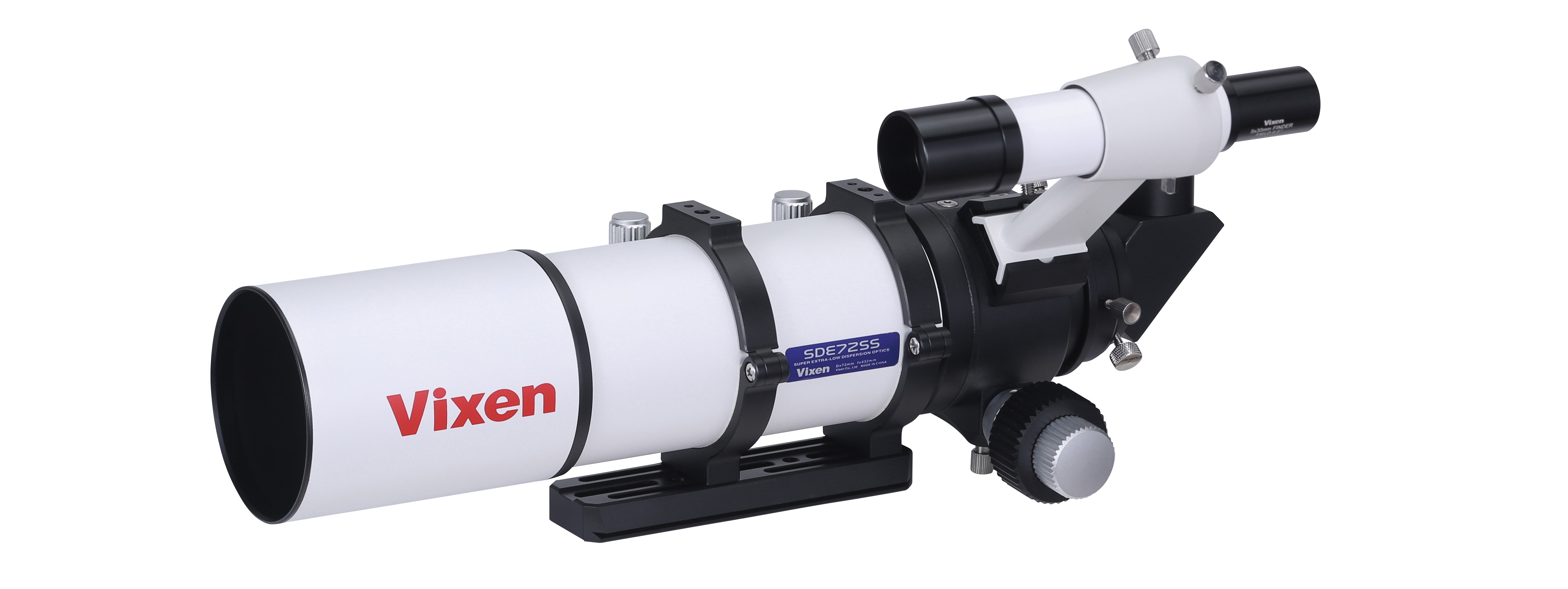

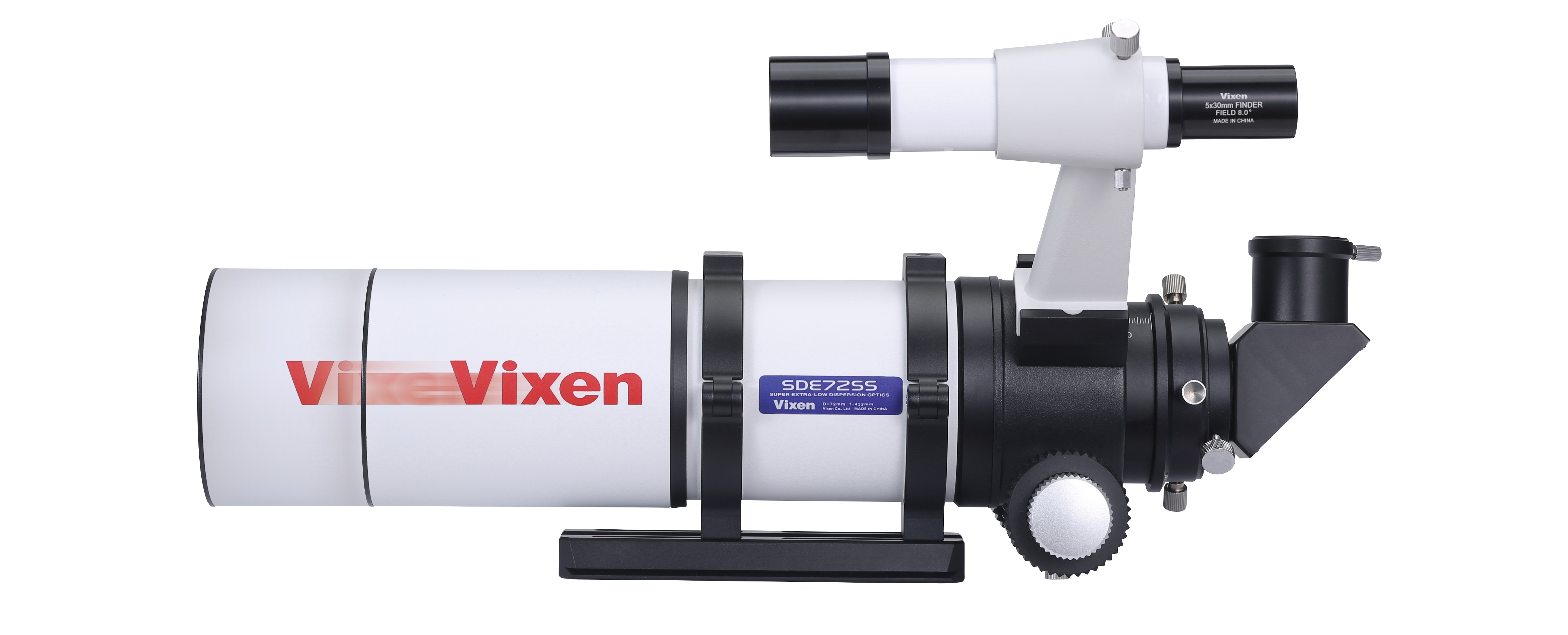

SDE72SS Optical Tube Assembly

The SD apochromatic lens suppresses chromatic aberration to an imperceptible level. Despite its short optical tube, the SDE72SS not only delivers sharp images in visual observation but also produces impressive astrophotographs of nebulae and star clusters when used with a dedicated focal reducer (sold separately).

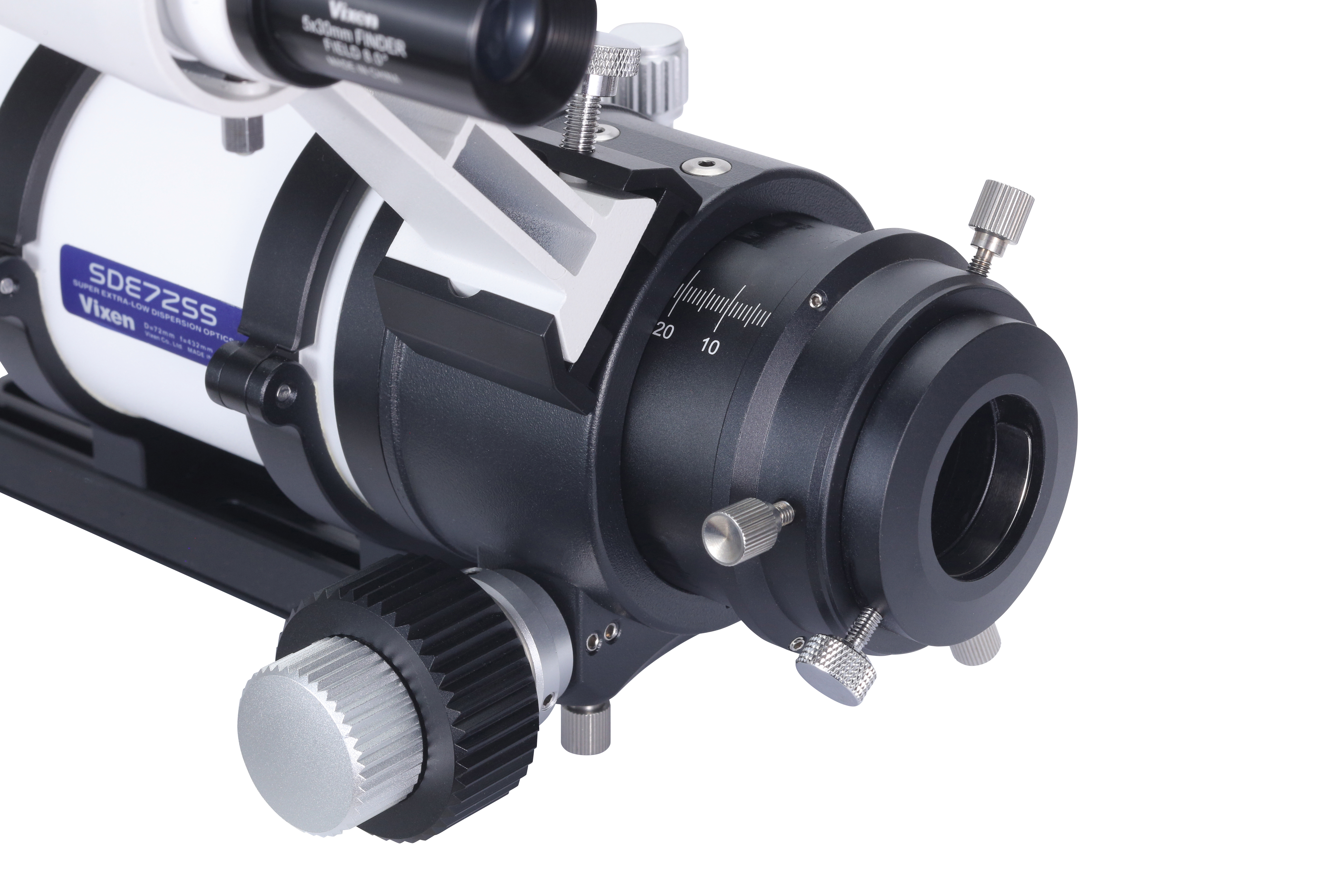

It features a dual-speed focuser that enables both coarse and fine adjustments, providing precise focusing for imaging.

The optical tube measures 365 mm in length and can be shortened to 307 mm when the dew shield is retracted. The optical tube weighs approximately 2.5 kg (net weight 2.2 kg) and is suited when combined with the AP mount.

For more information about the SDE72SS optical tube assembly, click here

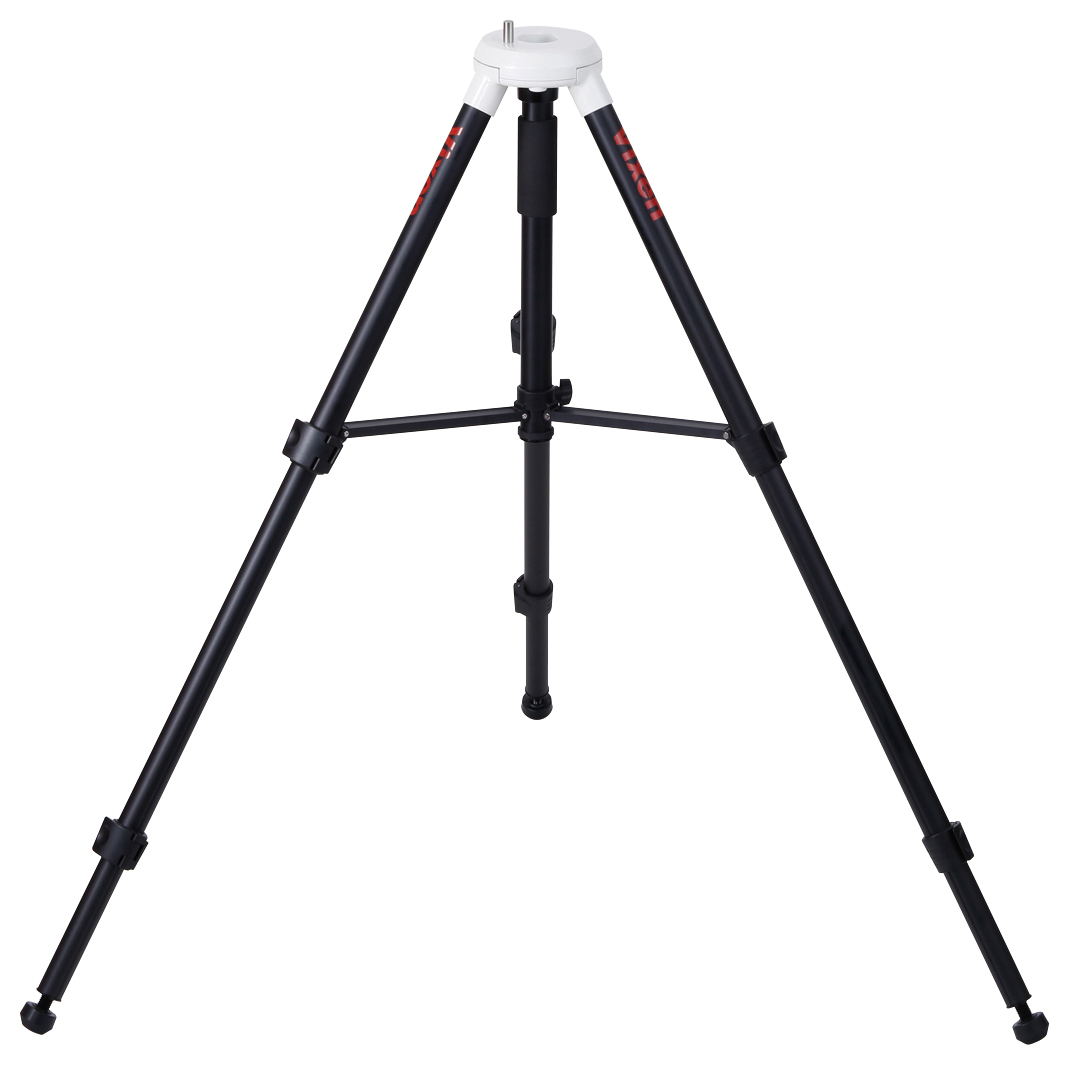

APP-TL130 Tripod

The compact APP-TL130 tripod features adjustable telescopic legs from 60 cm to 130 cm long, combining the portability of a camera tripod with the stability of an astronomical telescope tripod. The leg tips can be easily switched between metal spikes and rubber-capped feet by twisting them, reducing the risk of floor damage when used indoors.

Tool-free Quick Setup

No tools are required for assembly or disassembly, allowing quick and effortless setup and takedown at the observation site.
