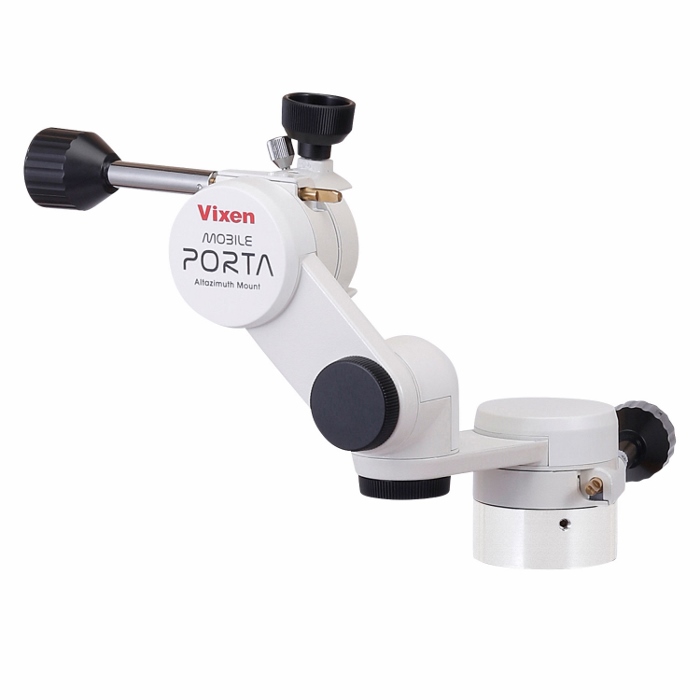

Vixen Telescope MOBILE PORTA Alt-azimuth Mount

Vixen Telescope MOBILE PORTA Alt-azimuth Mount —
Vixen Telescope MOBILE PORTA Alt-azimuth Mount
Vixen Telescope MOBILE PORTA Alt-azimuth Mount —
Vixen Telescope MOBILE PORTA Alt-azimuth Mount

loading

  • —

Suggested retail price: Contact local dealer

JAN
4955295399048

A highly portable alt-azimuth mount head for use with a camera tripod.

This is the mount head of a popular Mobile PORTA Alt-azimuth Mount, renowned for its lightweight, compact, and user-friendly design. To replace the originally equipped tripod with a commercially available tripod, it is equipped with a general tripod adapter usable for most camera tripods.

Vixen Telescope MOBILE PORTA Alt-azimuth Mount Description

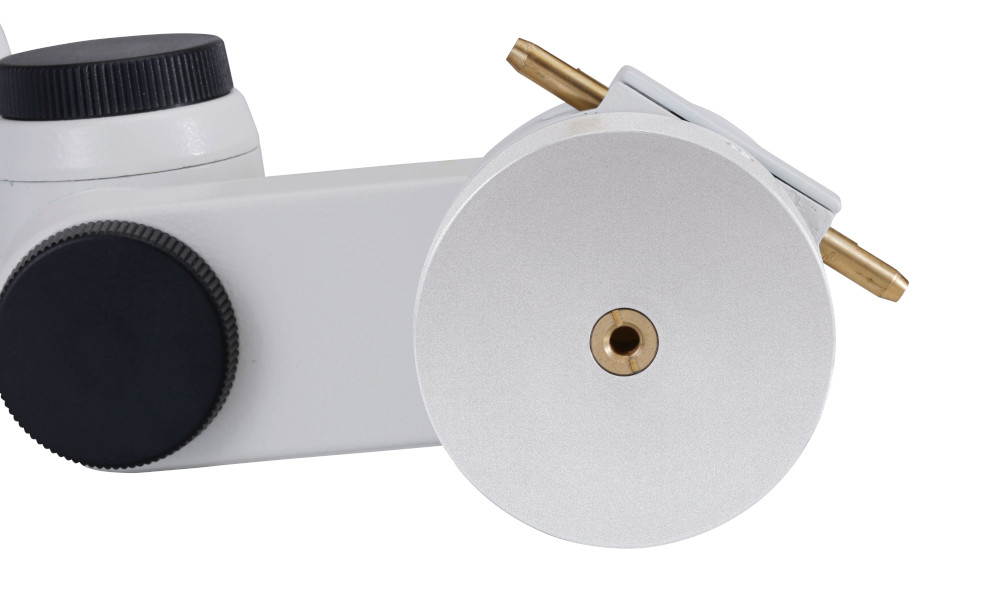

  • Equipped with a Screw Thread for Camera Tripods

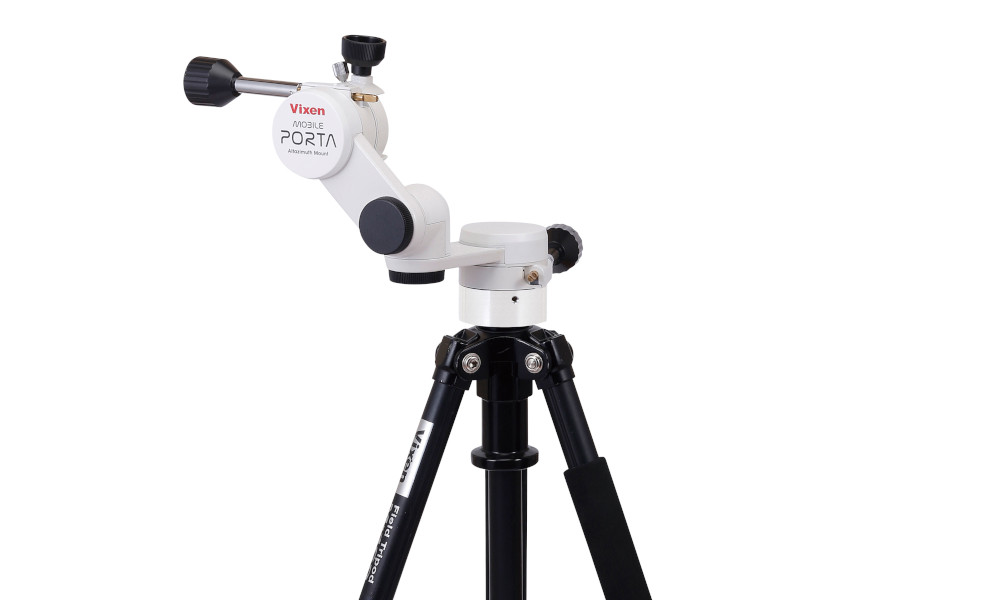

    By mounting this mount head on a commercially available camera tripod, you can easily use it for astronomical observation.
    A tripod is not included with this product. Please prepare a compatible camera tripod separately.

    *The functions of this product are identical to those of the Mobile PORTA Alt-azimuth Mount with Tripod.
    *Compatible camera tripods are limited to those equipped with a 1/4-inch or 3/8-inch mounting screw.
    *This product cannot be directly attached to tripods designed for Vixen astronomical telescopes.

Specifications

MOBILE PORTA Alt-azimuth Mount

  • Mount Type
    Foldable altazimuth mount
  • Up/down/left/right movement
    Whole-circle micro movement (90 teeth) with fine adjustment handlesFriction stop control mechanism with the tightness adjustment
  • Attaching and detaching a telescope tube
    Dovetail mount head (with safety screw to prevent an optical tube from falling)
  • Load capacity
    Maximum loading weight: Approx. 3.5kg depending on a tripod used
  • Tripod mounting base
    Equipped with a camera tripod adapter. Can be mounted on an optional or commercially available camera tripod(with a 1/4 inch, or or 3/8 inch screw)
  • Size
    19×15×17cm (excluding protrusions)
  • Weight
    1.1kg
  • others
    The main functions, excluding the tripod, are equivalent with those of the Mobile Porta Altazimuth Mount (with tripod).
    It is not compatible with direct attachment to a telescope tripod.
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
