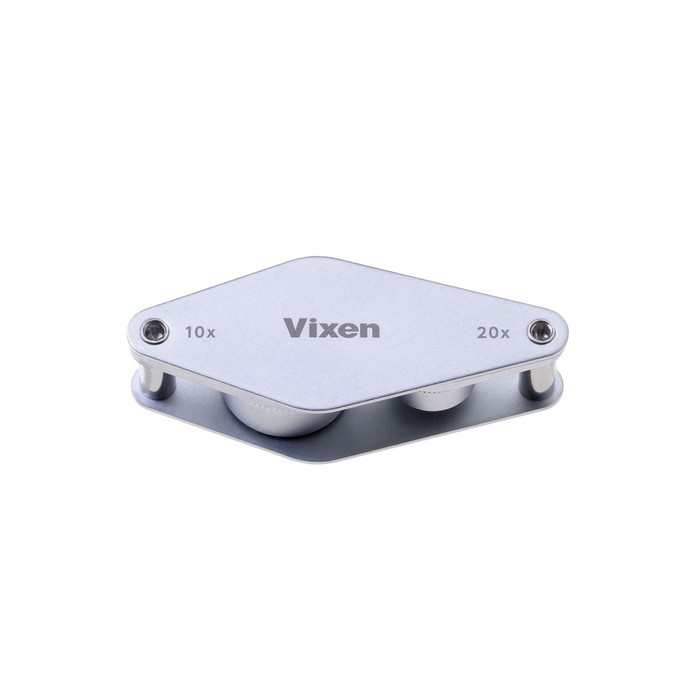

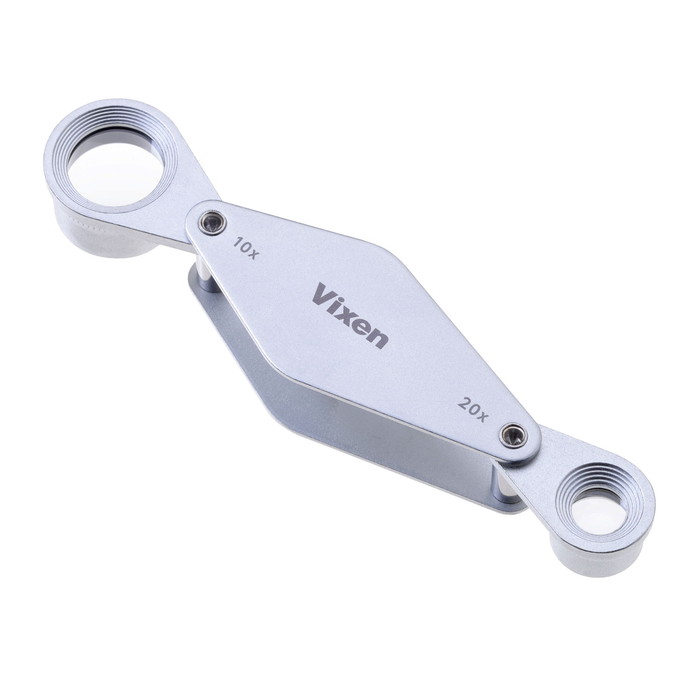

Vixen Magnifier Metal Holder Magnifier DL12-7
loading
Suggested retail price: Contact local dealer
- JAN
- 4955295413478

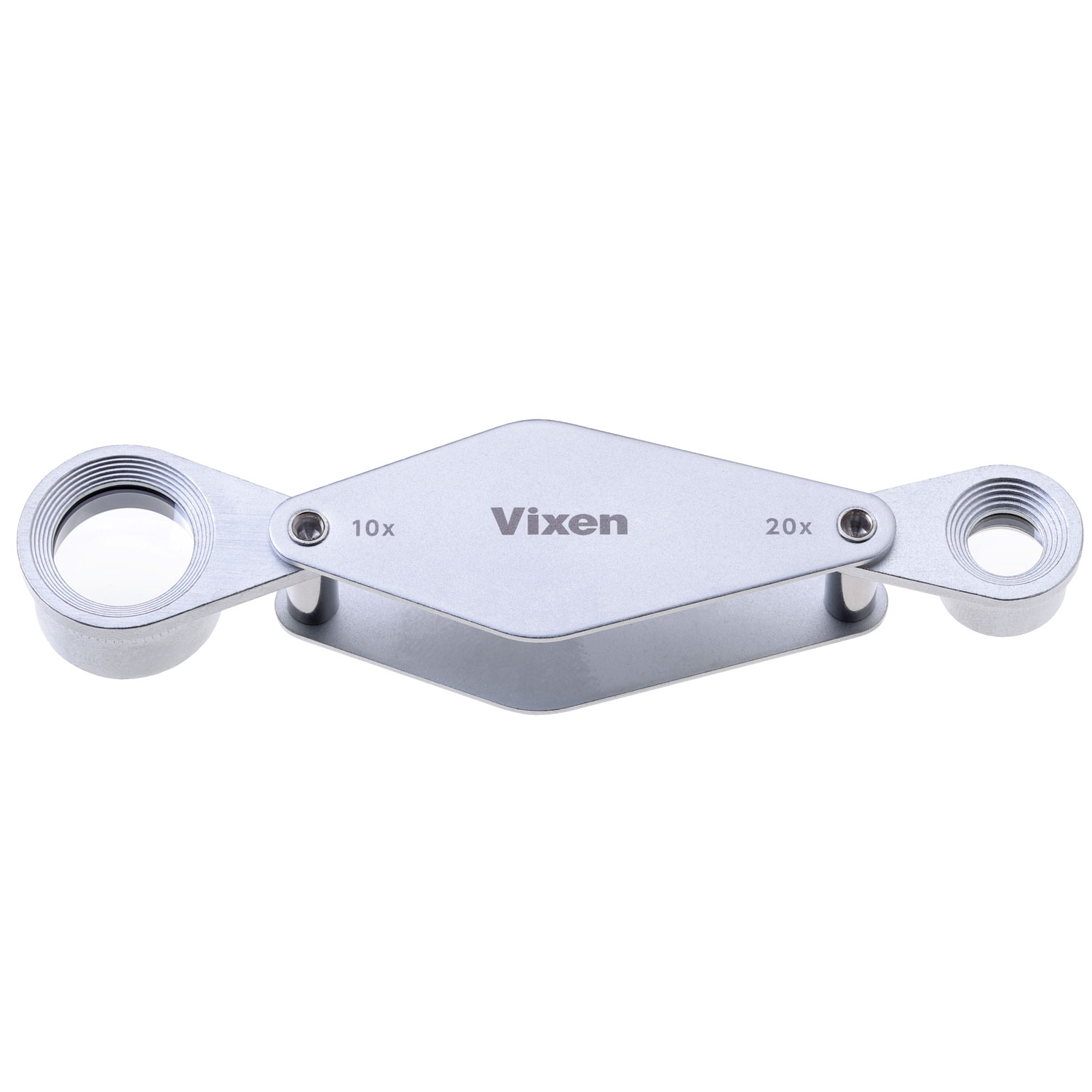

Choose between 10x and 20x magnification for your purpose. Dual lenses allow you to switch between professional perspectives.
This dual lens configuration features two magnifying lenses: a standard 10× lens with a 12 mm diameter, and a high-magnification 20× lens with a 7 mm diameter.
Vixen Magnifier Metal Holder Magnifier DL12-7 Description
-
A 2-in-1 design that meets all your on-site viewing needs.
● 10x Magnification for Viewing the Entire Image
The 10x lens with a 12 mm diameter is ideal for viewing the entire object with a wide field of view. First, use 10x to locate areas of interest. The doublet lens configuration provides a clear, distortion-free view.
● 20x Magnification for Viewing Details
The 20x lens with a 7 mm diameter offers high magnification for examining minute structures that cannot be discerned with the 10x magnification.
It excels as a crucial "decisive tool" for identifying inclusions in gemstones, detecting minute scratches, and other critical details. This also features a doublet lens configuration, producing a good image even at high magnification. -
No need to switch between instruments for different magnification. A seamless observation experience.
● Geological Surveys & Plant Observation
Ideal for fieldwork where you want to minimize equipment load. From observing rock surfaces (10x magnification) to identifying crystal structures (20x magnification), this single item handles everything.
● Printing & Design Verification
Use 10x magnification for checking minute text like annotations or image reflections, and 20x magnification for rigorous checks of halftone dot shape and ink coverage. The magnification can be instantly changed to suit your needs.
● Antiques & Appraisal
In addition to reading inscriptions and confirming the overall image, check subtle features related to authenticity at 20x magnification. Smoothly supports a professional appraisal workflow. -

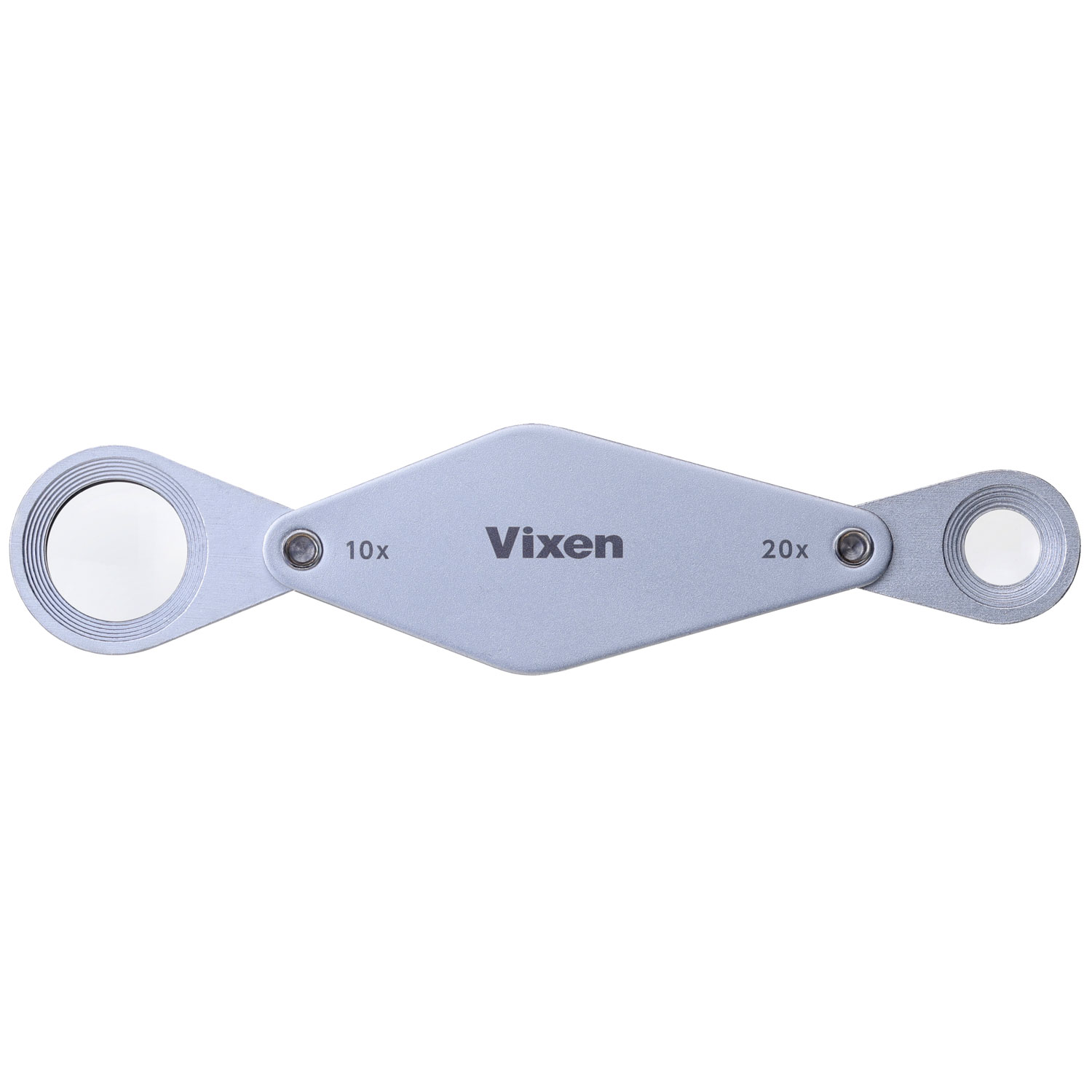

Two features in a compact metal housing.

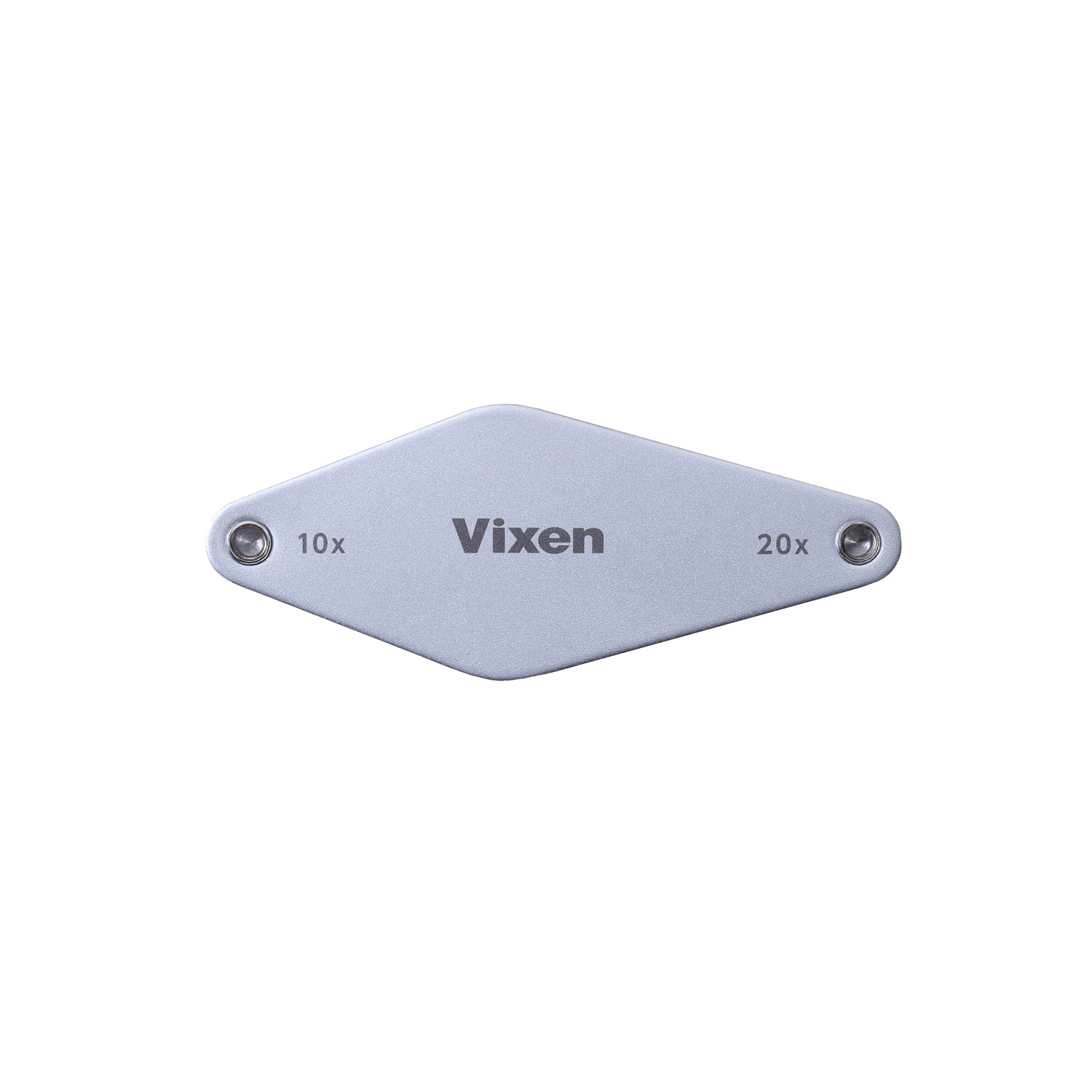

●Compact
Despite housing two lenses, it's extremely compact when stored, measuring just 58.5 mm. It won't take up much space in your pocket.
●Robust Metal Cover
Features a highly durable revolving metal cover built for frequent use. It protects the lenses while providing a moderate weight (35 g) to help reduce hand shake.
●Made in Japan
Each of the two lenses has undergone precise adjustments, ensuring reliable performance.
Specifications
Metal Holder Magnifier DL12-7
-
TypeMetal holder magnifier
-
Lens diameter / Effective diameter12 mm、7 mm
-
Magnification (Clear vision dustance)12 mm: 10x, 7 mm: 20x
-
Lens materialGlass lens (2-element lens)
-
OthersRevolving lens cover
-
Dimensions58x23x16 mm (when stored)
-
Weight35 g
