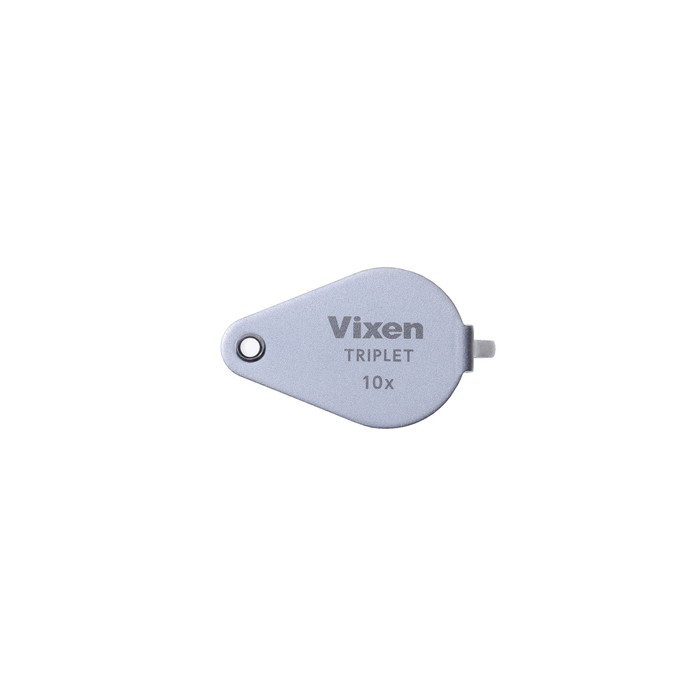

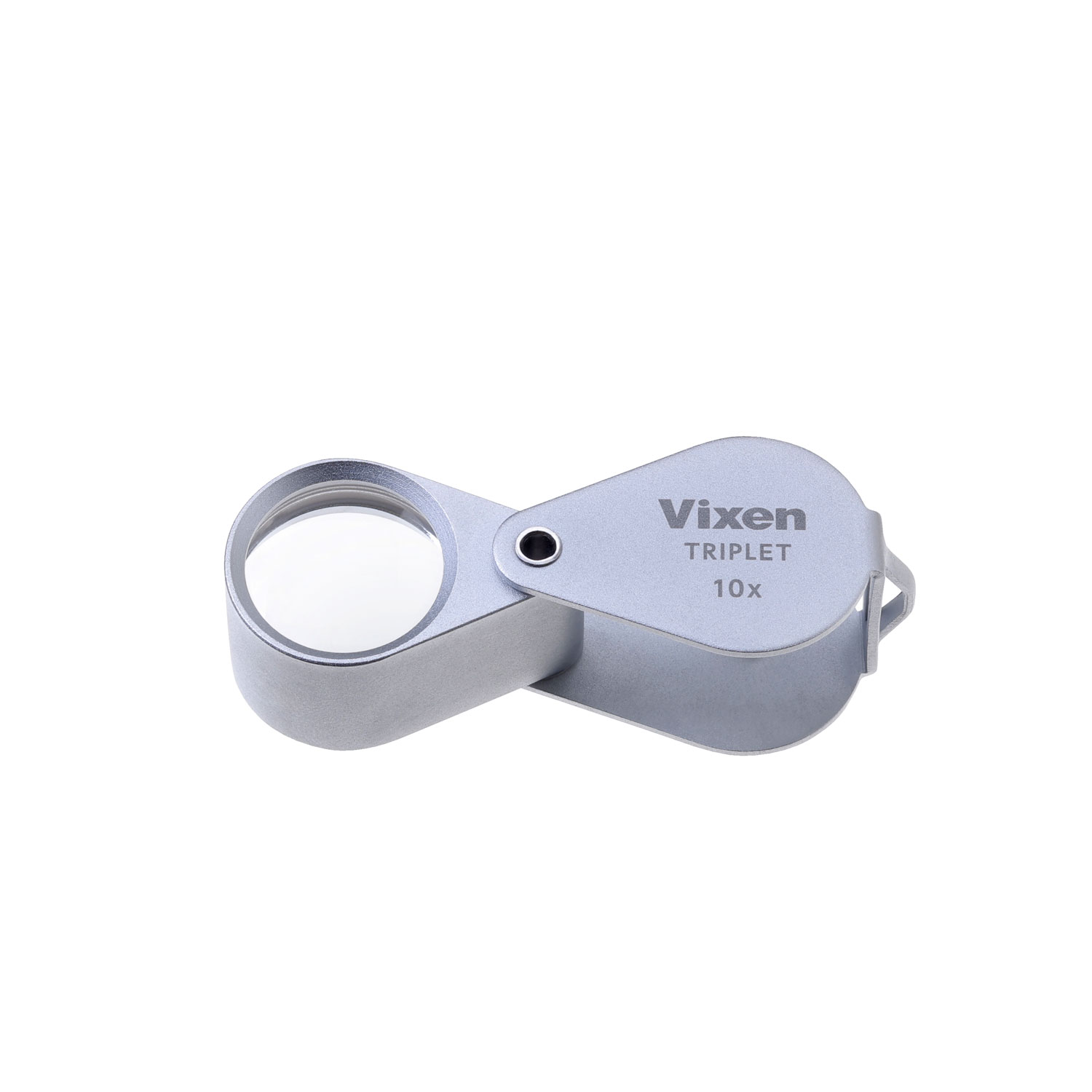

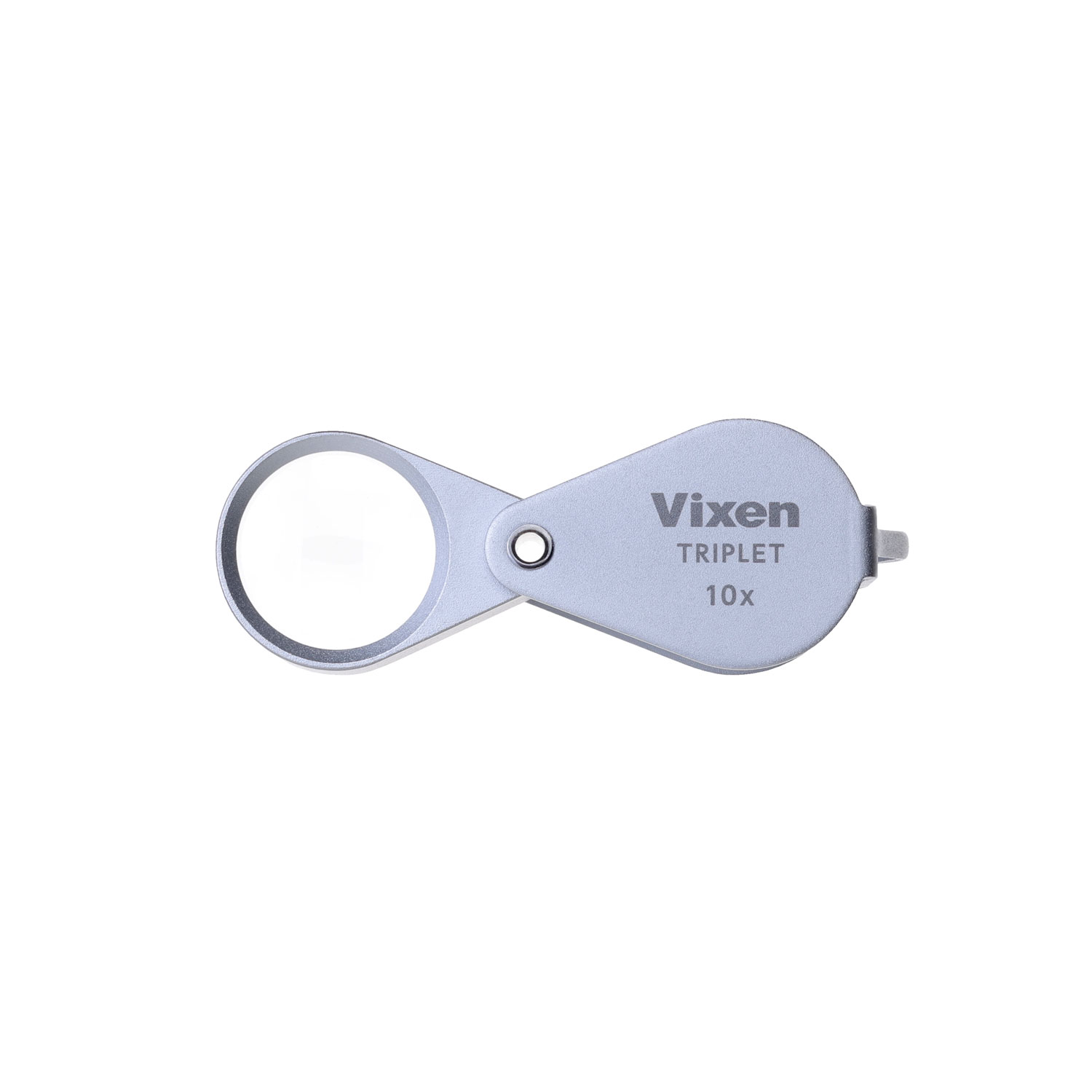

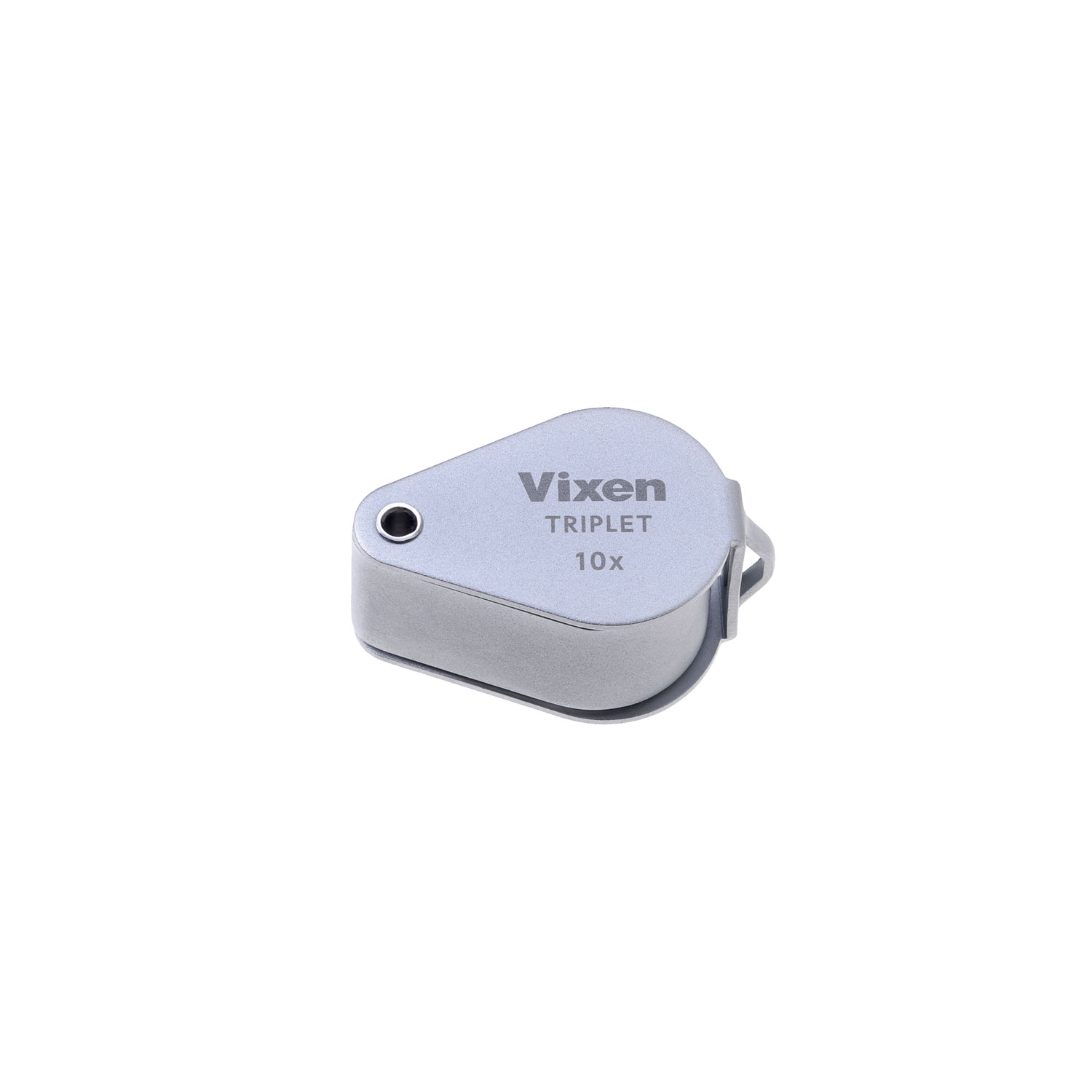

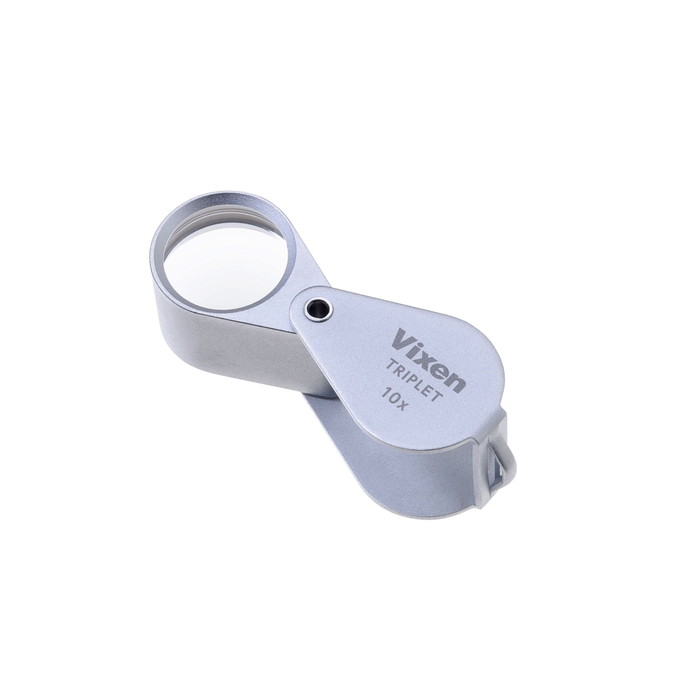

Vixen Magnifier Metal Holder Magnifier DL17
loading
Suggested retail price: Contact local dealer
- JAN
- 4955295413492
A wide field of view that promises versatility and ease of use. The optimal solution for a 10x magnifier with corrected chromatic aberration.
It features a 17 mm lens diameter and a 3-element achromatic lens. An essential tool for professionals, delivering optimal clarity and accuracy even at the edges of the field of view.
Vixen Magnifier Metal Holder Magnifier DL17 Description
-
Achromatic lens with no distortion and no color fringing.
It features a triplet (achromatic) lens composed of three optical glass elements with different refractive properties.
This effectively corrects chromatic aberration (color fringing) and optical distortion, which tend to occur in single- or double-element lenses. -
Lens diameter: 17 mm
With a 17 mm lens diameter, it ensures excellent visibility without compromising portability. Compared to 12 mm diameter lenses (such as the DL12), it offers a wider field of view, making it easier to locate objects and reducing eye strain during prolonged use―an ideal size for everyday applications.
-
The precise "10x" magnification, required in every field.
● Geological Surveys & Plant Observation
An essential tool for fieldwork, such as confirming mineral crystals and determining rock grain size. Allows for accurate observation of object color and shape even under natural light.
● Jewelry & Antiques (Appraisal & Expertise)
For initial checks of gemstones such as diamonds, and verification of inscriptions on antiques. The industry standard of "10x magnification" and "distortion-free triplet lens design" is the first step to reliable appraisal.
● Quality Control & Inspection
For crack inspection in manufacturing and checking the finish of printed materials. Allows for speedy checks with a wide field of view. -
Quality you can rely on
●Robust Metal Cover
Features a highly rigid metal cover designed to withstand harsh field environments. Lts balanced weight helps supresss hand shake and supports stable observation.
●Simple Design
A functional design that eliminates unnecessary decoration. The simple revolving metal cover reduces the risk of malfunction and ensures long-lasting use.
●Made in Japan
Manufactured under strict quality control, ensuring peace of mind with this Japanese-made product.
Specifications
Metal Holder Magnifier DL17
-
TypeMetal holder magnifier
-
Lens diameter / Effective diameter17 mm
-
Magnification (Clear view distance)10x
-
Lens materialGlass lens (achromatic, 3-element lens)
-
OthersRevolving lens cover
-
Dimensions36x21x19 mm (when stored)
-
Weight37 g
