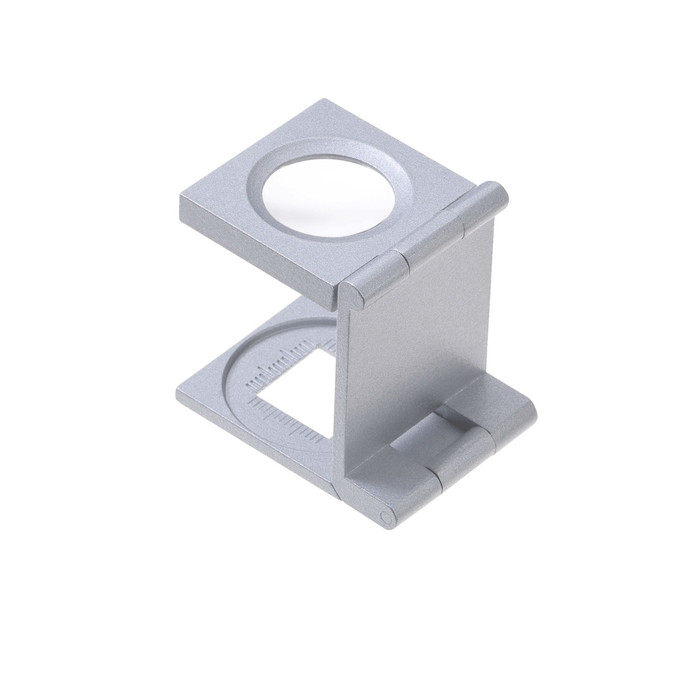

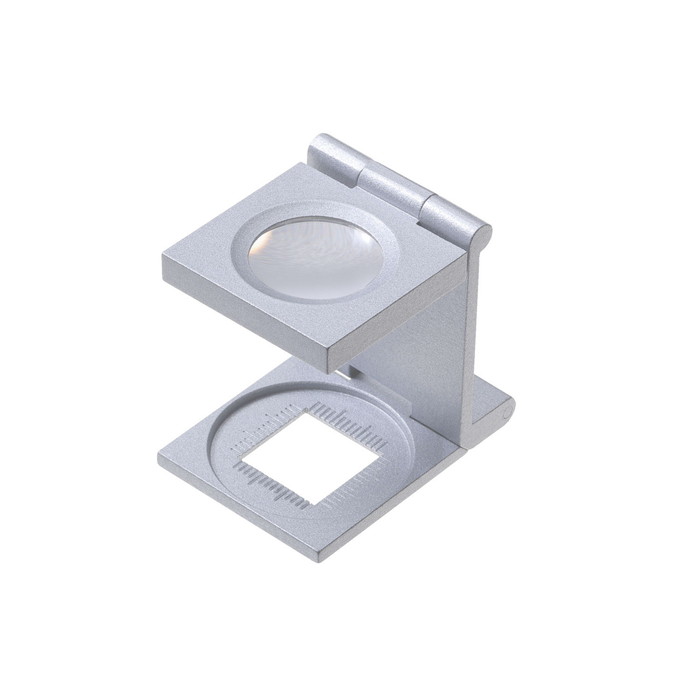

Vixen Magnifier Linen Tester Loupe DS20
loading
Suggested retail price: Contact local dealer
- JAN
- 4955295413546
Combining precise observation and measurement in a single device, the DS20 is a trusted standard tool chosen by professionals in the field.
Commonly known as a “linen tester”?a loupe used to inspect woven fabrics?this form was originally developed for counting threads in textile weaves. Today, it has become a trusted standard tool used by professionals in printing, quality control, appraisal, and other fields.
The DS20 is the smallest model in the Linen Tester series of loupes, inheriting this refined, time-proven design. Rather than being held in the hand, it is placed directly on the subject for viewing. Its exceptional stability provides reliable support for precise measurement and observation.
Vixen Magnifier Linen Tester Loupe DS20 Description
-
Ready to use simply by placing it, thanks to its fixed focus.
The loupe is designed to focus simply by unfolding it and placing it on the subject. Because it is completely unaffected by hand shake, it reduces eye strain even during extended inspections or precise observations. In addition, both hands remain free, allowing you to manipulate the object or use writing instruments while viewing.
-
Built-in scale for quantifying details

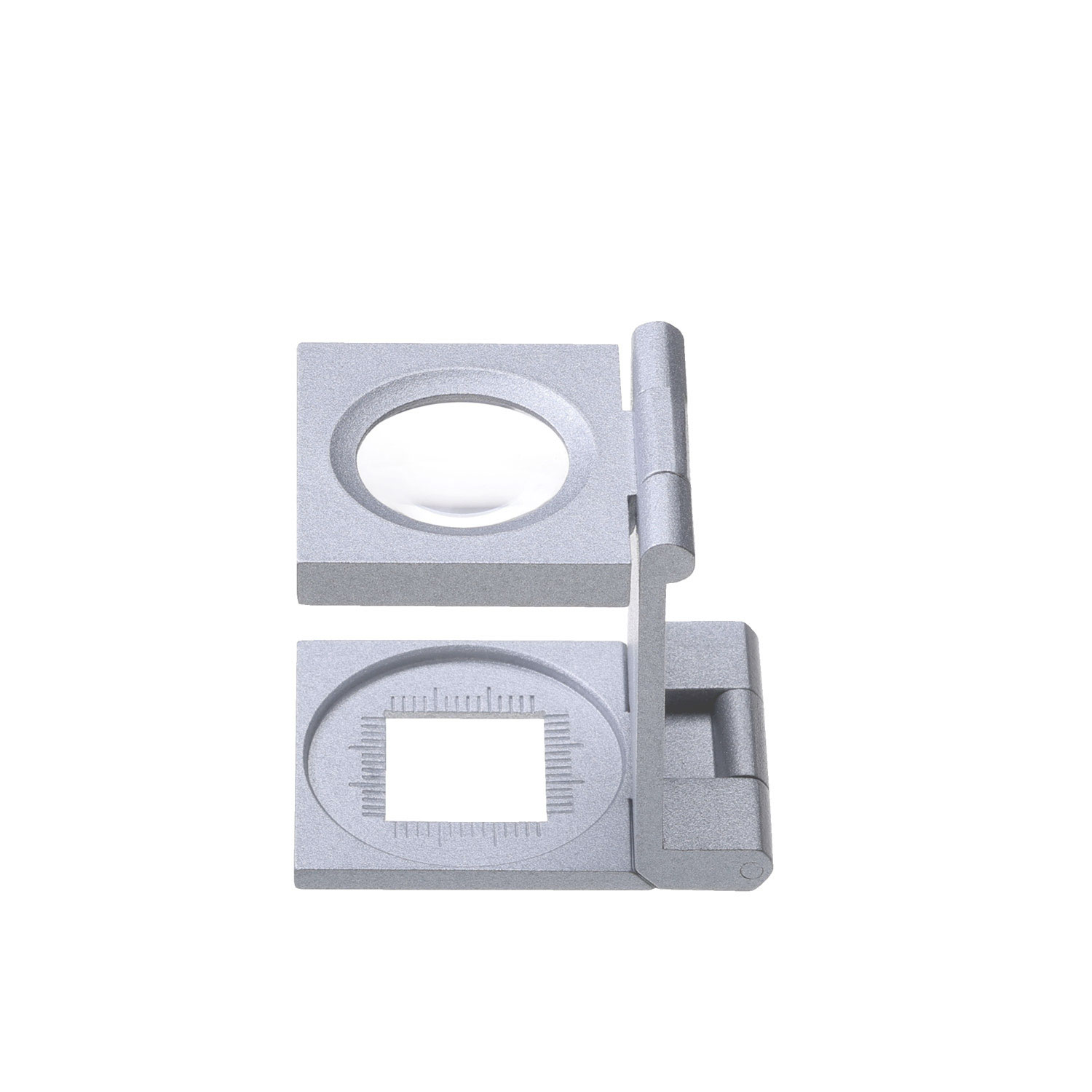

Measurable Loupe: The base is engraved with a high-precision 1 mm scale, allowing you to instantly measure the size of a magnified object or count dots (halftone screens or weave patterns) within a defined area.
-

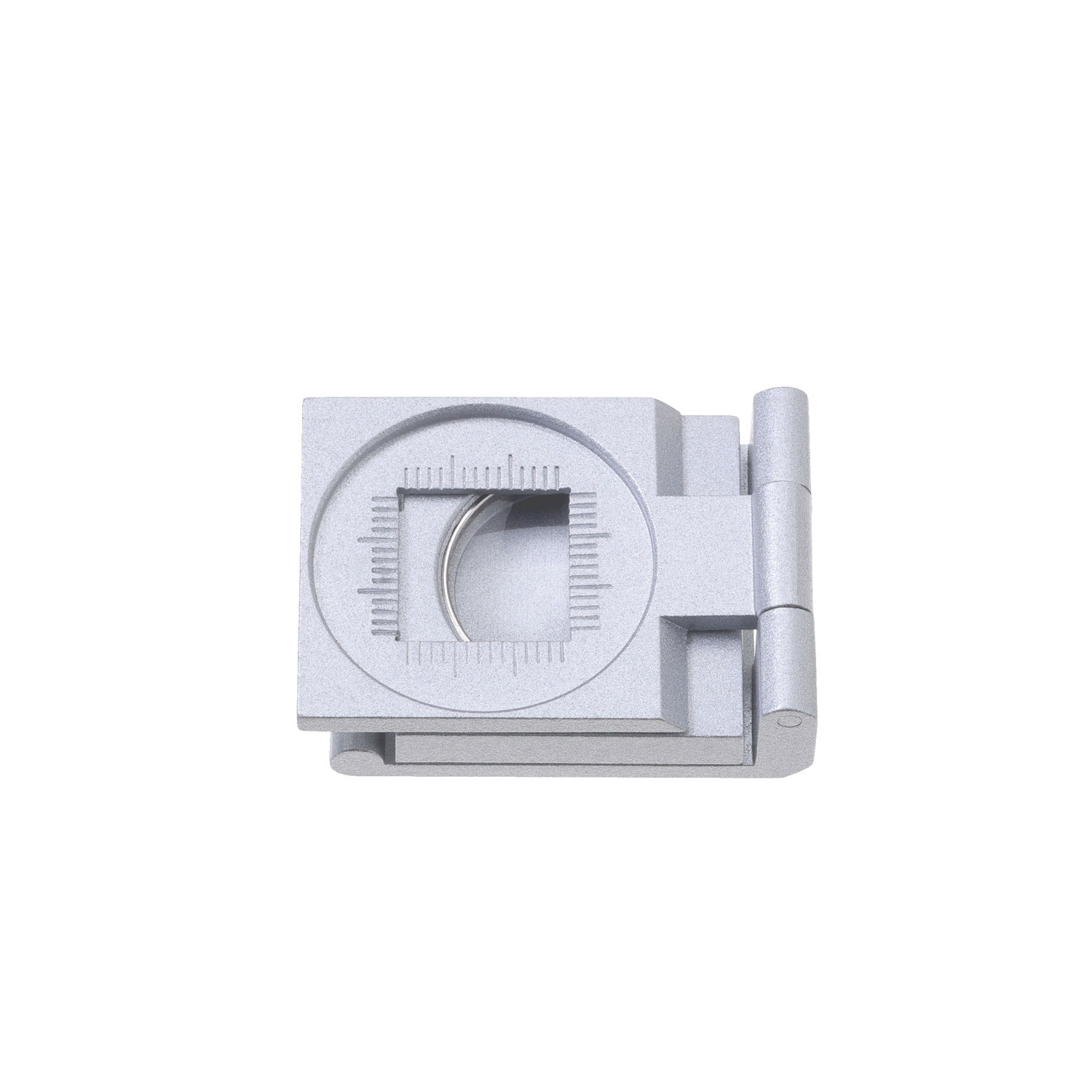

Foldable lens frame
●Compact Storage
When folded into three, it becomes completely flat with a thickness of just 13 mm. It can be easily stored in small spaces such as pockets or drawers.
●Robust Metal Body
Features a robust metal frame designed to withstand frequent opening and closing as well as heavy field use. -
Use cases
●Business Use
① For measuring fabric density and checking thread thickness.
② For checking the shape of halftone dots and registration misalignment in printed materials. Allows for accurate judgment of CMYK overlap.
③ For checking solder joints on circuit boards and measuring the length of minute cracks.
●Hobbies & Everyday Use
④ For stamp collecting. Ideal for checking the number of perforations (serrations) on stamps and minute printing misalignments.
⑤ For carefully observing plant leaf veins and insect wing patterns. Its design allows for easy observation, making it suitable for children's observations.
⑥ For photo verification. For checking positive film and contact prints. Highly effective for checking flat details.
Specifications
Linen Tester Loupe DS20
-
TypeLinen tester loupe (foldable)
-
Lens diameter / Effective diameter20 mm
-
Magnification (Clear view distance)7x
-
Lens materialGlass lens (single lens)
-
OthersScale markings: 1 mm increments (total length approximately 14.5 mm)
-
Dimensions44x31.5x13 mm (when folded)
-
Weight24 g
