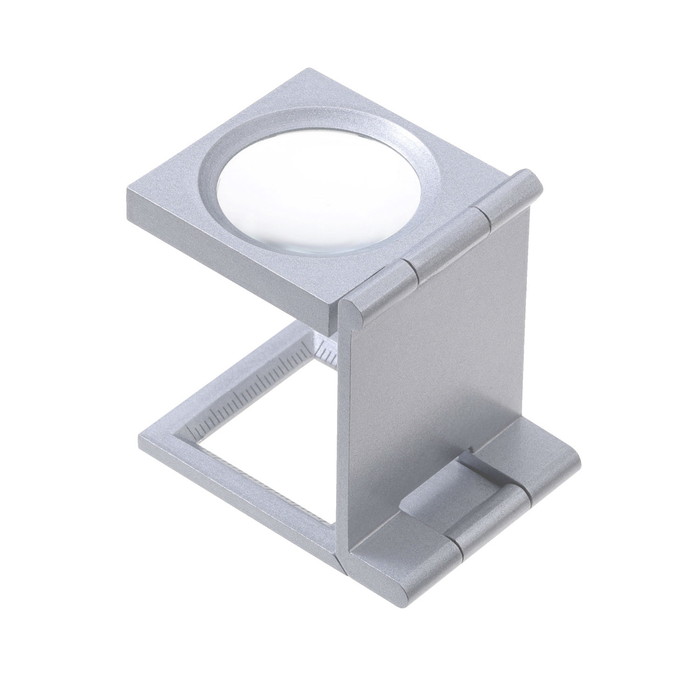

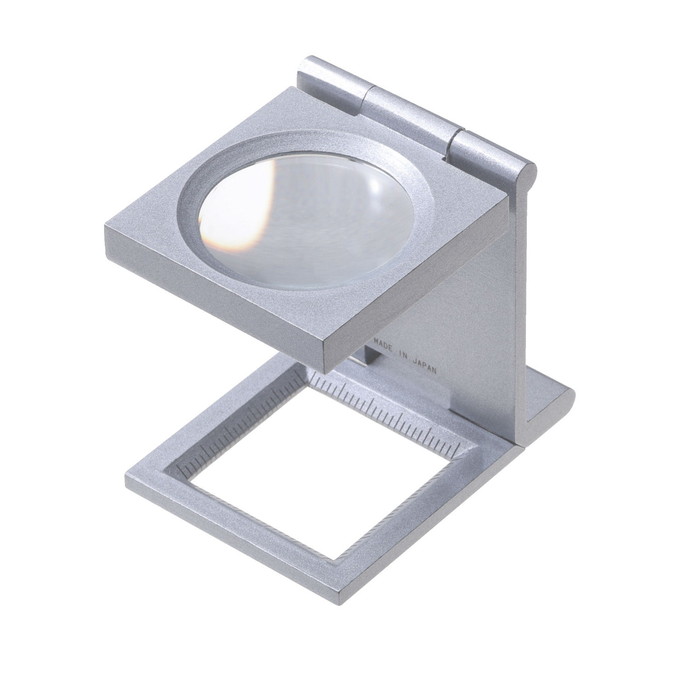

Vixen Magnifier Linen Tester Loupe DS28
loading
Suggested retail price: Contact local dealer
- JAN
- 4955295413577
The wide field of view and bright image transform the viewing experience. The large-aperture 6× Linen Tester “DS28” loupe lets you grasp the entire scene at a glance.
The “DS28” retains the core design of the standard DS20 model, but features a larger 28 mm lens diameter and a well-balanced 6× magnification. With its exceptional brightness and wide field of view, it is a reliable partner for scanning large areas with ease.
Vixen Magnifier Linen Tester Loupe DS28 Description
-
A generous-sized "large-aperture 28 mm" lens.
The lens diameter has been significantly increased compared to the standard model (DS20), allowing for a wider field of view at a glance and reducing the need to center the object. The large-aperture lens captures ample light, enabling bright observation of objects even in warehouses and factory production lines.
-
Easy-to-use "6x"
The 6× magnification provides a natural viewing experience, as if extending the naked eye. Because the magnification is not too high, it offers a deep depth of field, making it easy to view even uneven objects and well suited for fast inspection work.
-

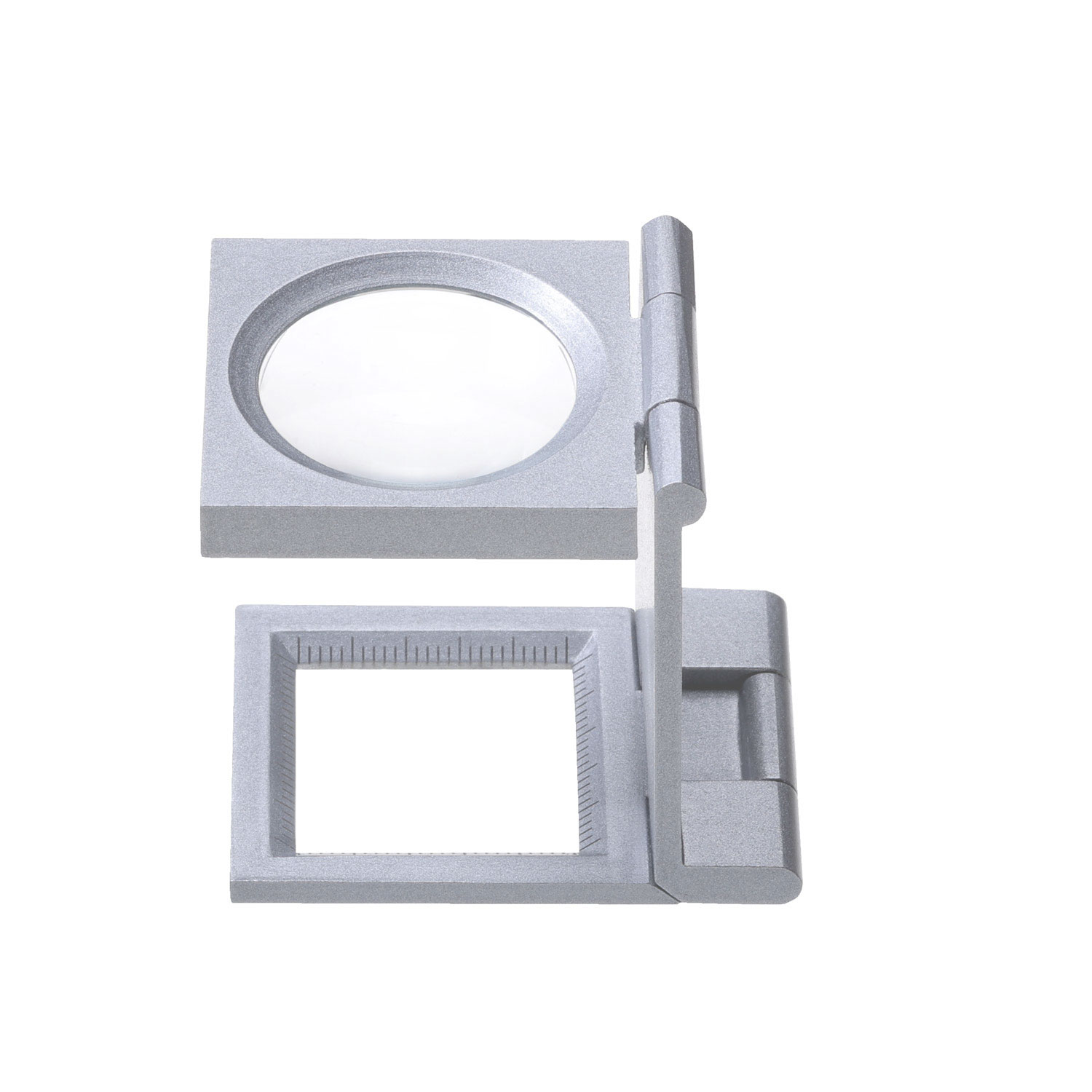

Built-in scale for quantifying details
Measurable Loupe: The base is engraved with a high-precision 1 mm scale, allowing you to instantly measure the size of magnified objects or count dots (halftones or weave patterns) within a given area.
-

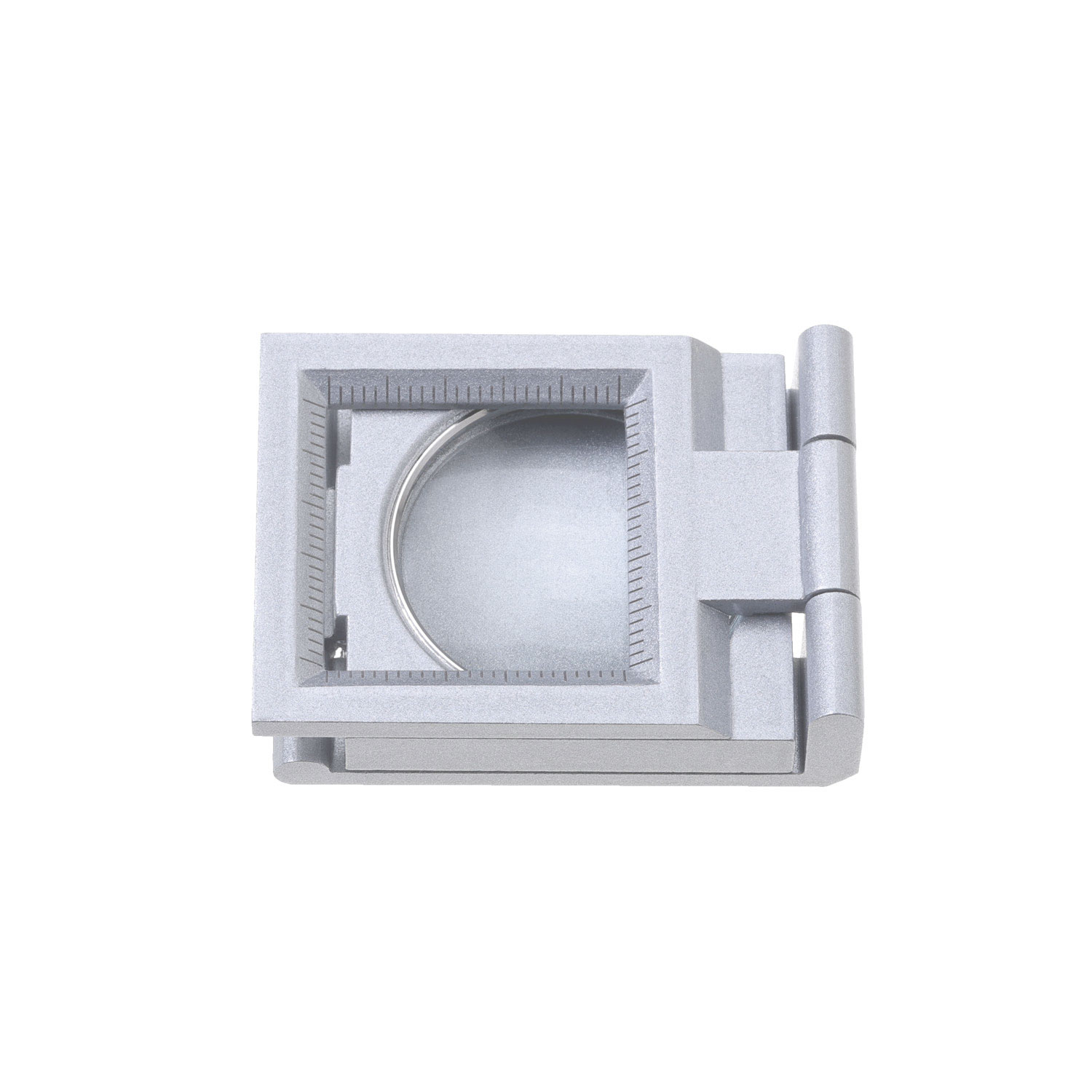

Foldable lens frame
●Compact Storage
When folded into three, it becomes completely flat with a thickness of just 13.5 mm. It can be easily stored in small spaces such as pockets or drawers.
●Robust Metal Body
Features a robust metal frame designed to withstand frequent opening and closing as well as heavy field use. -
Use cases
●Business Use
① For measuring fabric density and checking thread thickness.
② For checking the shape of halftone dots and registration misalignment in printed materials. Allows for accurate judgment of CMYK overlap.
③ For checking solder joints on circuit boards and measuring the length of minute cracks.
●Hobbies & Everyday Use
④ For stamp collecting. Ideal for checking the number of perforations (serrations) on stamps and minute printing misalignments.
⑤ For carefully observing plant leaf veins and insect wing patterns. Its design allows for easy observation, making it suitable for children's observations.
⑥ For photo verification. For checking positive film and contact prints. Highly effective for checking flat details.
Specifications
Linen Tester Loupe DS28
-
TypeLinen tester loupe (foldable)
-
Lens diameter / Effective diameter28 mm
-
Magnification (Clear view distance)6x
-
Lens materialGlass lens (single lens)
-
OthersScale markings: 1 mm increments (total length 25.4mm)
-
Dimensions51.5x38x13.5 mm (when folded)
-
Weight42g
