Vixen Telescope SX2WL-A105MII

Vixen Telescope SX2WL-A105MII —
Vixen Telescope SX2WL-A105MII
Vixen Telescope SX2WL-A105MII —
Vixen Telescope SX2WL-A105MII

loading

  • —

Suggested retail price: Contact local dealer

JAN
4955295250219

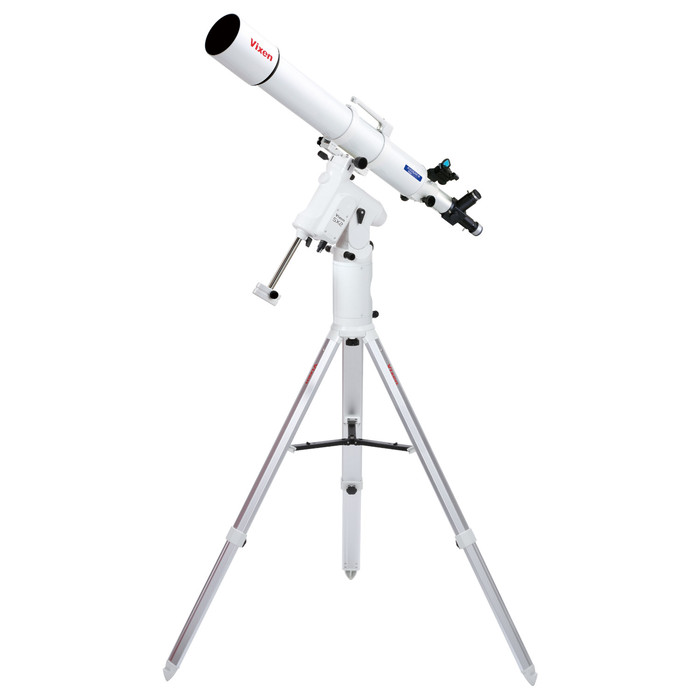

This set includes an A105MII optical tube assembly, an SX2WL equatorial mount for easy smartphone operation, and an SXG-HAL130 tripod.

The A105MII OTA is a premium entry-level optical tube with a 105mm aperture, delivering excellent light-gathering power. The difference is noticeable when observing at high magnifications or exploring faint nebulae and star clusters. Paired with the SX2WL equatorial mount, it offers automatic Go-To slewing to celestial objects, all easily controlled from your smartphone.

Vixen Telescope SX2WL-A105MII Description

  • A105MII Optical Tube Assembly (OTA)

    The A105MII OTA is a premium entry-level optical tube with a 105 mm aperture, delivering excellent light-gathering power. It features a cost-effective achromatic lens that effectively suppresses chromatic aberration. An included flip mirror diagonal allows you to switch the light path with a single touch, enabling quick magnification changes while keeping two different eyepieces attached. The optical tube is also suitable for astrophotography when used with optional camera adapters (sold separately).

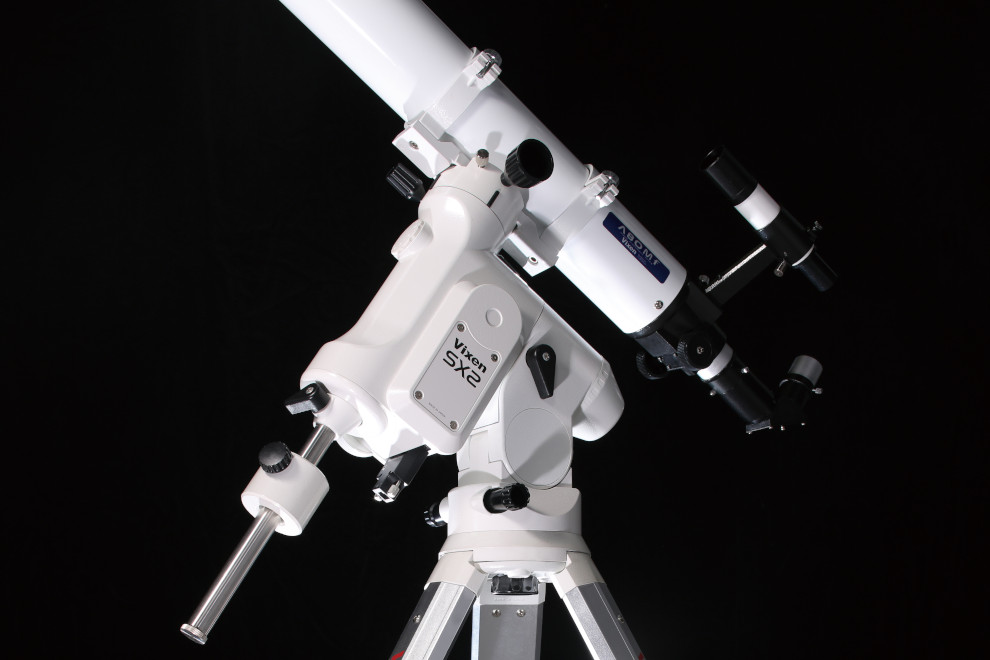

  • SX2WL Equatorial Mount: Automatic Go-To Telescope Control from your Smartphone

    While retaining the excellent usability of the SX series equatorial mounts, this model has been revamped with the same micro-step-driven pulse motors used in the SXD2 series. By increasing the number of bearings from one to five, Vixen has achieved even greater operational stability. You can enjoy automatic Go-To slewing to celestial objects, all easily controlled from your smartphone.

  • Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

    The "Wireless Unit" is included as standard, allowing you to control your equatorial mount with your smartphone or tablet. By installing a free dedicated smartphone app "STAR BOOK Wireless" on your device, you can use it as a controller.

    The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

    STAR BOOK Wireless

    App Store Google Play

    Wireless Unit

    Product page
    Notice Regarding Wi-Fi Connection for Wireless Unit Users

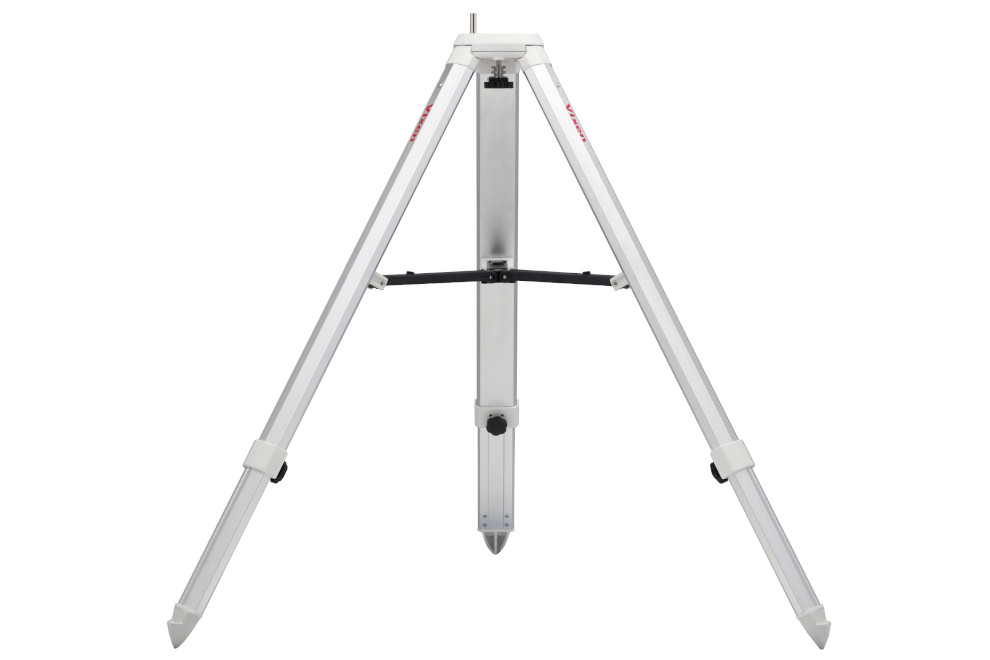

  • SXG-HAL130 Large Aluminum Telescopic Tripod

    This extendable tripod features adjustable legs from approximately 80 cm to 130 cm, allowing you to set the height to suit your setup and preferences. Its hexagonal aluminum legs offer excellent load capacity and vibration damping, providing stable support for astronomical observations. Setup is tool-free and can be completed in a single step, making it ideal for mobile observations with a car.

Specifications

Optical Tube Part

  • Objective Lens (Primary Mirror) / Effective Aperture
    105mm achromat multi-coated
  • Focal Length (Focal Ratio F)
    1,000mm(F9.5)
  • Resolution・Limiting Magnitude
    1.1 arc sec., 11.9 mag.225x unaided eye
  • Size・Weight
    Length 1,010mm, Outer diameter 115mm, 4.8kg (Main body 3.8kg)
  • Finder Scope
    XY spot finder (one-power aiming device)

Mount Part

  • Mount Type
    SX2 Equatorial Mount WL

Eyepiece Part

  • Focusing System
    Rack and Pinion
  • Threads / Visual Back
    Screw-in / 60mm, 42mm T-ring screwPush-fit: 50.8mm, 31.7mm (with flip mirror diagonal)
  • Eyepiece (31.7mm barrel)
    NPL20mm (50x, 60min. actual field of view)NPL6mm (167x, 18min. actual field of view)

Tripod

  • Material・Form
    Large hexagonal aluminum two-stage extension legs (one-touch type)
  • Size・Weight
    Length 807⇔1,299mm Height (from ground) 730⇔1,156mmSetting radius 460⇔706mm 5.5kg

Others

  • Main Accessories
    SXG half pillar, parts case, counterweight 1.9kg x 1
  • Solar Observation
    Used with a Sun Projection Screen Set B(sold separately) (for short-term observation)

Set Contents

  • A105MII OTA
  • SX2 Equatorial Mount WL
  • SXG-HAL130 Tripod
  • SXG Half Pillar
  • Eyepiece NPL 20mm
  • Eyepiece NPL 6mm

Accessories

  • Counterweight 1.9kg x 1
  • Flip Mirror Diagonal
  • XY Spot Finder II
  • Parts Case
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
