Suggested retail price: Contact local dealer

JAN
4955295250226

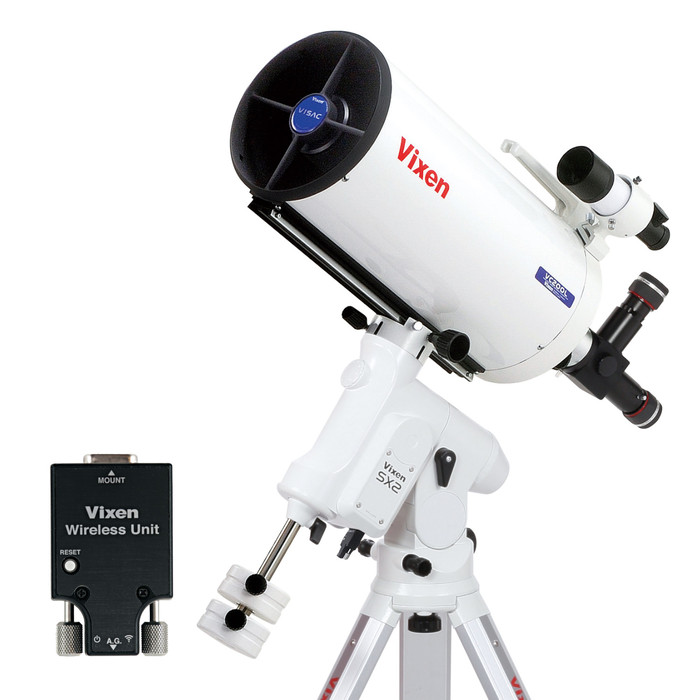

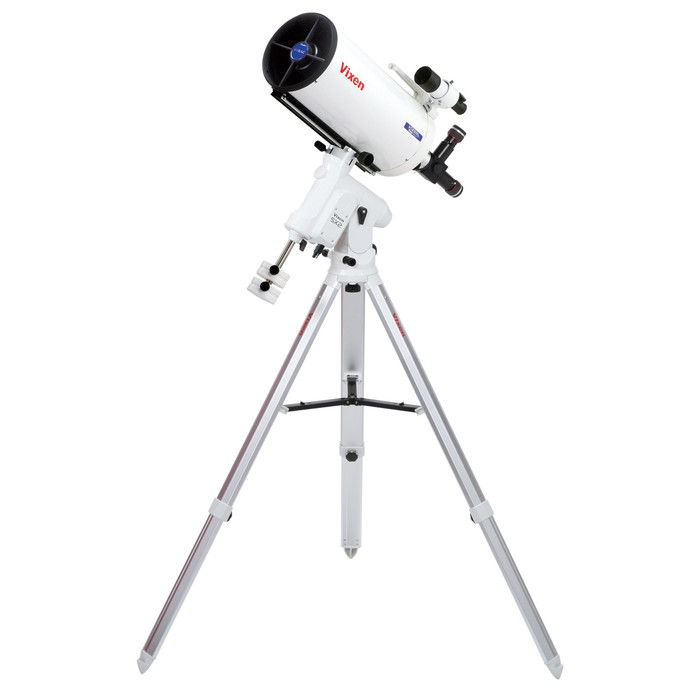

The set includes a VC200L optical tube, an SX2WL equatorial mount for easy smartphone operation, and an SXG-HAL130 tripod.

The VC200L optical tube delivers exceptionally sharp star images with minimal distortion across the field of view, making it highly effective for prime-focus astrophotography. The SX2WL equatorial mount features automatic Go-To slewing to celestial objects with simple, intuitive control from your smartphone.

Vixen Telescope SX2WL-VC200L Description

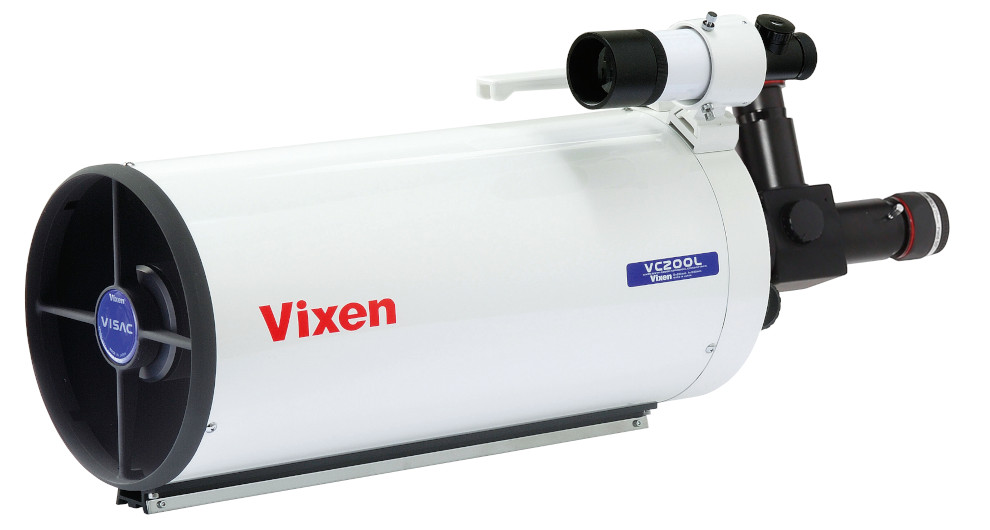

  • VC200L OTA. The VISAC Large-aperture Photo-visual Optical Tube, Aberration-free Imaging Field

    VISAC stands for Vixen Sixth-order Aspherical Catadioptric, an original Vixen catadioptric optical tube design that, as the name suggests, employs a 6th-order aspherical primary mirror. It features a three-element field corrector lens within the baffle tube, which effectively corrects coma, spherical aberration, and field curvature across the entire field of view, producing 15 μm star images even at the edge of the photographic field. With an optional “Reducer HD” or at prime focus, it delivers outstanding performance for deep-sky imaging of diffuse nebulae and extragalactic objects.

  • SX2WL Equatorial Mount: Automatic Go-To Telescope Control from your Smartphone

    While retaining the excellent usability of the SX series equatorial mounts, this model has been revamped with the same micro-step-driven pulse motors used in the SXD2 series. By increasing the number of bearings from one to five, Vixen has achieved even greater operational stability. You can enjoy automatic Go-To slewing to celestial objects, all easily controlled from your smartphone.

  • Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

    The “Wireless Unit” is included as standard, allowing you to control your equatorial mount with your smartphone. By installing a free dedicated smartphone app “STAR BOOK Wireless” on your device, you can use it as a controller.

    The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

    STAR BOOK Wireless

    App Store Google Play

    Wireless Unit

    Product page
    Notice Regarding Wi-Fi Connection for Wireless Unit Users

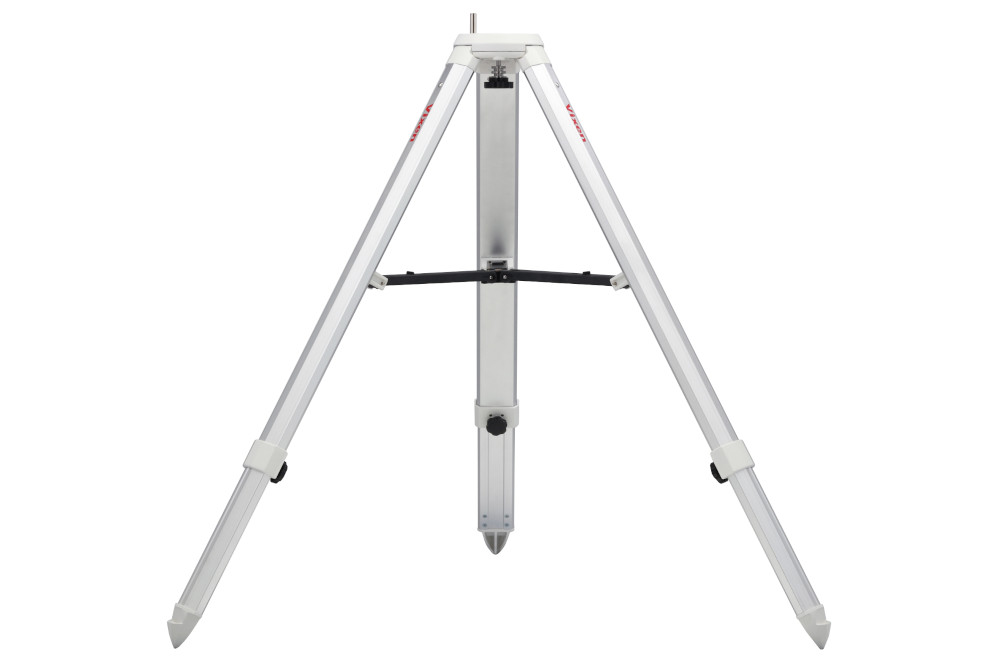

  • SXG-HAL130 Large Aluminum Telescopic Tripod

    This extendable tripod features adjustable legs from approximately 80 cm to 130 cm, allowing you to set the height to suit your setup and preferences. Its hexagonal aluminum legs offer excellent load capacity and vibration damping, providing stable support for astronomical observations. Setup is tool-free and can be completed in a single step, making it ideal for mobile observations with a car.

Specifications

Optical Tube Part

  • Objective Lens (Primary Mirror) / Effective Aperture
    200mm 6th order aspheric mirror, multi-coated
  • Focal Length (Focal Ratio F)
    1800mm(F9)
  • Resolution・Limiting Magnitude
    0.58 arc sec., 13.3 mag.816x unaided eye
  • Size・Weight
    Length 600mm, outer diameter 232mm, 6.9kg (Main body 6.0kg)
  • Finder Scope
    7x50mm Finder II with Illuminated Reticle (detachable illumination unit), Actual field of view 7°

Mount Part

  • Mount Type
    SX2 Equatorial Mount WL

Eyepiece Part

  • Focusing System
    Rack and Pinion
  • Threads / Visual Back
    Screw-in / 60mm, 42mm T-ring screwPush-fit: 50.8mm, 31.7mm (with Flip Mirror Diagonal)
  • Eyepiece (31.7mm barrel)
    SLV20mm (90x, 33min. actual field of view)SLV9mm (200x, 15min. actual field of view)

Tripod

  • Material・Form
    Large hexagonal aluminum two-stage extension legs (one-touch type)
  • Size・Weight
    Length 807⇔1,299mm Height (from ground) 730⇔1,156mmSetting radius 460⇔706mm 5.5kg

Others

  • Main Accessories
    Parts case, counterweight 1.9kg x 2
  • Solar Observation
    Not available
  • Dimensions WxDxH
  • Weight
    23.3kg (excluding eyepiece)

Set Contents

  • VC200L OTA
  • SX2 Equatorial Mount WL
  • SXG-HAL130 Tripod
  • Eyepiece SLV20mm
  • Eyepiece SLV9mm

Accessories

  • Counterweight 1.9kg x 2
  • Flip Mirror Diagonal
  • 7x50mm Finder II with Illuminated Reticle
  • Parts Case
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
