Suggested retail price: Contact local dealer

JAN
4955295250431

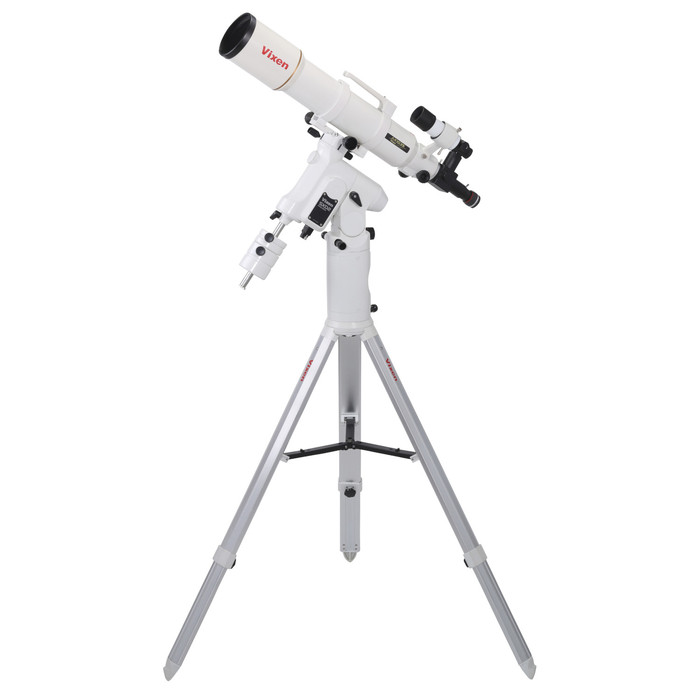

The set features an exquisite photo-visual AX103S refracting telescope, an SXD2WL mount (a deluxe version of the SX2WL), and an SXG-HAL130 tripod.

This set includes the AX103S optical tube, featuring Vixen's original triplet-element SD apochromatic design that minimizes various aberrations to produce exceptionally sharp, distortion-free images. It offers outstanding optical performance for both visual observation and astrophotography. Paired with the SXD2WL equatorial mount that comes with the Wireless Unit, this combination meets the demands of advanced celestial observation. The SXG-HAL130 tripod is suitable for those planning portable star-watching or astrophotography expeditions.

Vixen Telescope SXD2WL-AX103S Description

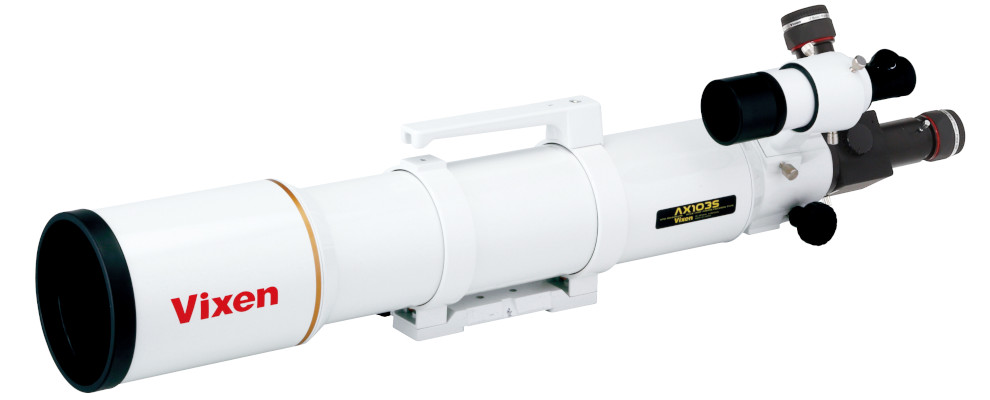

  • AX103S Optical Tube Assembly

    By placing an SD glass element at the center of its three-element objective lens, this unit achieves exceptionally high correction for chromatic aberration, producing clear and sharp images. Additionally, the fourth objective lens (corrector lens) inside the focuser drawtube ensures star images remain as sharp as 20 microns throughout the edges of the field of view. With numerically controlled precision multicoating, a light transmission rate of 99.5% per surface (400–700 nm) is achieved.

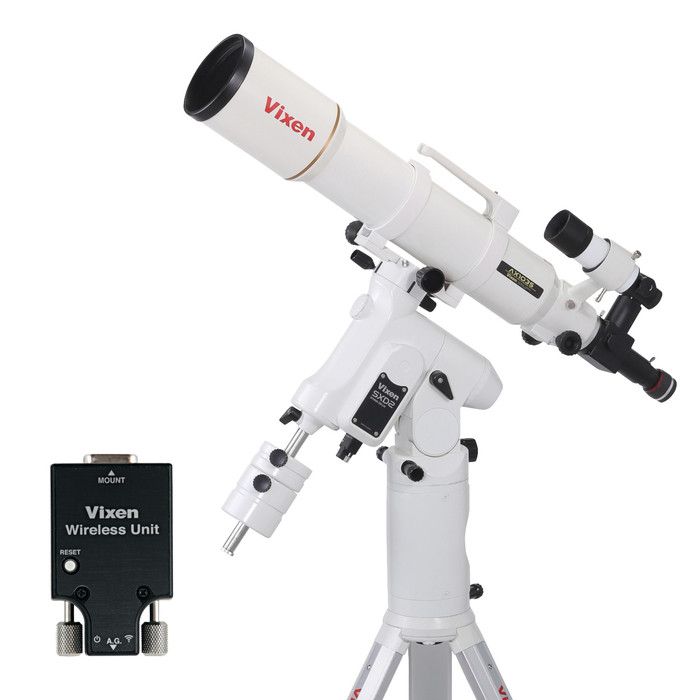

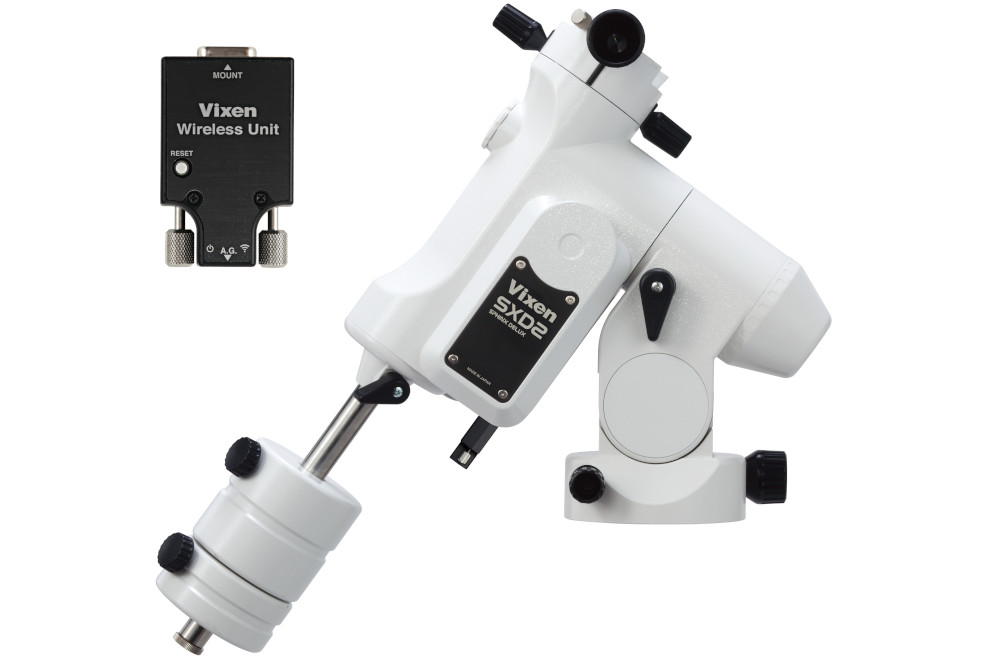

  • SXD2WL Mount, Deluxe Model in a Class equipped with Wireless Unit

    This high-spec equatorial mount has been meticulously engineered from start to finish—from the careful selection of materials and well-thought-out placement of bearings to the precise cutting and machining of each part—all to maximize its performance as an equatorial mount.

  • Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

    The "Wireless Unit" is included as standard, allowing you to control your equatorial mount with your smartphone or tablet. By installing a free dedicated smartphone app "STAR BOOK Wireless" on your device, you can use it as a controller.

    The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

    STAR BOOK Wireless

    App Store Google Play

    Wireless Unit

    Product page
    Notice Regarding Wi-Fi Connection for Wireless Unit Users

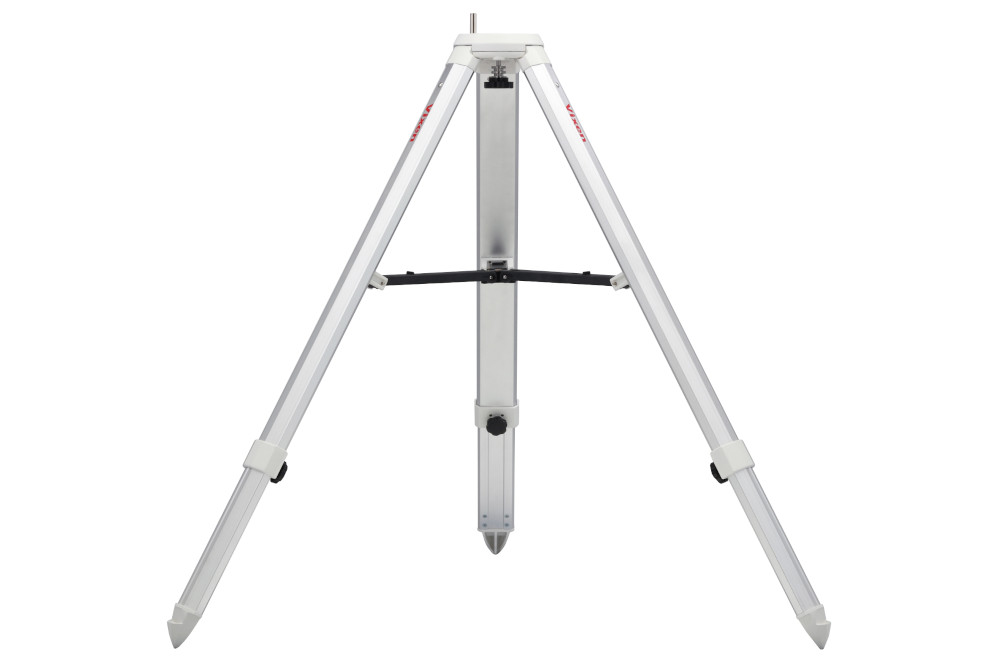

  • SXG-HAL130 Large Aluminum Telescopic Tripod

    This extendable tripod features adjustable legs from approximately 80 cm to 130 cm, allowing you to set the height to suit your setup and preferences. Its hexagonal aluminum legs offer excellent load capacity and vibration damping, providing stable support for astronomical observations. Setup is tool-free and can be completed in a single step, making it ideal for mobile observations with a car.

Specifications

Optical Tube Part

  • Objective Lens (Primary Mirror) / Effective Aperture
    103mm SD Apochromat Multi-Coated
  • Focal Length (Focal Ratio F)
    795mm (F7.7)
  • Resolution・Limiting Magnitude
    1.13 arc sec., 11.8mag.217x unaided eye
  • Size・Weight
    Length 810mm, outer diameter 115mm, 5.5kg (Main body 3.6kg)
  • Finder Scope
    7x50mm Finder II with Illuminated Reticle (detachable illumination unit), Actual field of view 7°

Mount Part

  • Mount Type
    SX2 Equatorial Mount WL

Eyepiece Part

  • Focusing System
    Rack and Pinion
  • Threads / Visual Back
    Screw-in / 60mm, 42mm T-ring screwPush-fit: 50.8mm, 31.7mm (with Flip Mirror Diagonal)
  • Eyepiece (31.7mm barrel)
    SLV20mm (40x, 75min. actual field of view)SLV5mm (159x, 19min. actual field of view)

Tripod

  • Material・Form
    Large hexagonal aluminum two-stage extension legs (one-touch type)
  • Size・Weight
    Length 807⇔1,299mm Height (from ground) 730⇔1,156mmSetting radius 460⇔706mm 5.5kg

Others

  • Main Accessories
    SXG half pillar, parts case, counterweight 1.9kg x 1
  • Solar Observation
    Used with a Sun Projection Screen Set B (sold separately) (for short-term observation)
  • Weight
    21.8kg (excluding eyepiece)

Set Contents

  • SD103SII OTA
  • SX2 Equatorial Mount WL
  • SXG-HAL130 Tripod
  • SXG Half Pillar
  • Eyepiece SLV20mm
  • Eyepiece SLV5mm

Accessories

  • Counterweight 1.9kg x 1
  • Flip Mirror Diagonal
  • 7x50mm Finder II with Illuminated Reticle
  • Parts Case
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
