Vixen Telescope SXD2WL-R200SS

Vixen Telescope SXD2WL-R200SS —
Vixen Telescope SXD2WL-R200SS
Vixen Telescope SXD2WL-R200SS —
Vixen Telescope SXD2WL-R200SS

loading

  • —

Suggested retail price: Contact local dealer

JAN
4955295250455

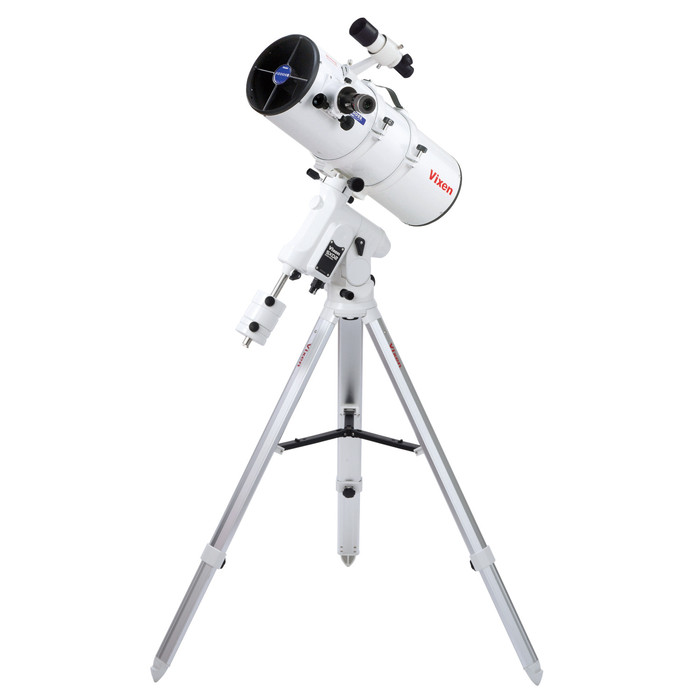

The set includes an R200SS optical tube, a deluxe SXD2WL equatorial mount, and an SXG-HAL130 tripod.

This large-aperture reflecting telescope offers excellent light-gathering power. The R200SS optical tube is a long-established, highly regarded model, prized for its lightweight design and fast f/4 focal ratio despite its large aperture. The deluxe SXD2WL equatorial mount features automatic Go-To slewing to celestial objects with intuitive smartphone control.

Vixen Telescope SXD2WL-R200SS Description

  • R200SS OTA: A Proven Long-Seller as a Newtonian Reflector with a Fast Focal Ratio.

    The R200SS, a popular and long-selling model, is a short-focal-length optical tube with a 200 mm aperture and an 800 mm focal length. While excellent for visual observation, it also excels as a high-speed astrograph for prime-focus photography when paired with an optional "Corrector PH," taking full advantage of its bright f/4 focal ratio. A dedicated extender lens (sold separately) is also available to increase the focal length.

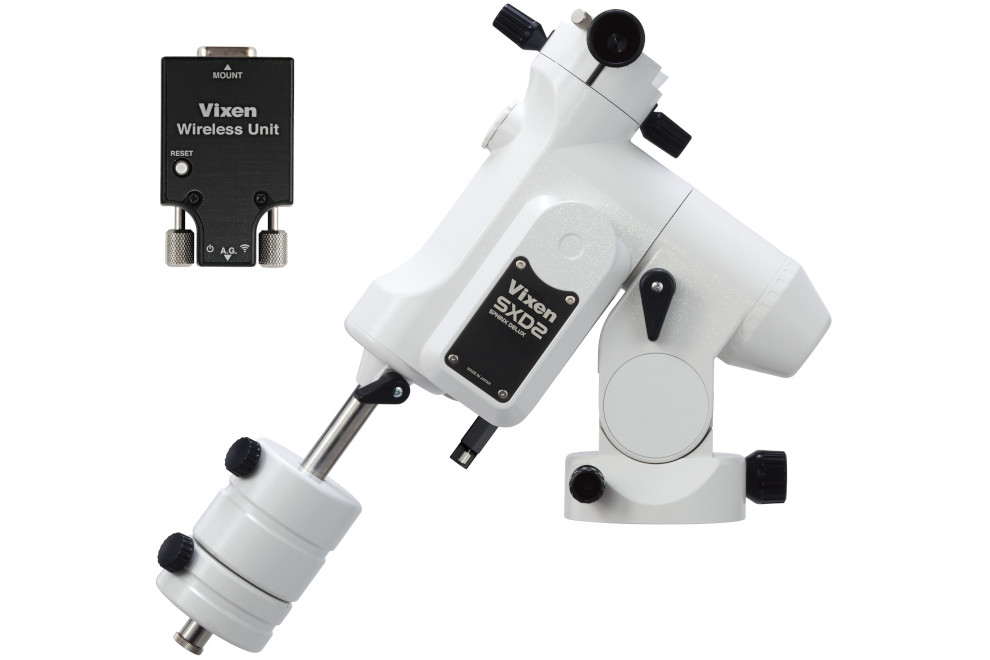

  • SXD2WL Mount: Deluxe Equatorial Mount with Wireless Unit

    This high-spec equatorial mount has been meticulously engineered from start to finish—from the careful selection of materials and well-thought-out placement of bearings to the precise cutting and machining of each part—all to maximize its performance as an equatorial mount.

  • Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

    The "Wireless Unit" is included as standard, allowing you to control your equatorial mount with your smartphone or tablet. By installing a free dedicated smartphone app "STAR BOOK Wireless" on your device, you can use it as a controller.

    The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

    STAR BOOK Wireless

    App Store Google Play

    Wireless Unit

    Product page
    Notice Regarding Wi-Fi Connection for Wireless Unit Users

  • SXG-HAL130 Large Aluminum Telescopic Tripod

    This extendable tripod features adjustable legs from approximately 80 cm to 130 cm, allowing you to set the height to suit your setup and preferences. Its hexagonal aluminum legs offer excellent load capacity and vibration damping, providing stable support for astronomical observations. Setup is tool-free and can be completed in a single step, making it ideal for mobile observations with a car.

Specifications

Optical Tube Part

  • Objective Lens (Primary Mirror) / Effective Aperture
    200mm Parabolic mirror, Multi-Coated
  • Focal Length (Focal Ratio F)
    800mm(F4)
  • Resolution・Limiting Magnitude
    0.58 arc sec., 13.3 mag.816x unaided eye
  • Size・Weight
    Length 700mm, outer diameter 232mm, 7.2kg (Main body 5.3kg)
  • Finder Scope
    7x50mm Finder II with Illuminated Reticle (detachable illumination unit), Actual field of view 7°

Mount Part

  • Mount Type
    SXD2 Equatorial Mount WL

Eyepiece Part

  • Focusing System
    Rack and Pinion
  • Threads / Visual Back
    Screw-in / 60mm, 42mm T-ring screwPush-fit: 31.7mm
  • Eyepiece (31.7mm barrel)
    SLV20mm (40x, 75min. actual field of view)SLV5mm (160x, 19min. actual field of view)

Tripod

  • Material・Form
    Large hexagonal aluminum two-stage extension legs (one-touch type)
  • Size・Weight
    Length 807⇔1,299mm Height (from ground) 730⇔1,156mmSetting radius 460⇔706mm 5.5kg

Others

  • Main Accessories
    Parts case, Counterweight 1.9kg x 1、3.7kg x 1
  • Solar Observation
    No
  • Weight
    27.9kg (excluding eyepiece)

Set Contents

  • R200SS OTA
  • SXD2 Equatorial Mount WL
  • SXG-HAL130 Tripod
  • Eyepiece SLV20mm
  • Eyepiece SLV5mm

Accessories

  • Counterweight 1.9kg x 1
  • Counterweight 3.7kg x 1
  • 7x50mm Finder II with Illuminated Reticle
  • Parts Case
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
