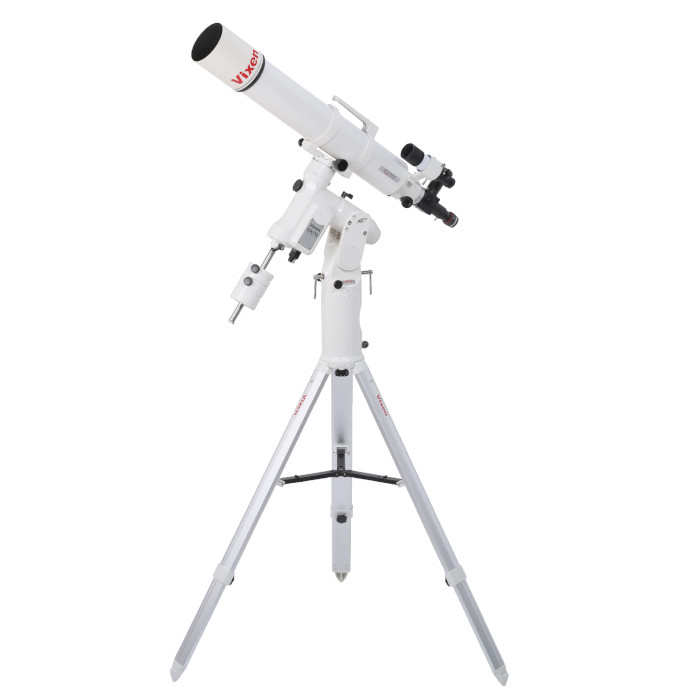

Vixen Telescope SXP2WL-SD115SII

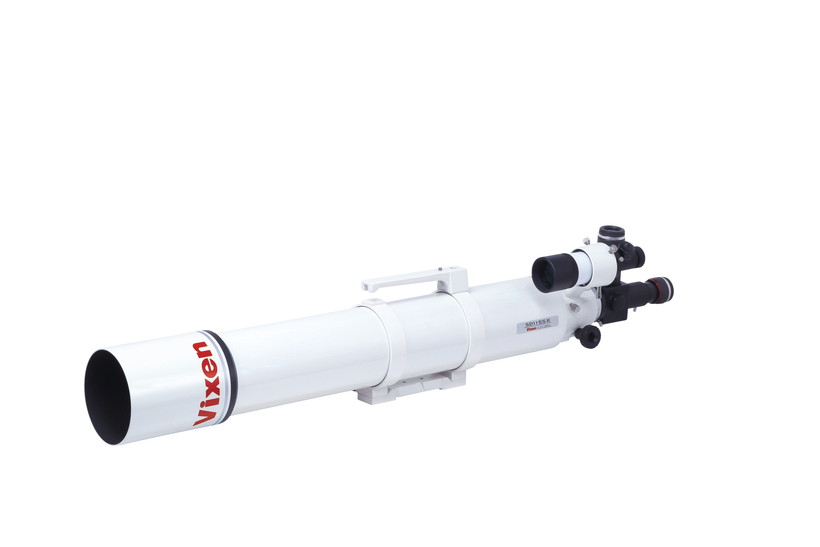

SD115SII Optical Tube Assembly

Improved Spacer for Sharper Star Images

In the previous SD115S model, the objective lens was retained by three small foil clips that served as spacers. Because these clips protruded into the optical path, they produced diffraction, creating three faint radial flares around bright stars. By replacing these clips with a ring-shaped spacer, diffraction is evenly distributed, resulting in beautifully clean and sharply defined star images.

High-Performance SD Glass Lens Minimizes Chromatic Aberration

This high-performance “photo-visual” optical tube employs an SD (Super ED) glass lens that effectively suppresses chromatic aberration. It reduces color fringing exceptionally, enabling clearer, sharper star images.

With an f/7.7 focal ratio and a well-balanced 890 mm focal length relative to its 115 mm aperture, it offers outstanding versatility for a wide range of applications, from detailed planetary observation to astrophotography of nebulae and star clusters.

It comes with a Flip Mirror Diagonal whose mirror can be switched with a simple turn of a dial. This is highly convenient, allowing you to instantly switch between two eyepieces of different magnifications or shift from visual observation to a camera attached to the straight-through back.

It also includes a Vixen-standard dovetail attachment plate and a metal carrying handle, making installation, removal, and transport of the optical tube quick and easy. This setup delivers excellent performance across a wide range of astronomical observing situations.

For more information about the SD115SII Optical Tube Assembly.

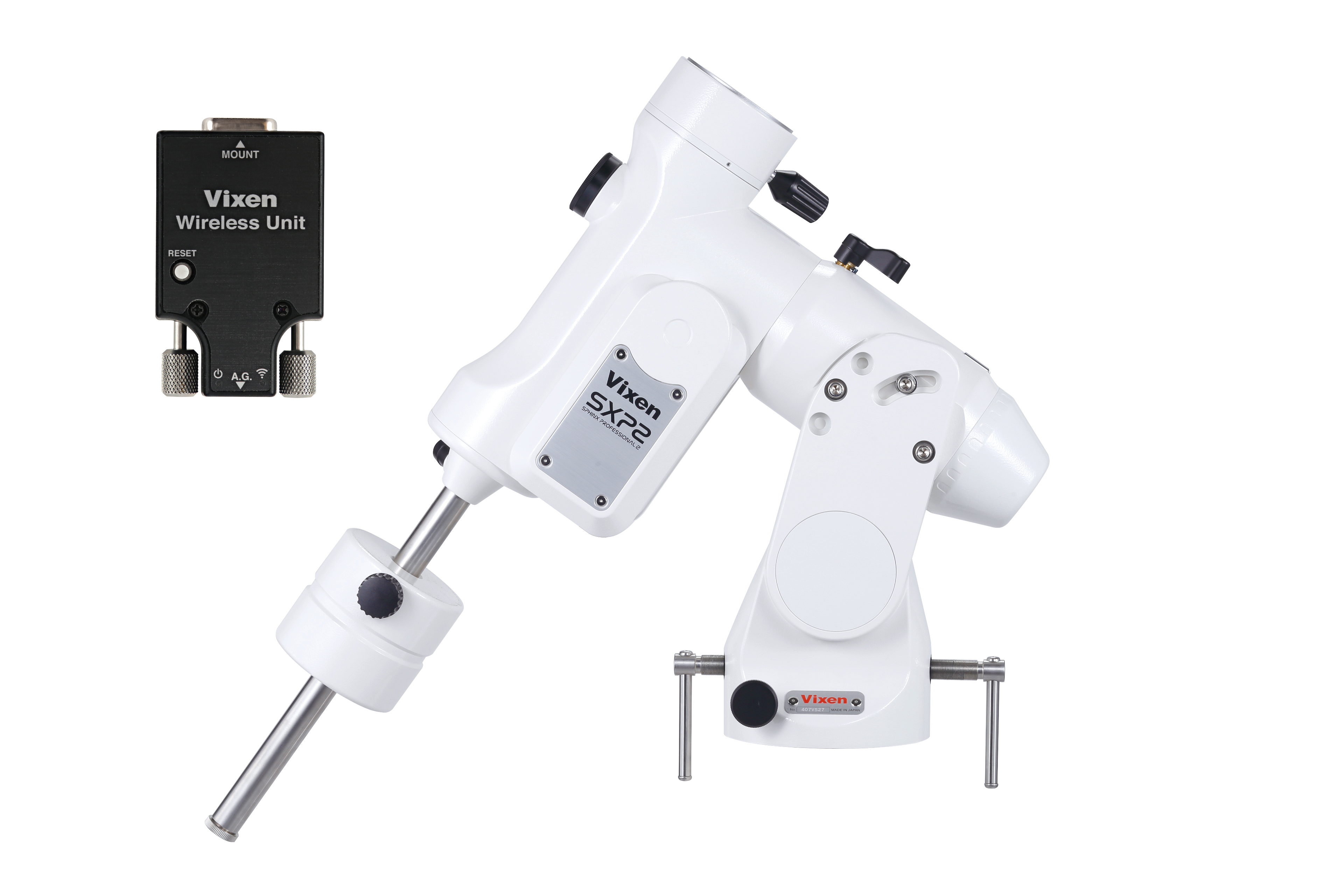

Wirelessly control the SX series’ Flagship Performance — High Rigidity, Quick Response, and Precision Tracking — with a Smartphone App!

The SXP2WL equatorial mount is the flagship of the SX series. The high specifications, including reliable rigidity, a belt-drive system that minimizes backlash and ensures quick response, and high-precision tracking driven by micro-steps, all of which can be easily controlled via a smartphone app. Enjoy comfortable astronomical observations with wireless control.

For more information about the SXP2 Equatorial Mount WL.

Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

The "Wireless Unit" is included as standard, allowing you to control your equatorial mount with your smartphone or tablet. By installing a free dedicated smartphone app "STAR BOOK Wireless" on your device, you can use it as a controller.

The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

STAR BOOK Wireless

App Store Google Play

Wireless Unit

Product page
Notice Regarding Wi-Fi Connection for Wireless Unit Users

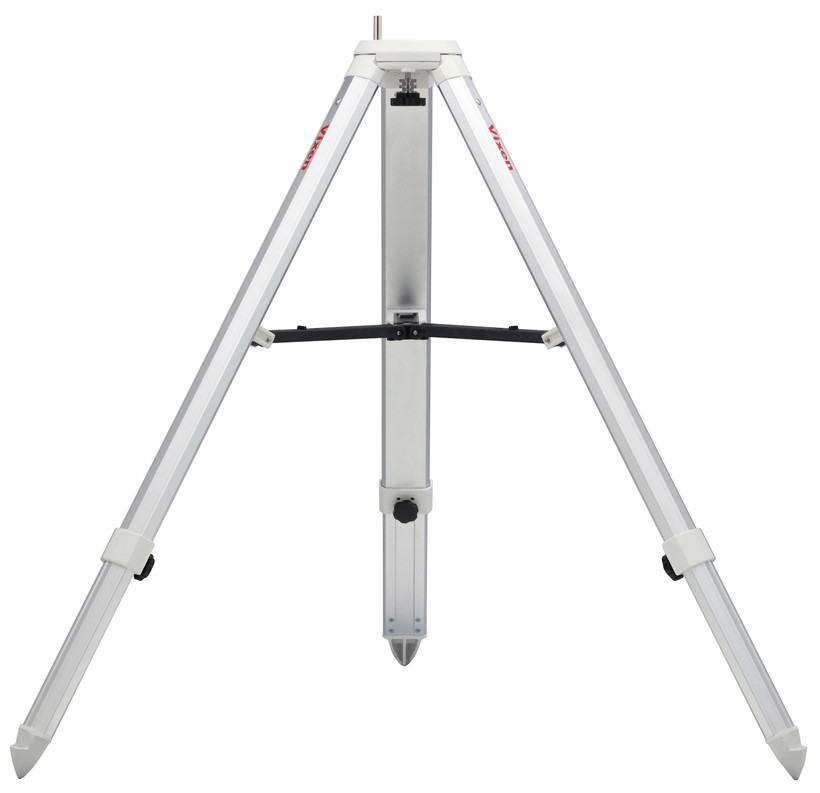

SXG-HAL130 Large, Aluminum Telescopic Tripod

This extendable tripod features adjustable legs from approximately 80 cm to 130 cm, allowing you to set the height to suit your setup and preferences. Its hexagonal aluminum legs offer excellent load capacity and vibration damping, providing stable support for astronomical observations. Setup is tool-free and can be completed in a single step, making it ideal for mobile observations with a car.

For more information about the SXG-HAL130 Aluminum Tripod.

Accessories that support Astronomical Observations

SXP2 Mount Case (sold separately)

This is a storage case for the SXP2WL or SXP2 equatorial mount. In addition to the mount itself, it can also hold small accessories and parts such as the Wireless Unit, cables, and an AC adapter.
The equatorial mount can be stored with the dovetail-plate mounting block (sold separately) attached. *Counterweights cannot be stored.

Tube & Tripod Bag 100 (sold separately)

It can accommodate either the AX103S optical tube or the SXG-HAL130 tripod, making it suitable for mobile observations or convenient home storage.
