Vixen Telescope SXP2WL-R200SS

Vixen Telescope SXP2WL-R200SS —
Vixen Telescope SXP2WL-R200SS —

loading

  • —

Suggested retail price: Contact local dealer

JAN
4955295252084

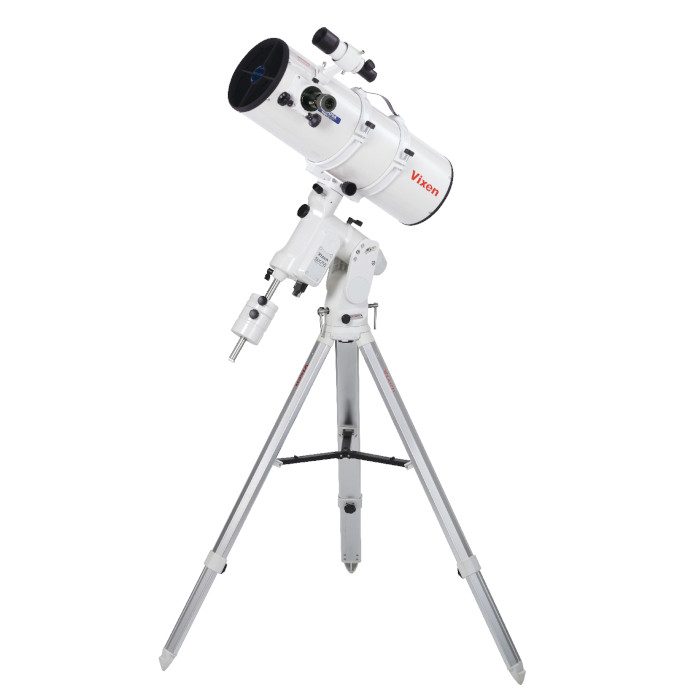

The set includes an R200SS optical tube, an SXP2WL equatorial mount (the top model in the SX series), and an SXG-HAL130 tripod.

The R200SS optical tube is a long-established, highly regarded model, prized for its lightweight design and fast f/4 focal ratio despite its large aperture.

Paired with the SXP2WL equatorial mount — the flagship model of the SX series, offering high-precision tracking and other advanced features that can be easily controlled via a smartphone app — you can enjoy high-level astronomical observation.

Vixen Telescope SXP2WL-R200SS Description

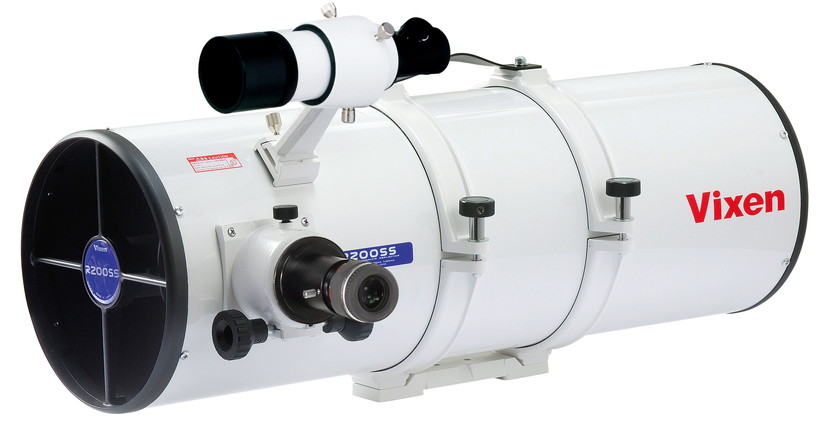

  • R200SS OTA — A Proven Long-Seller as a Newtonian Reflector with a Fast Focal Ratio.

    The R200SS, a popular and long-selling model, is a short-focal-length optical tube with a 200 mm aperture and an 800 mm focal length. While excellent for visual observation, it also excels as a high-speed astrograph for prime-focus photography when paired with an optional "Corrector PH," taking full advantage of its bright f/4 focal ratio. A dedicated extender lens (sold separately) is also available to increase the focal length.

    For more information about the SXP2 Equatorial Mount WL.

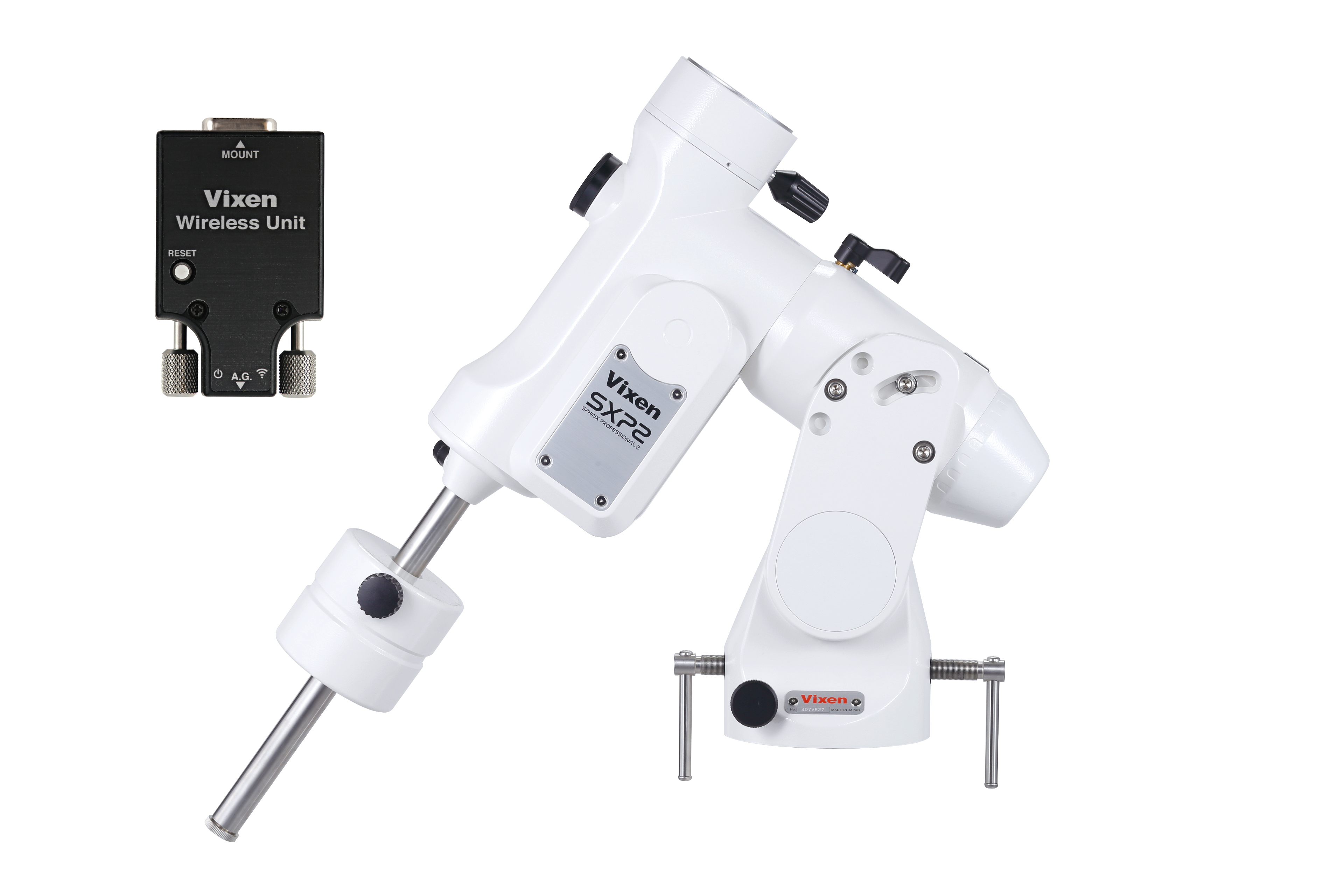

  • Wirelessly control the SX series’ Flagship Performance — High Rigidity, Quick Response, and Precision Tracking — with a Smartphone App!

    The SXP2WL equatorial mount is the flagship of the SX series. The high specifications, including reliable rigidity, a belt-drive system that minimizes backlash and ensures quick response, and high-precision tracking driven by micro-steps, all of which can be easily controlled via a smartphone app. Enjoy comfortable astronomical observations with wireless control.

  • Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

    The "Wireless Unit" is included as standard, allowing you to control your equatorial mount with your smartphone or tablet. By installing a free dedicated smartphone app "STAR BOOK Wireless" on your device, you can use it as a controller.

    The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

    STAR BOOK Wireless

    App Store Google Play

    Wireless Unit

    Product page
    Notice Regarding Wi-Fi Connection for Wireless Unit Users

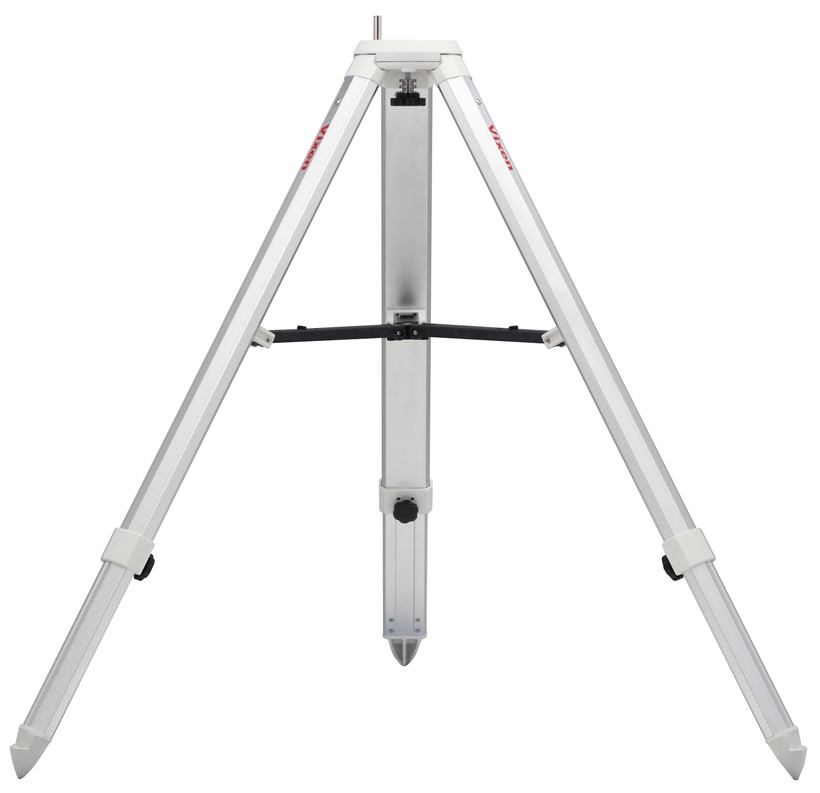

  • SXG-HAL130 Large Aluminum Telescopic Tripod

    This extendable tripod features adjustable legs from approximately 80 cm to 130 cm, allowing you to set the height to suit your setup and preferences. Its hexagonal aluminum legs offer excellent load capacity and vibration damping, providing stable support for astronomical observations. Setup is tool-free and can be completed in a single step, making it ideal for mobile observations with a car.

    For more information about the SXG-HAL130 Aluminum Tripod.

  • Accessories that support Astronomical Observations

    SXP2 Mount Case (sold separately)

    This is a storage case for the SXP2WL or SXP2 equatorial mount. In addition to the mount itself, it can also hold small accessories and parts such as the Wireless Unit, cables, and an AC adapter.
    The equatorial mount can be stored with the dovetail-plate mounting block (sold separately) attached. *Counterweights cannot be stored.

    Tube & Tripod Bag 100 (sold separately)

    It can accommodate either the AX103S optical tube or the SXG-HAL130 tripod, making it suitable for both mobile observations and convenient home storage.

Specifications

Optical Tube Part

  • Objective Lens (Primary Mirror) / Effective Aperture
    200mm Parabolic mirror, Multi-Coated
  • Focal Length (Focal Ratio F)
    800mm(F4)
  • Resolution・Limiting Magnitude
    0.58 arc sec., 13.3 mag.816x unaided eye
  • Size・Weight
    Length 700mm, outer diameter 232mm, 7.2kg (Main body 5.3kg)
  • Finder Scope
    7x50mm finderscope II with dark-field illumination (detachable illumination unit), Actual field of view 7°

Mount Part

  • Mount Type
    SXP2 Equatorial Mount WL

Eyepiece Part

  • Focusing System
    Rack and Pinion
  • Threads / Visual Back
    Screw-in / 60mm, 42mm T-ring screwPush-fit: 31.7mm
  • Eyepiece (31.7mm barrel)
    SLV20mm (40x, 75min. actual field of view)SLV5mm (160x, 19min. actual field of view)

Tripod

  • Material・Form
    Large hexagonal aluminum two-stage extension legs (one-touch type)
  • Size・Weight
    Length 807⇔1,299mm Height (from ground) 730⇔1,156mmSetting radius 460⇔706mm 5.5kg

Others

  • Main Accessories
    Dovetail-plate Mounting block, parts case,Counterweight 1.9kg x 1, 3.7kg x 1
  • Solar Observation
    No
  • Weight
    32.0kg (excluding eyepiece)

セット内容

  • R200SS OTA
  • SXP2 Equatorial Mount WL
  • SXG-HAL130 Tripod
  • Dovetail-plate Mounting block
  • Eyepiece SLV20mm
  • Eyepiece SLV5mm

Accessories

  • Counterweight 1.9kg x 1
  • Counterweight 3.7kg x 1
  • Parts Case
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
