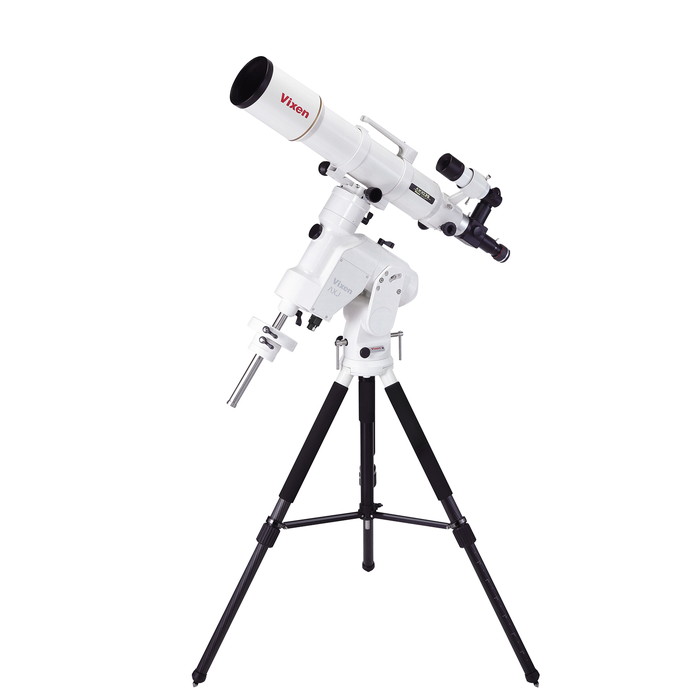

Vixen Telescope AXJWL-AX103S

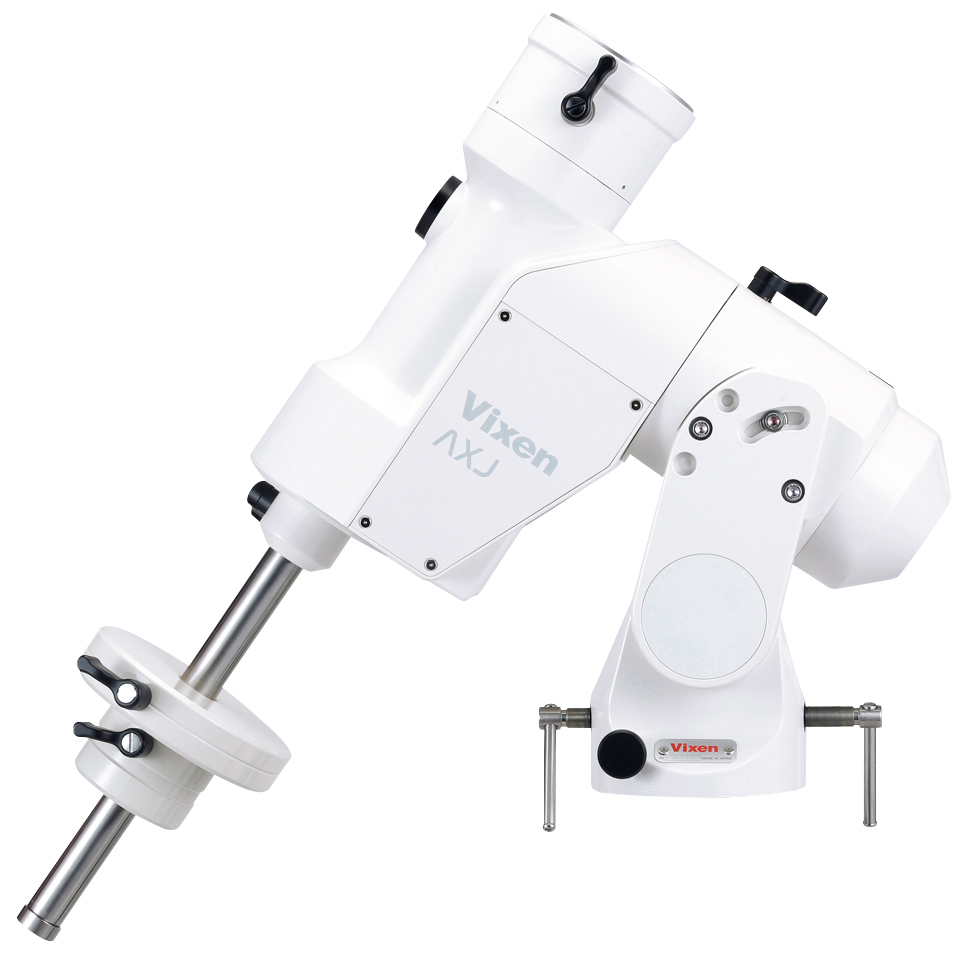

AXJWL Equatorial Mount: High Rigidity and Precision inherited from the AXD, now made more accessible!

With high rigidity and precision rivaling our flagship AXD2 equatorial mount WL, the AXJWL features a lightweight body that can be mounted on the standard SX series tripod, the SXG-HAL130. It has been updated for even greater ease of use, now equipped with the new "Wireless Unit" for wireless operation, making advanced astronomical observation more accessible than ever.

Learn more about the AXJ equatorial mount WL. Click here.

Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

A "Wireless Unit" is included as standard, enabling you to control your equatorial mount with your smartphone or tablet. By installing the free dedicated smartphone app "STAR BOOK Wireless" on your smartphone, you can use it as a controller.

The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

STAR BOOK Wireless

App StoreGoogle Play

Wireless Unit

Product page
Notice Regarding Wi-Fi Connection for Wireless Unit Users

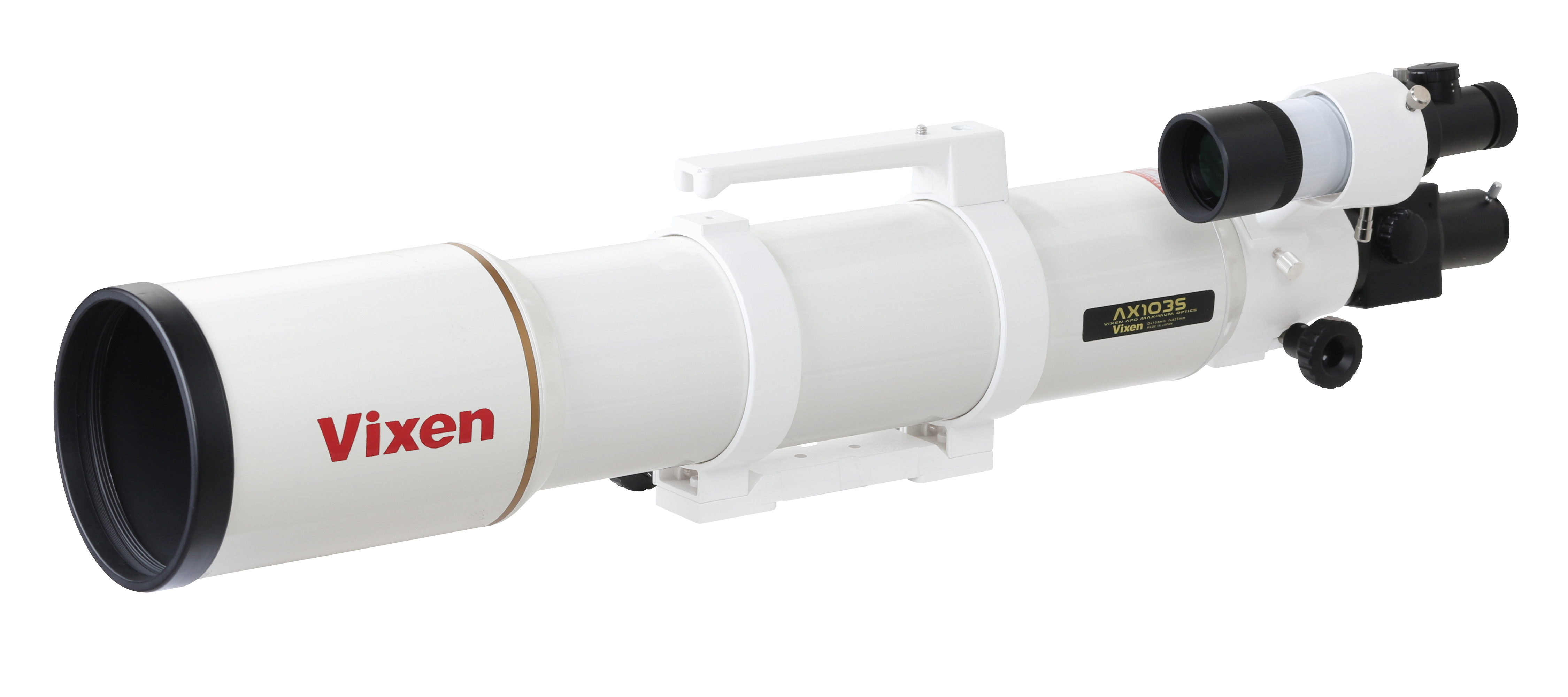

AX103S Photo-visual Optical Tube that excels in both Astrophotography and Visual Observation

A photo-visual refractor featuring a triplet objective lens combined with a built-in field flattener lens. By placing an SD glass element at the center of the objective lens unit, it achieves exceptional chromatic aberration correction, resulting in sharp, clear images.

Additionally, the fourth objective lens (corrector lens) ensures that star images remain as sharp as 20 microns at the edge of a field of view. With the adoption of numerically controlled Precision Multicoating, light transmission of 99.5% per surface is achieved across the 400–700 nm wavelength range.

Learn more about the AX103S Optical Tube Assembly. Click here.

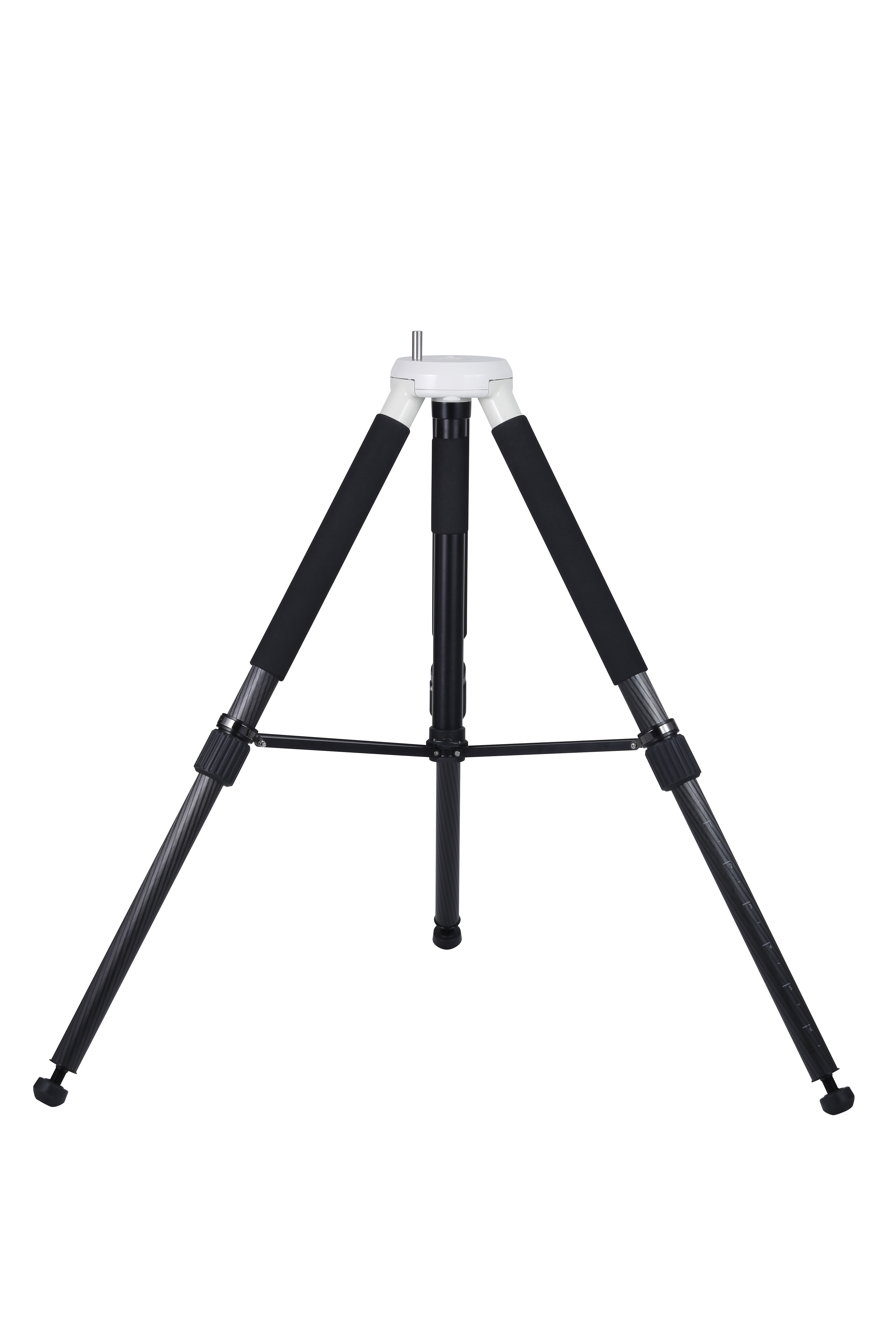

ASG-CB90 Carbon Tripod, Combining Lightweight Design with High Rigidity

The ASG-CB90 tripod is designed for comfortable use with the AXJWL equatorial mount. As a medium-sized equatorial mount, the AXJ is known for its combination of lightweight and high rigidity. To fully leverage its performance and portability, this tripod was engineered to achieve high rigidity and lightweight.

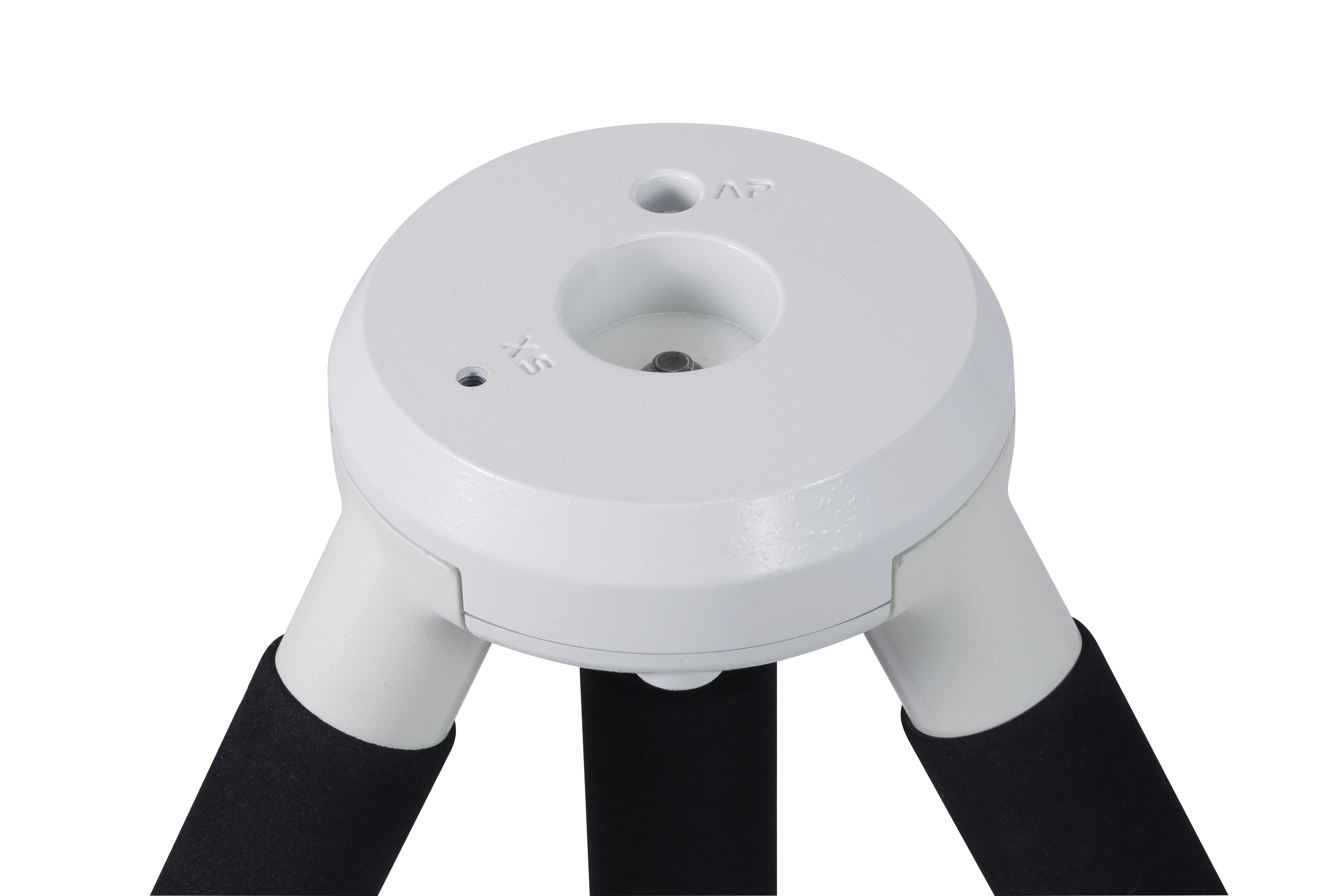

The ASG-CB90 builds on the popular APP-TL130 tripod, well-regarded for its lightweight construction. The use of carbon fiber pipes for the legs offers both strength and lightness. Additionally, by refining the tripod head structure, leg extension mechanism, and leg spreader, a highly rigid yet compact tripod has been achieved, which is capable of supporting serious astronomical observation with the AXJ mount.
