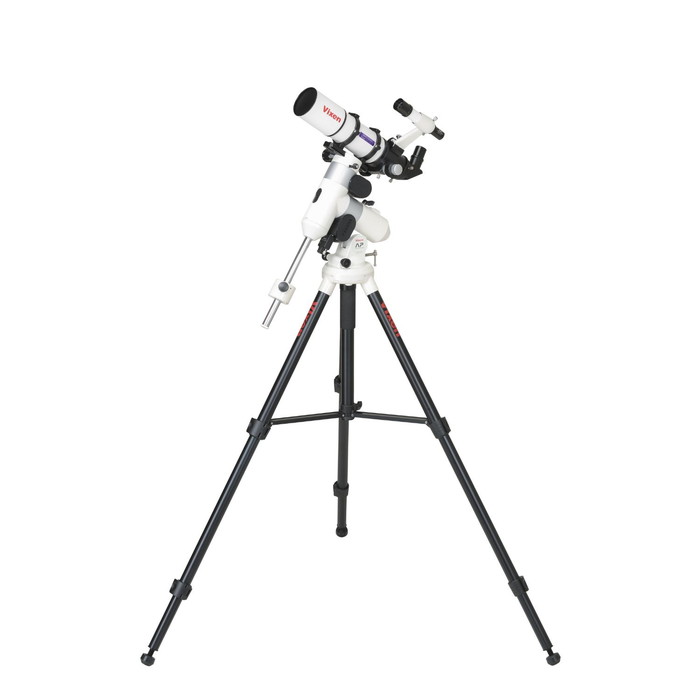

Vixen Telescope AP-SDE72SS・WL

AP-WL Mount, Suitable for Everyone from Beginners to Experienced Users

The AP-WL is a lightweight equatorial mount equipped with dual-axis motors, offering an excellent balance of strength and payload capacity. Despite belonging to a compact class, the AP-WL is proud of exceptional stability rarely found in conventional small equatorial mounts, making it suitable for serious astronomical observation. The torque (clamping force) of the friction stop control can be adjusted, allowing beginners to operate the mount intuitively by hand. As soon as a celestial object is centered in the field of view, the mount automatically tracks it using the equipped R.A. motor.

Sleek and Modern Appearance

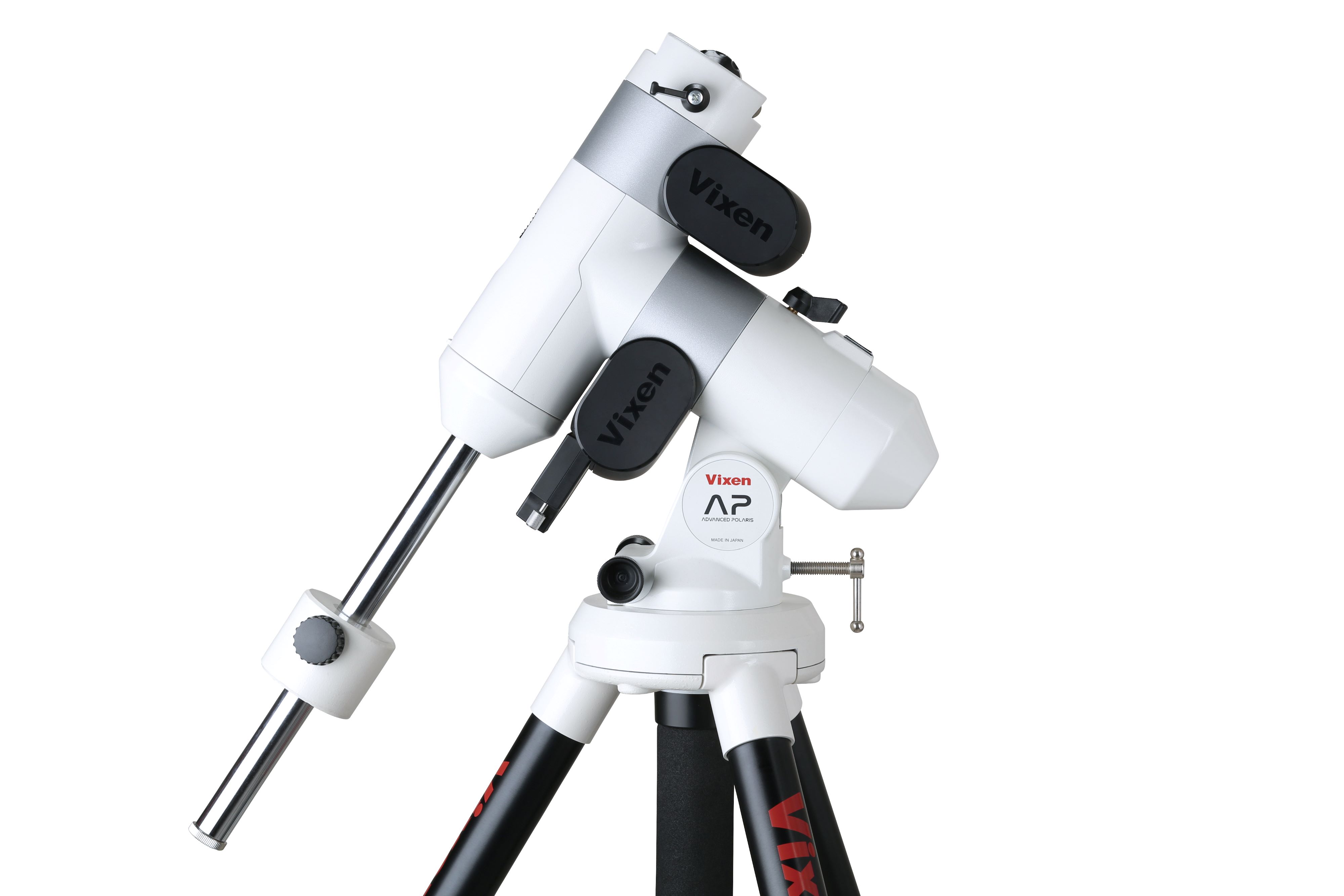

Featuring a smooth, streamlined design with minimal protrusions, it dispels the difficult-to-handle image often associated with telescopes. Combined with its lightweight body of just 4.2 kg (counterweight not included), it allows a full-fledged astronomical telescope to be handled with ease.

The internal contacts eliminate the need for external wiring, reducing the number of cords that would otherwise be exposed. This helps prevent accidents such as tripping over cords during observation.

Equipped with a Wireless Unit to control the Telescope via your Smartphone

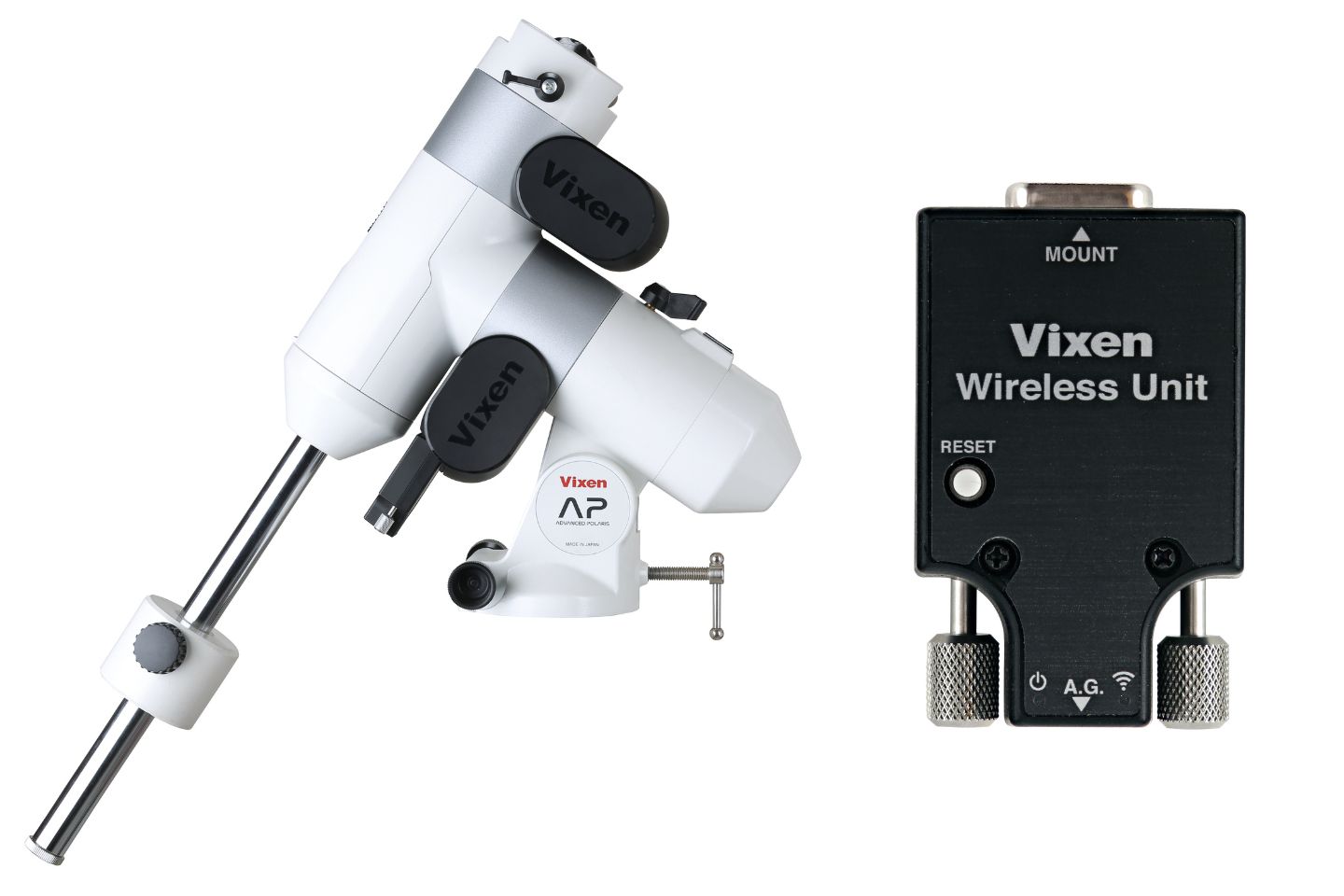

The AP-WL mount comes with a Wireless Unit for remote control as standard. By installing the free dedicated smartphone app STAR BOOK Wireless on your device, you can use it as a controller. Tapping a celestial object on the star chart displayed on the screen will allow you to operate functions such as automatic GoTo slewing*.

* During automatic GoTo slewing, the telescope moves at about 100 times the tracking speed (sidereal rate).

STAR BOOK Wireless

App Store Google Play

Wireless Unit

Product page
Notice Regarding Wi-Fi Connection for Wireless Unit Users

Intuitive Friction-stop Control

By adjusting the clamping tightness, you can manually move the telescope toward your target, allowing you to point it at objects intuitively and comfortably. (Note that the friction control and automatic slewing functions cannot be used simultaneously.)

Easy and Accurate Polar Alignment

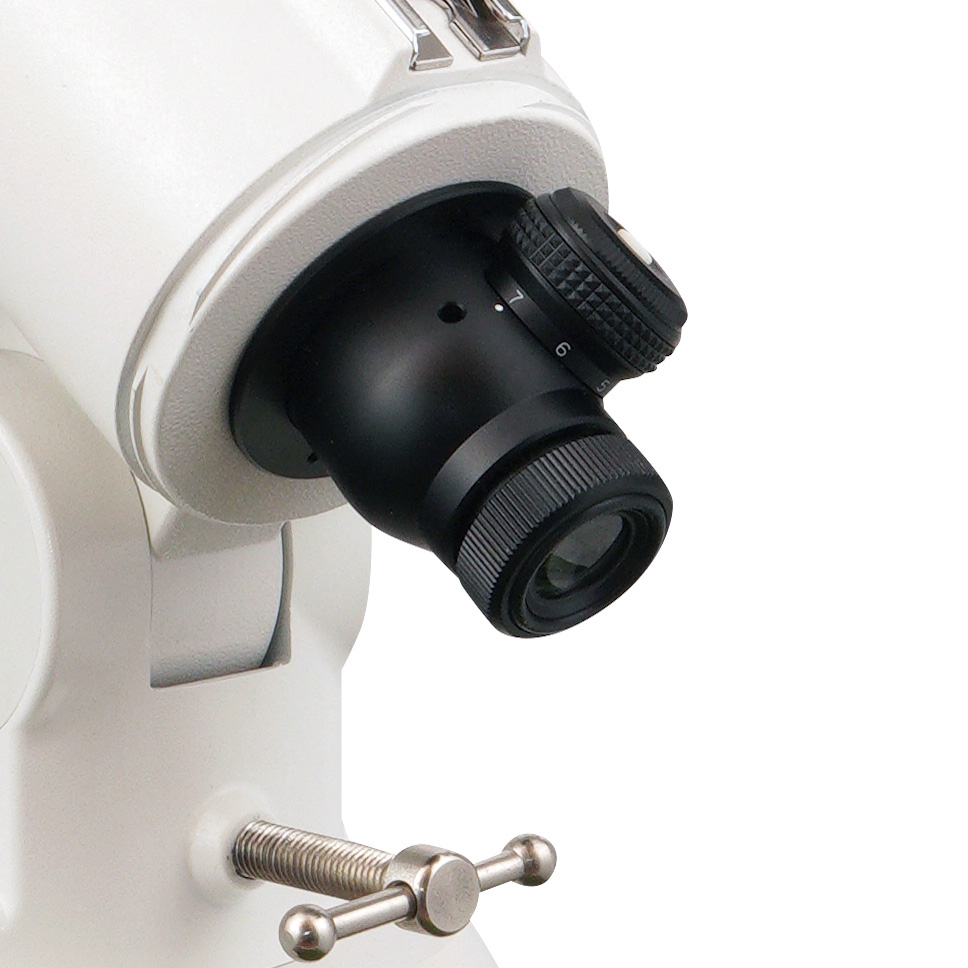

The AP mount is compatible with the polar alignment scope PF-LII (sold separately), allowing you to set the mount’s polar axis accurately and easily.

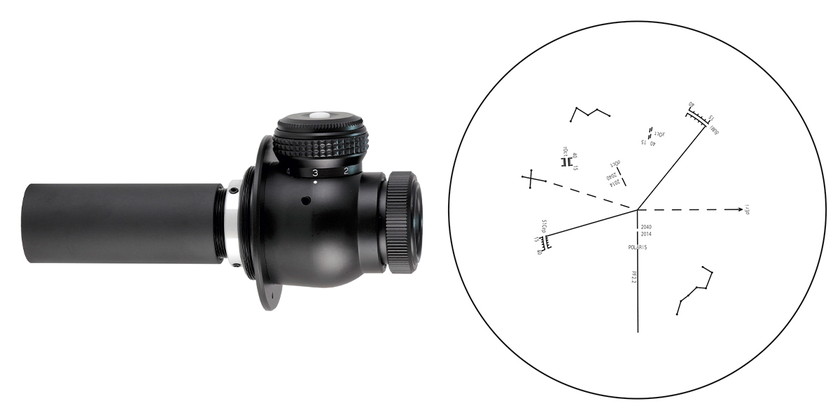

It offers a method in which three reference stars are aligned with designated positions on the scale inside the polar scope to determine the direction to the polar axis (compatible with both Northern and Southern Hemispheres).

The polar scope features built-in dark-field illumination, which makes the scale appear red against the night sky. You can adjust the brightness in 8 steps to your preferred level. It also has an automatic shut-off function to prevent battery drain from accidentally leaving the switch on.

Vixen offers a free "PFL Assist" app for smartphones and tablets, designed for use with the polar alignment scope PF-L II. The app assists with polar alignment by displaying the polar scope’s reticle on your device screen and showing its correct orientation. This allows you to align the reticle pattern of your polar scope with the alignment stars visible through it.

Quick, Rough Polar Alignment

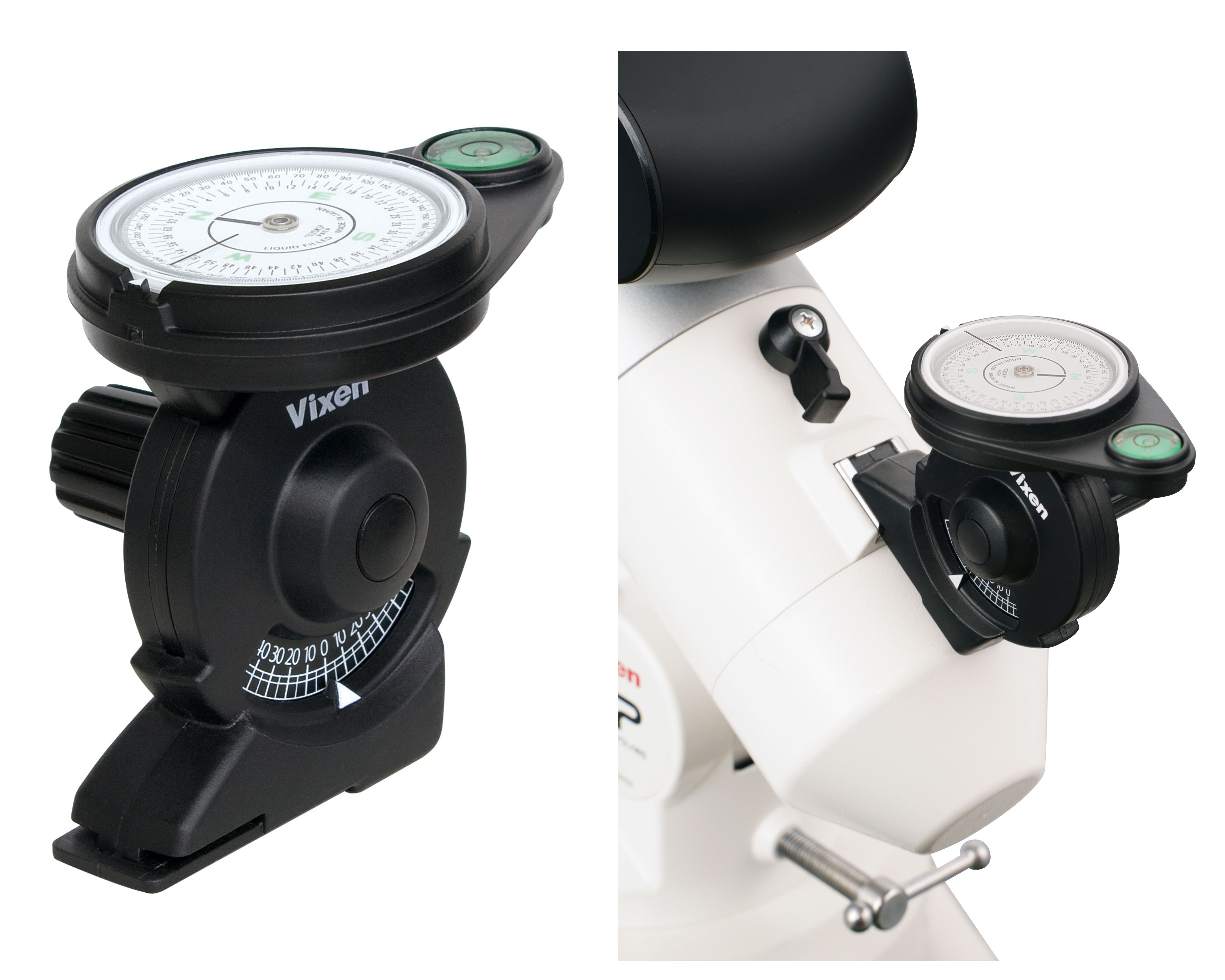

The mount is compatible with a Polar Meter (sold separately), which provides easy and rough polar alignment. With its altitude scale and magnetic compass, even beginners can quickly turn the AP mount to the celestial pole.

For more precise polar alignment, an optional polar alignment scope PF-LII, can be used by referencing Polaris. However, the Polar Meter is particularly effective in locations where Polaris is behind obstructions and not visible.

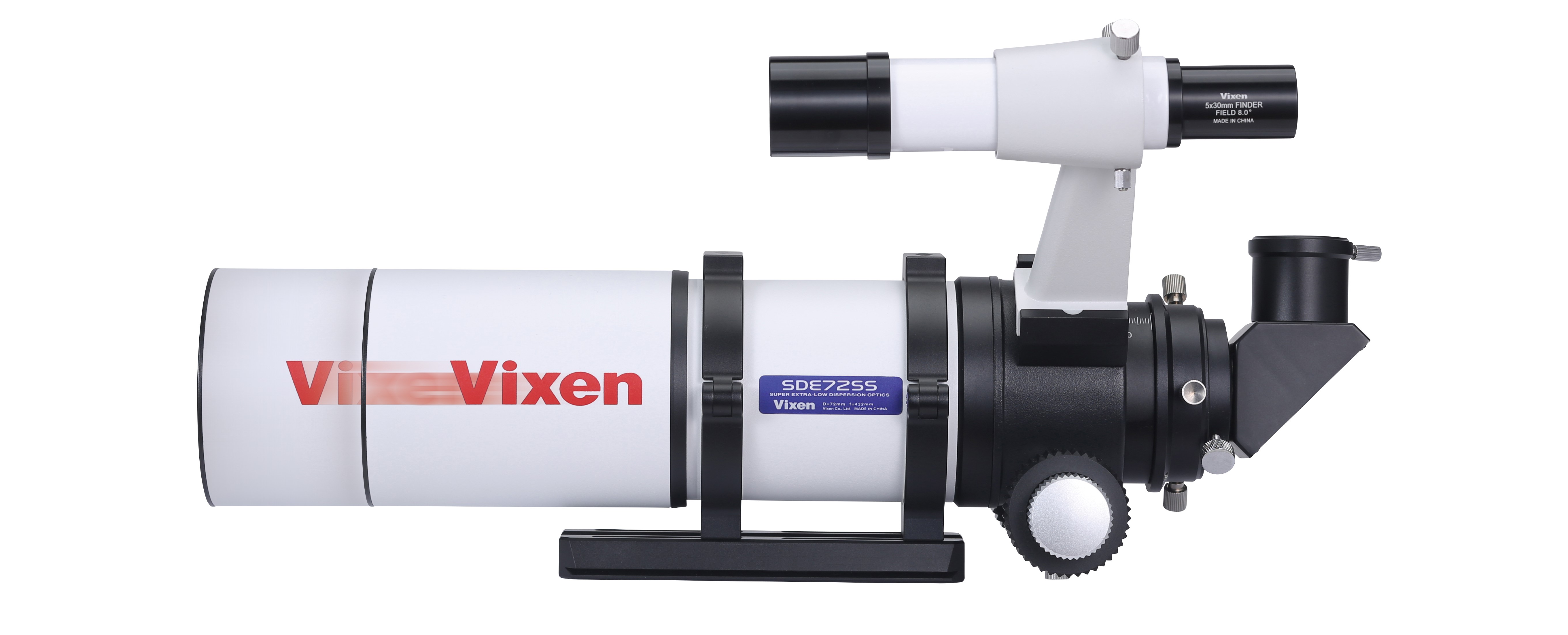

SDE72SS Optical Tube Assembly

The SD apochromatic lens suppresses chromatic aberration to an imperceptible level. Despite its short optical tube, the SDE72SS not only delivers sharp images in visual observation but also produces impressive astrophotographs of nebulae and star clusters when used with a dedicated focal reducer (sold separately).

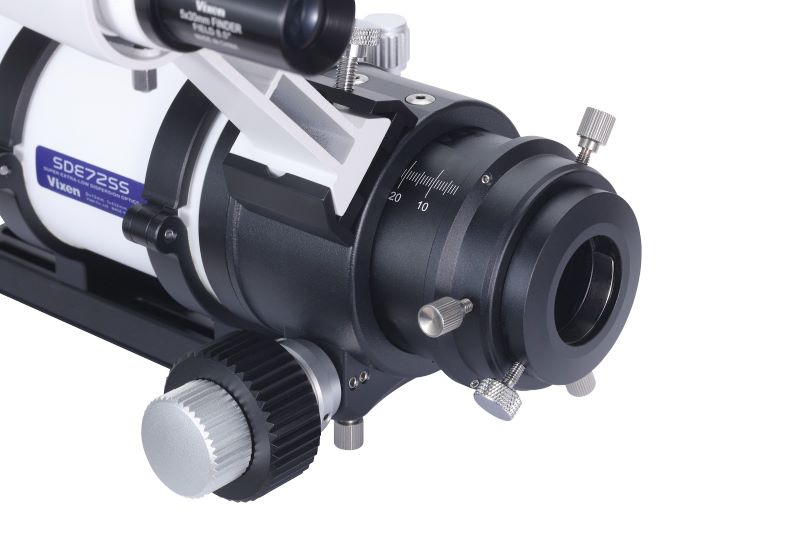

It features a dual-speed focuser that enables both coarse and fine adjustments, providing precise focusing for imaging.

The optical tube measures 365 mm in length and can be shortened to 307 mm when the dew shield is retracted. The optical tube weighs approximately 2.5 kg (net weight 2.2 kg) and is suited when combined with the AP mount.

For more information about the SDE72SS optical tube assembly, click here.

APP-TL130 Tripod

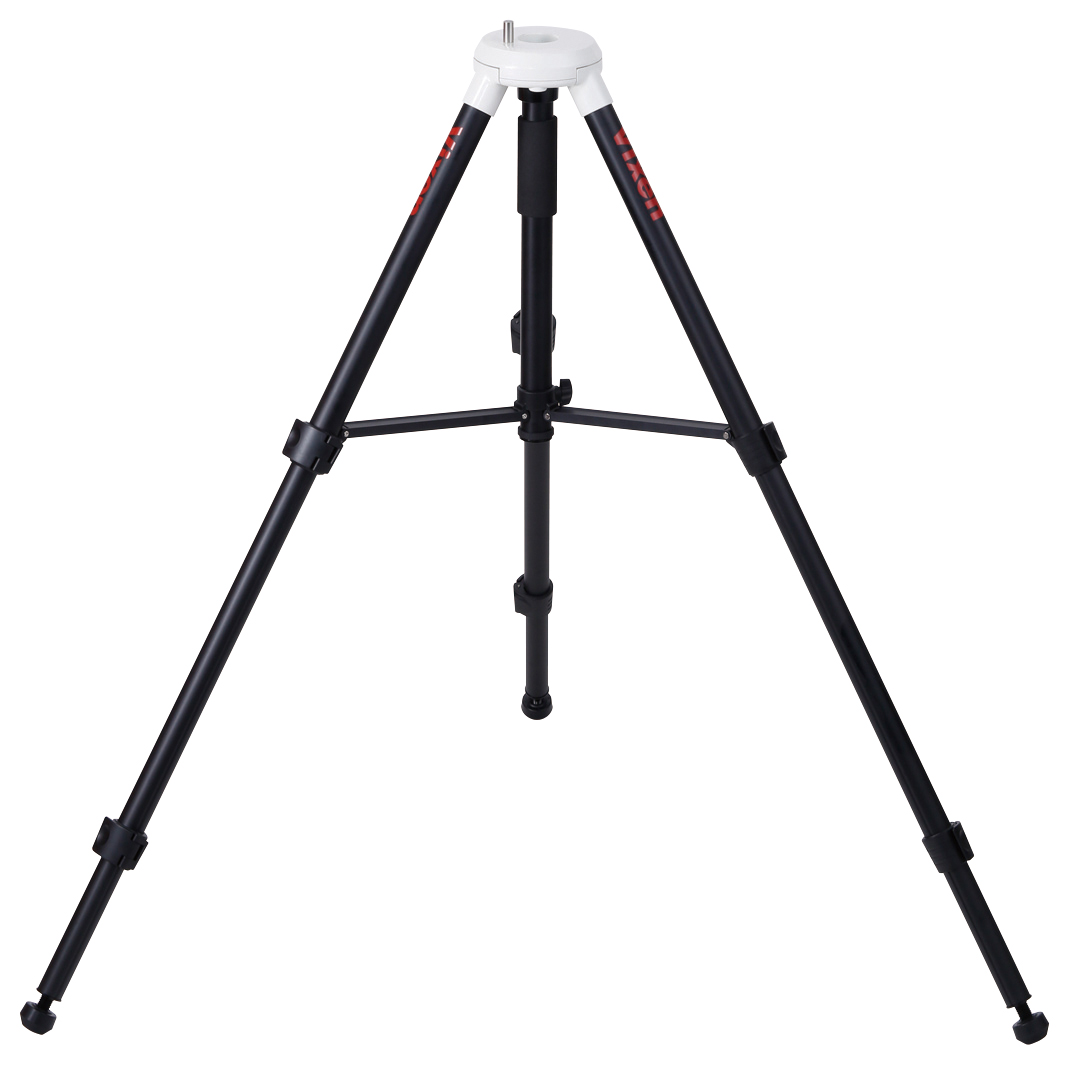

The compact APP-TL130 tripod features adjustable telescopic legs from 60 cm to 130 cm long, combining the portability of a camera tripod with the stability of an astronomical telescope tripod. The leg tips can be easily switched between metal spikes and rubber-capped feet by twisting them, reducing the risk of floor damage when used indoors.

Tool-free Quick Setup

No tools are required for assembly or disassembly, allowing quick and effortless setup and takedown at the observation site.
