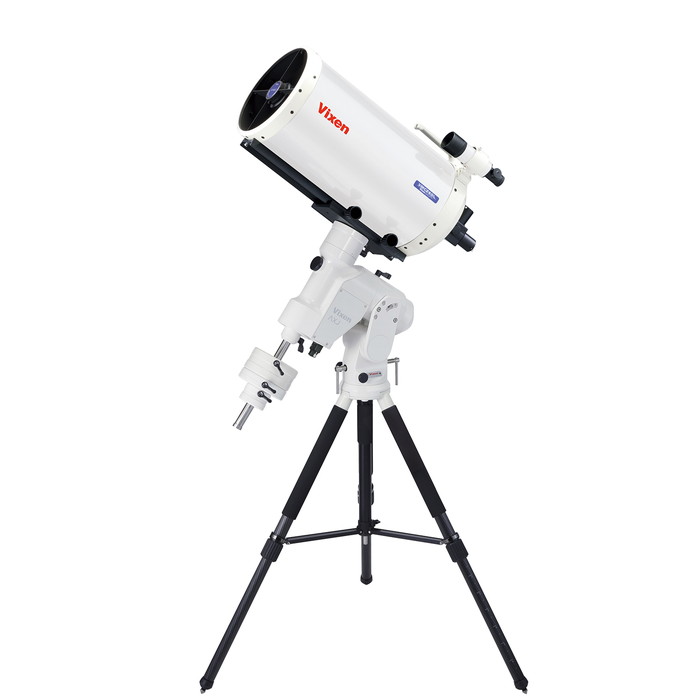

Vixen Telescope AXJWL-VMC260L(WT)

Vixen Telescope AXJWL-VMC260L(WT) —
Vixen Telescope AXJWL-VMC260L(WT) —

loading

  • —

Suggested retail price: Contact local dealer

JAN
4955295369591

The set pairs a high-end AXJWL equatorial mount—offering performance comparable to the flagship AXD2—with a large-aperture VMC260L(WT) catadioptric optical tube.

The set includes a VMC260L (WT) optical tube incorporating Vixen’s original optical design —compact yet offering a large 260 mm aperture—and a high-end AXJWL equatorial mount, whose performance nearly rivals that of the AXD2WL. With its large aperture, excellent light-gathering power, and resolving capability, the VMC260L is ideal for observing faint stars at high magnifications. Perfect for serious mobile astronomy and astrophotography.

Vixen Telescope AXJWL-VMC260L(WT) Description

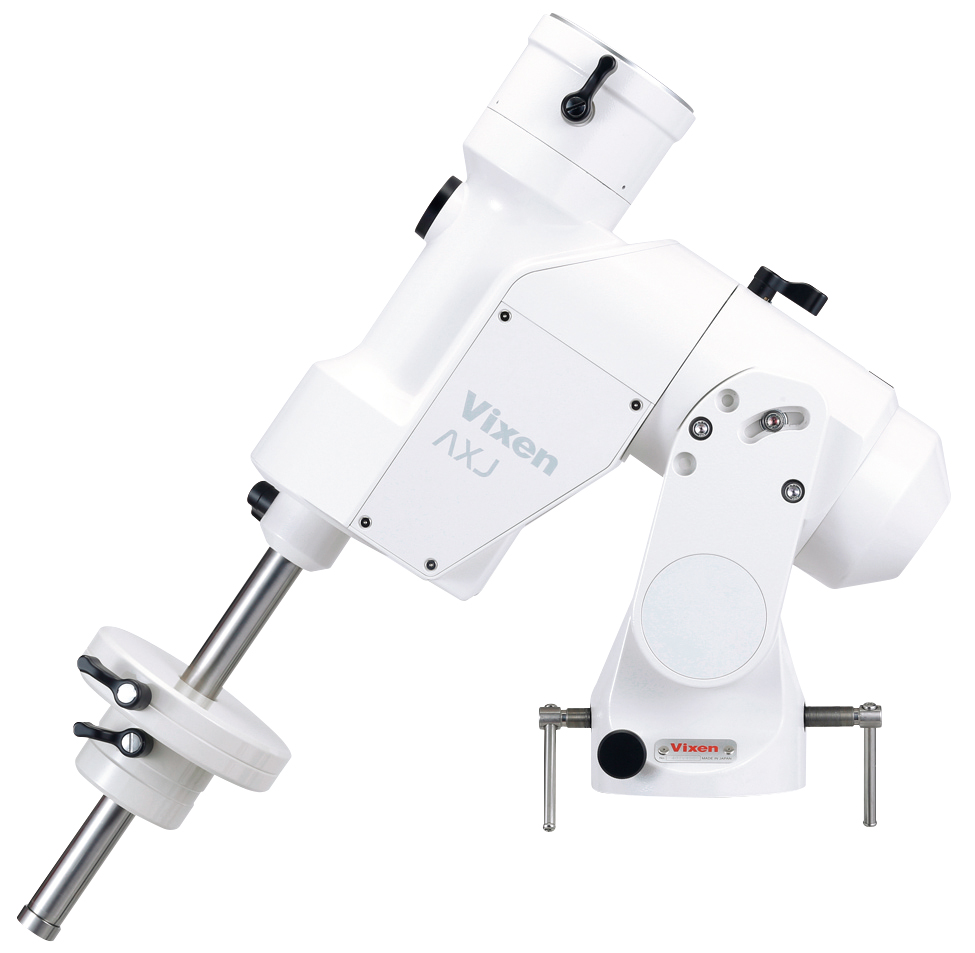

  • AXJWL Equatorial Mount: High Rigidity and Precision inherited from the AXD, now made more accessible!

    With high rigidity and precision rivaling our flagship AXD2 equatorial mount WL, the AXJWL features a lightweight body that can be mounted on the standard SX series tripod, the SXG-HAL130. It has been updated for even greater ease of use, now equipped with the new "Wireless Unit" for wireless operation, making advanced astronomical observation more accessible than ever.

    Learn more about the AXJ equatorial mount WL, click [here].

  • Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

    A "Wireless Unit" is included as standard, enabling you to control your equatorial mount with your smartphone or tablet. By installing the free dedicated smartphone app "STAR BOOK Wireless" on your smartphone, you can use it as a controller.

    The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

    STAR BOOK Wireless

    App Store Google Play

    Wireless Unit

    Product page
    Notice Regarding Wi-Fi Connection for Wireless Unit Users

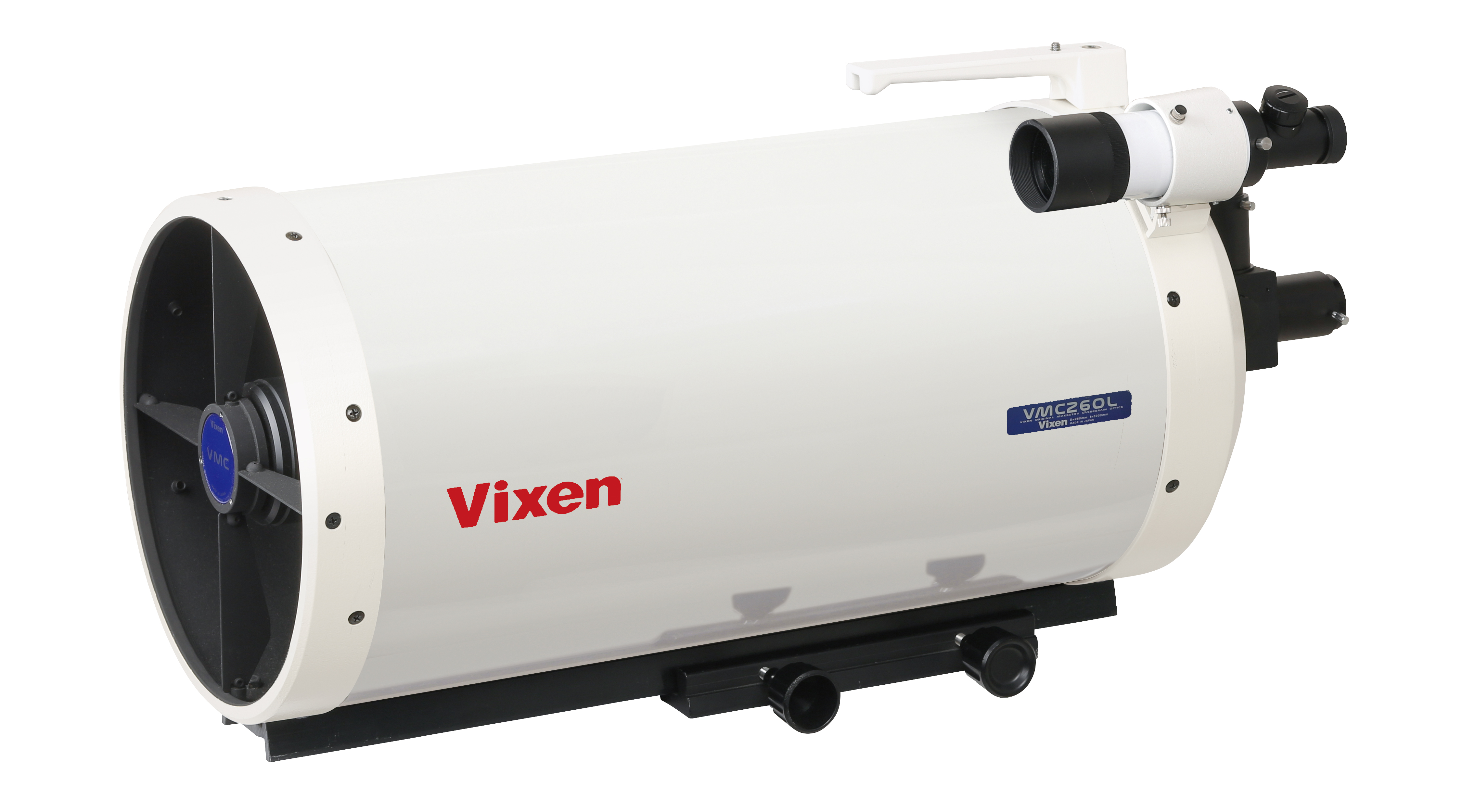

  • VMC260L Perfect for Planetary Observation and for Viewing or Photographing faint Deep-sky Objects

    With a 3000 mm focal length, this catadioptric optical tube enables planetary observation at high magnification. Its primary mirror focusing system keeps the eyepiece’s position stationary, ensuring stable performance when using a DSLR or CMOS camera. The large 260 mm aperture delivers stunning views of deep-sky objects.

    Learn more about the VMC260L(WT) Optical Tube Assembly, click [here].

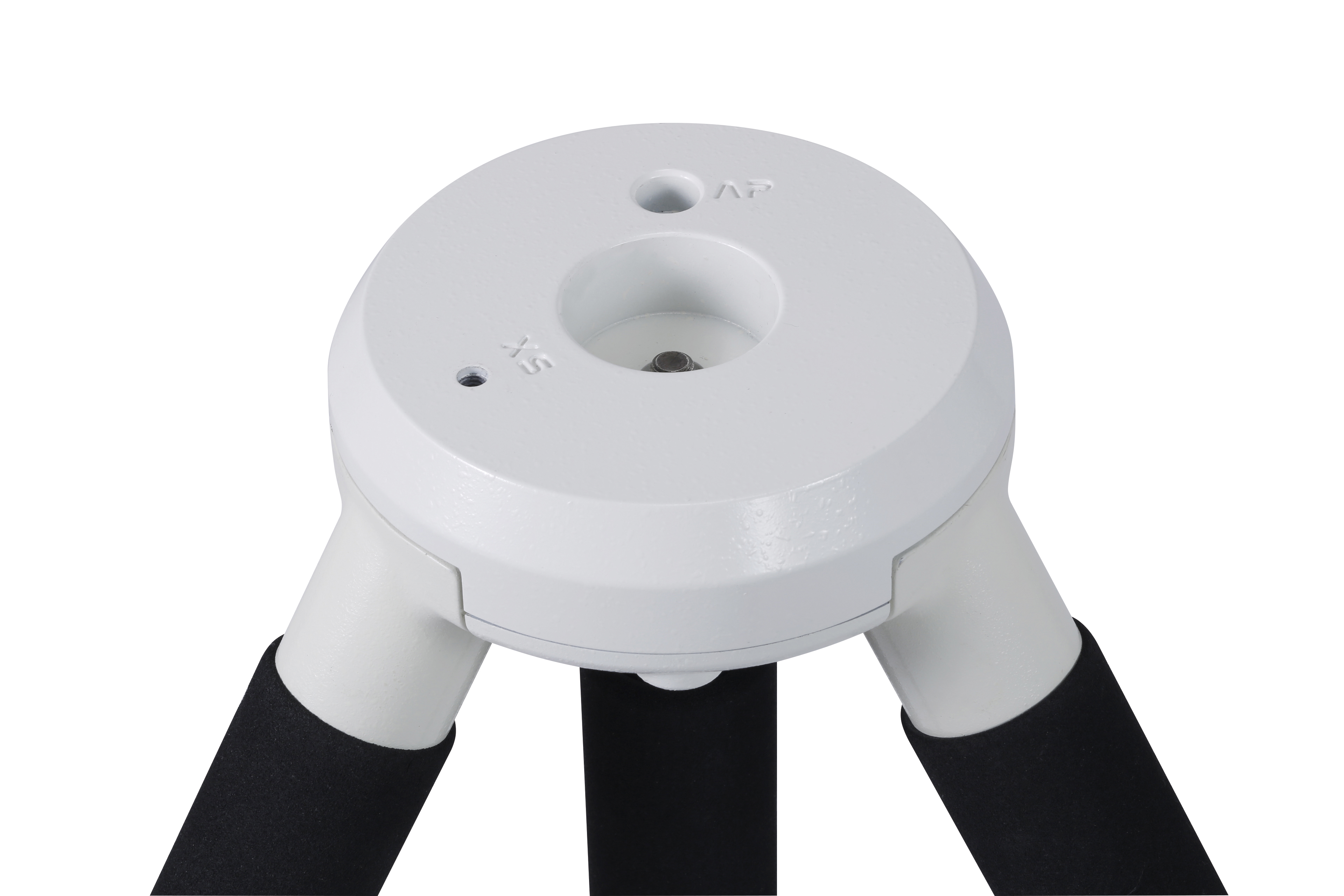

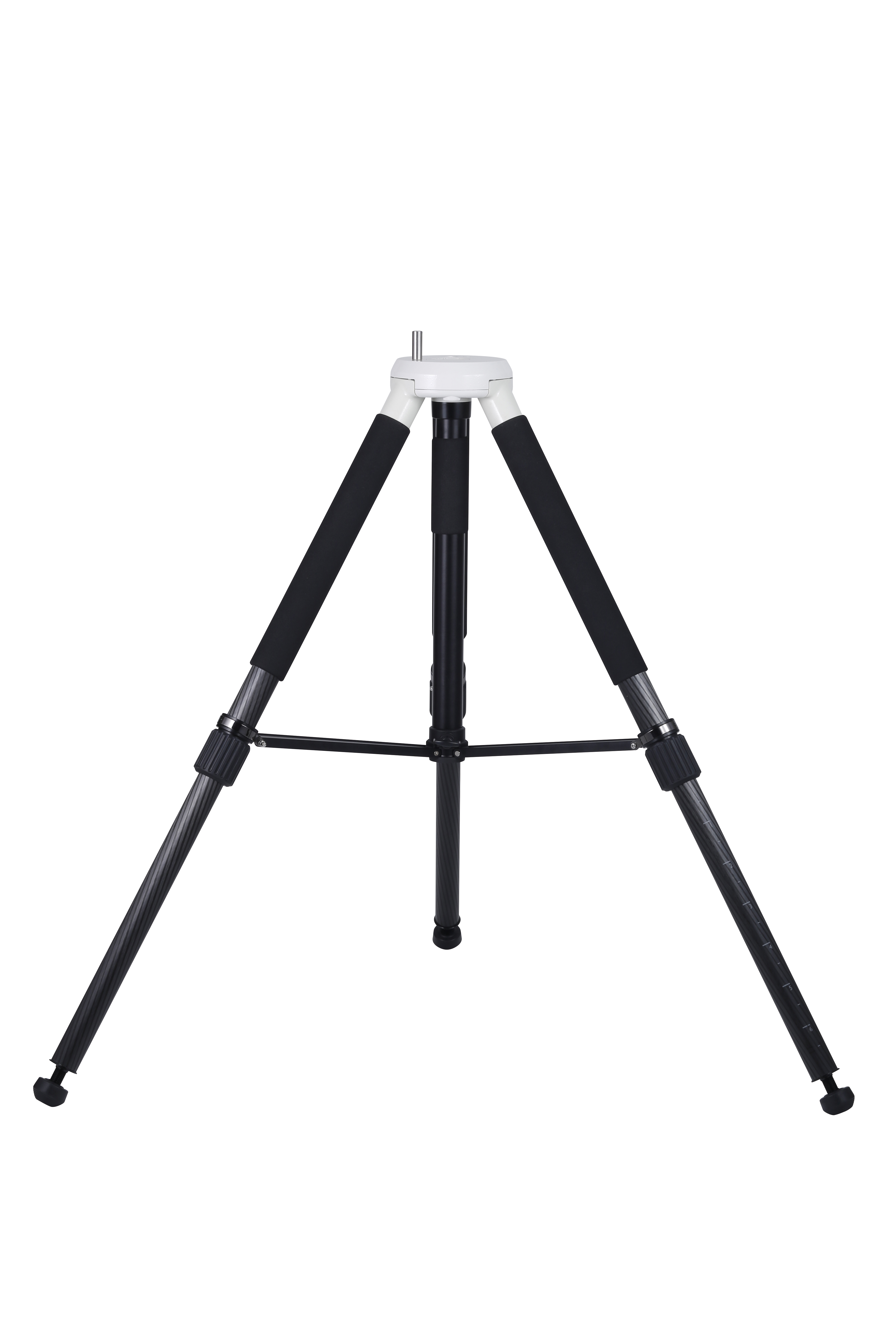

  • ASG-CB90 Carbon Tripod, Combining Lightweight Design with High Rigidity

    The ASG-CB90 tripod is designed for comfortable use with the AXJWL equatorial mount. As a medium-sized equatorial mount, the AXJ is known for its combination of lightweight and high rigidity. To fully leverage its performance and portability, this tripod was engineered to achieve high rigidity and lightweight.

    The ASG-CB90 builds on the popular APP-TL130 tripod, well-regarded for its lightweight construction. The use of carbon fiber pipes for the legs offers both strength and lightness. Additionally, by refining the tripod head structure, leg extension mechanism, and leg spreader, a highly rigid yet compact tripod has been achieved, which is capable of supporting serious astronomical observation with the AXJ mount.

Specifications

Optical Tube Part

  • Objective Lens（Primary Mirror）／Effective Aperture
    260mm / Precision spherical mirror, dielectric multi-coated
  • Focal Length（Focal Ratio F）
    3,000mm (F11.5)
  • Resolution・Limiting Magnitude
    0.45 arc sec., 13.8 mag.
  • Light Gathering Power
    1,380x unaided eye
  • Size・Weight
    Length 680mm (720mm including focus knob) Outer diameter 304mm 12.1kg (main body 10kg)
  • Finderscope
    7x50mm finderscope II with dark-field illumination (detachable illumination unit), Actual field of view 7°

Mount Part

  • Mount Type
    AXJ Equatorial Mount WL

Eyepiece Part

  • Focusing System
    Primary mirror traveling
  • Threads / Visual Back
    Screw-in / 60mm, 42mm T-ring screwsPush-fit: 50.8mm*, 31.7mm (with Flip Mirror Diagonal)
  • Eyepiece（31.7mm barrel）
    Eyepiece sold separately. Please select eyepiece according to your observation purpose.

Tripod

  • Material・Type
    2-section adjustable carbon tripod (one-touch type)
  • Size・Weight
    Length 545⇔900mm Height (from ground) 510⇔815mmInstallation radius 340⇔520mm, reduced length 590mm, 3.4kg

Others

  • Main Accessories
    Dedicated mounting cradlecounterweight 1.5kg x 1, 3.5kg x 1
  • Solar Observation
    No
  • Weight
    45.1kg

Set Contents

  • VMC260L(WT) OTA
  • AXJ Equatorial Mount WL
  • ASG-CB90 Tripod
  • Power supply sold separately.
For availability of products, please contact our local dealers. The specifications are subject to change without notice.
