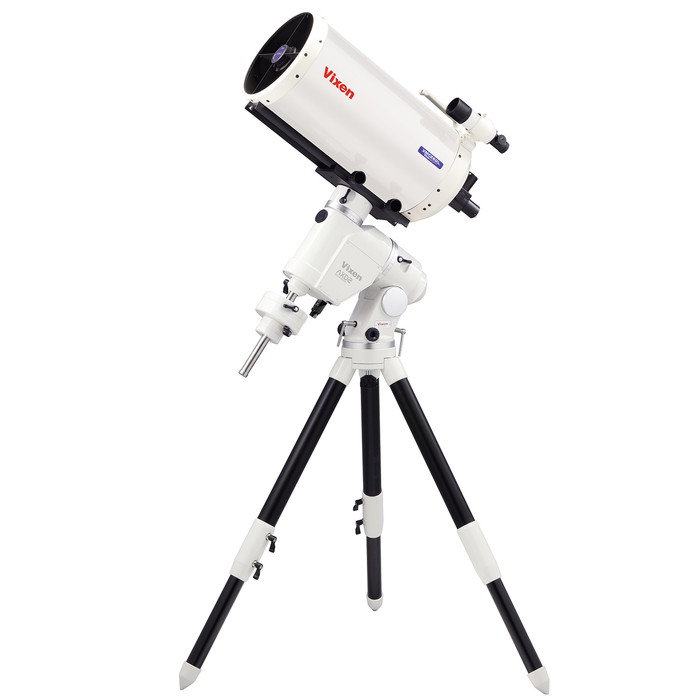

Vixen Telescope AXD2WL-VMC260L(WT)

Vixen Telescope AXD2WL-VMC260L(WT) —
Vixen Telescope AXD2WL-VMC260L(WT) —

loading

  • —

Suggested retail price: Contact local dealer

JAN
4955295369645

A set featuring an AXD2WL, a top-of-the-line equatorial mount, and a large-aperture VMC260L catadioptric optical tube.

The set includes a VMC260L (WT) optical tube incorporating Vixen’s original optical design —compact yet offering a large 260 mm aperture—and a high-end AXJWL equatorial mount, whose performance nearly rivals that of the AXD2WL. With its large aperture, excellent light-gathering power, and resolving capability, the VMC260L is ideal for observing faint stars at high magnifications. Perfect for serious mobile astronomy and astrophotography.

Vixen Telescope AXD2WL-VMC260L(WT) Description

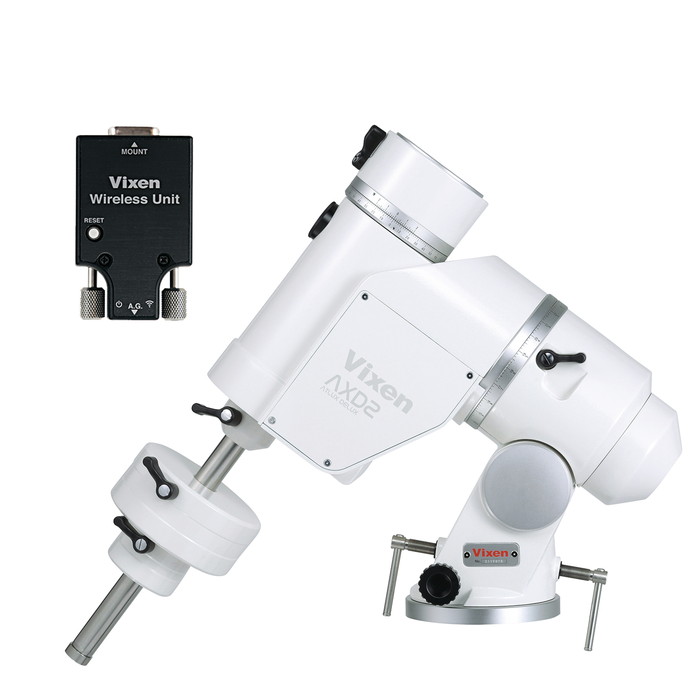

  • AXD2WL Vixen’s Flagship Model, offering a Tracking Accuracy of ±2.8 Arc-second and a Maximum Payload of 30 kg

    The pinnacle of Vixen’s pursuit of equatorial mount performance. It delivers the rigidity, precision, functionality, and reliability demanded by advanced users, while maintaining a design and operation that are approachable for beginners.
    Additionally, it has been renewed with the new “Wireless Unit,” allowing control via a smartphone app for even greater ease of use.

    Learn more about the AXD2 Equatorial Mount WL. Click here.

  • Wireless Unit Included! Cable-Free, Comfortable Celestial Navigation

    A "Wireless Unit" is included as standard, enabling you to control your equatorial mount with your smartphone or tablet. By installing the free dedicated smartphone app "STAR BOOK Wireless" on your smartphone, you can use it as a controller.

    The "STAR BOOK Wireless" smartphone app inherits the highly acclaimed interface of the STAR BOOK TEN controller, renowned for its ease of use. Simply view the star chart displayed on your screen, tap the celestial object you want to observe, and the mount will automatically slew to it and begin tracking. Following the intuitive display design of the STAR BOOK TEN, the app is easy for anyone to use without difficulty.

    STAR BOOK Wireless

    App Store Google Play

    Wireless Unit

    Product page
    Notice Regarding Wi-Fi Connection for Wireless Unit Users

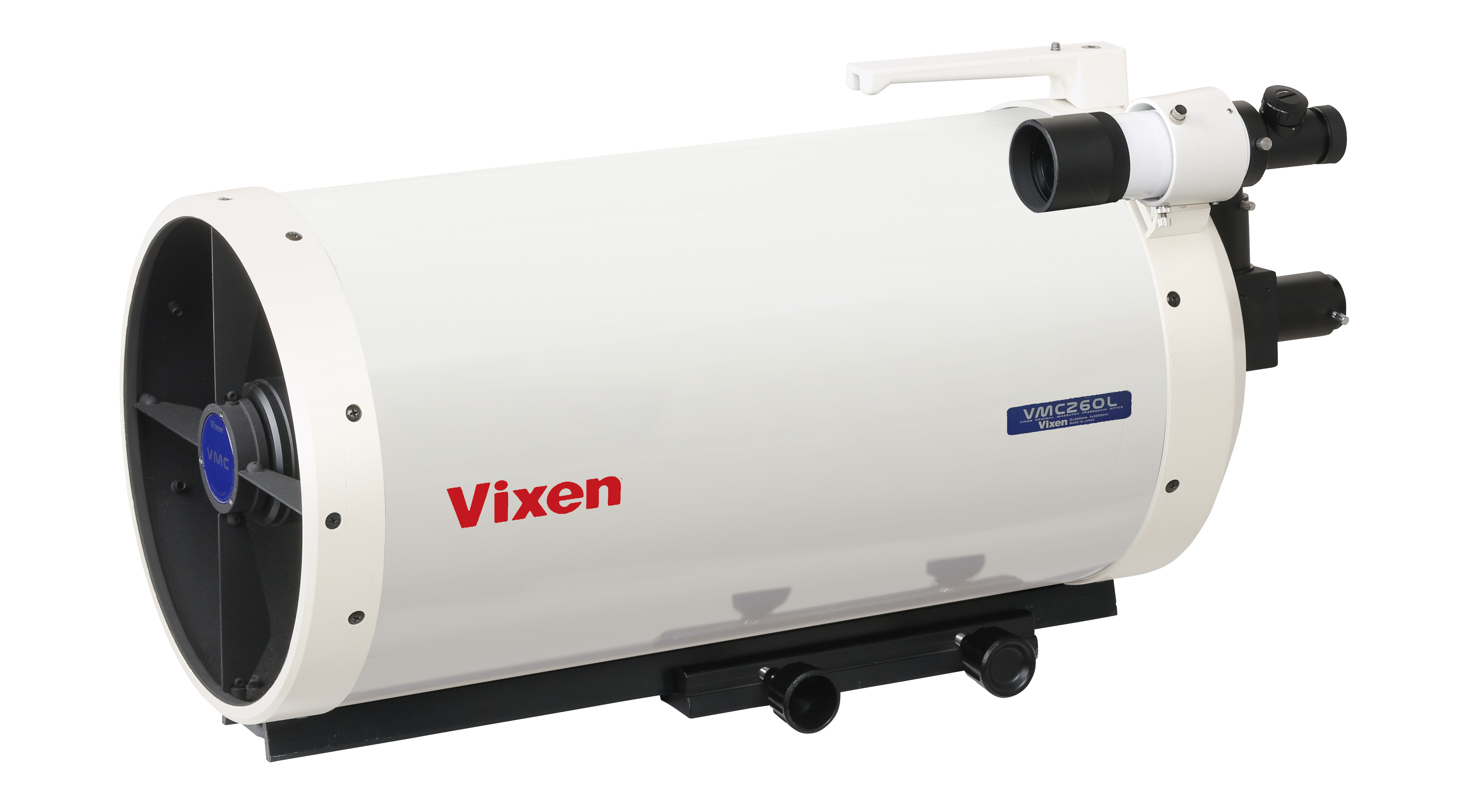

  • VMC260L Perfect for Planetary Observation and for Viewing and Photographing faint Deep-sky Objects

    With a 3000 mm focal length, this catadioptric optical tube enables planetary observation at high magnification. Its primary mirror focusing system keeps the eyepiece’s position stationary, ensuring stable performance when using a DSLR or CMOS camera. The large 260 mm aperture delivers stunning views of deep-sky objects.

    Learn more about the VMC260L(WT) Optical Tube Assembly. Click here.

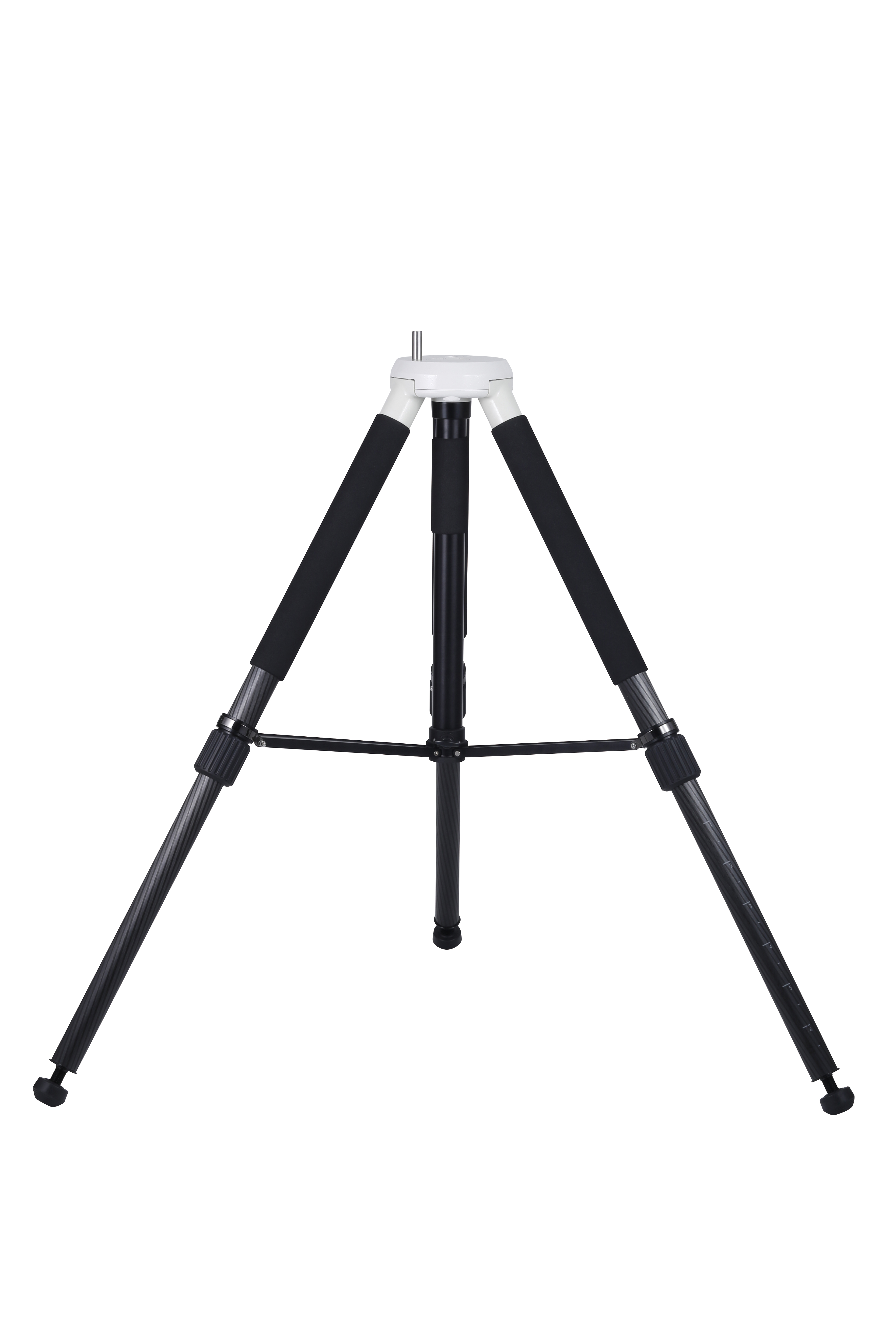

  • Large Tripod designed specifically for the AXD series, providing a Stable Platform for Observations

    This 2-section adjustable aluminum tripod is designed for the AXD mount series. To reliably support heavy equipment, it features a high-torsional-rigidity structure at the connection between the tripod head and legs, securely clamping the trunnion portion of each leg. Additionally, the tripod legs are large 55mm pipes, providing ample strength for even more stable observations.

Specifications

Optical Tube Part

  • Objective Lens（Primary Mirror）／Effective Aperture
    260mm / Precision spherical mirror, dielectric multi-coated
  • Focal Length（Focal Ratio F）
    3,000mm (F11.5)
  • Resolution・Limiting Magnitude
    0.45 arc sec., 13.8 mag.
  • Light Gathering Power
    1,380x unaided eye
  • Size・Weight
    Length 680mm (720mm including focus knob) Outer diameter 304mm 12.1kg (main body 10kg)
  • Finderscope
    7x50mm finderscope II with dark-field illumination (detachable illumination unit), Actual field of view 7°

Mount Part

  • Mount Type
    AXD2 Equatorial Mount WL

Eyepiece Part

  • Focusing System
    Primary mirror traveling
  • Threads / Visual Back
    Screw-in / 60mm, 42mm T-ring screwsPush-fit: 50.8mm*, 31.7mm (with Flip Mirror Diagonal)
  • Eyepiece（31.7mm barrel）
    Eyepiece sold separately. Please select eyepiece according to your observation purpose.

Tripod

  • Material・Type
    Large aluminum two-section adjustable pipes, 55mm in diameter
  • Size・Weight
    Length 760⇔1,018mm Height (from ground) 690⇔915mmInstallation radius 440⇔570mm 10.3kg

Others

  • Main Accessories
    Dedicated mounting cradleCounterweight 1.5kg x 1, 7kg x 1
  • Solar Observation
    No
  • Weight
    55.9kg

Set Contents

  • VMC260L(WT) OTA
  • AXD2 Equatorial Mount WL
  • AXD-TR102 Tripod

* Power supply sold separately.

For availability of products, please contact our local dealers. The specifications are subject to change without notice.
